Entertainment Component Views

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

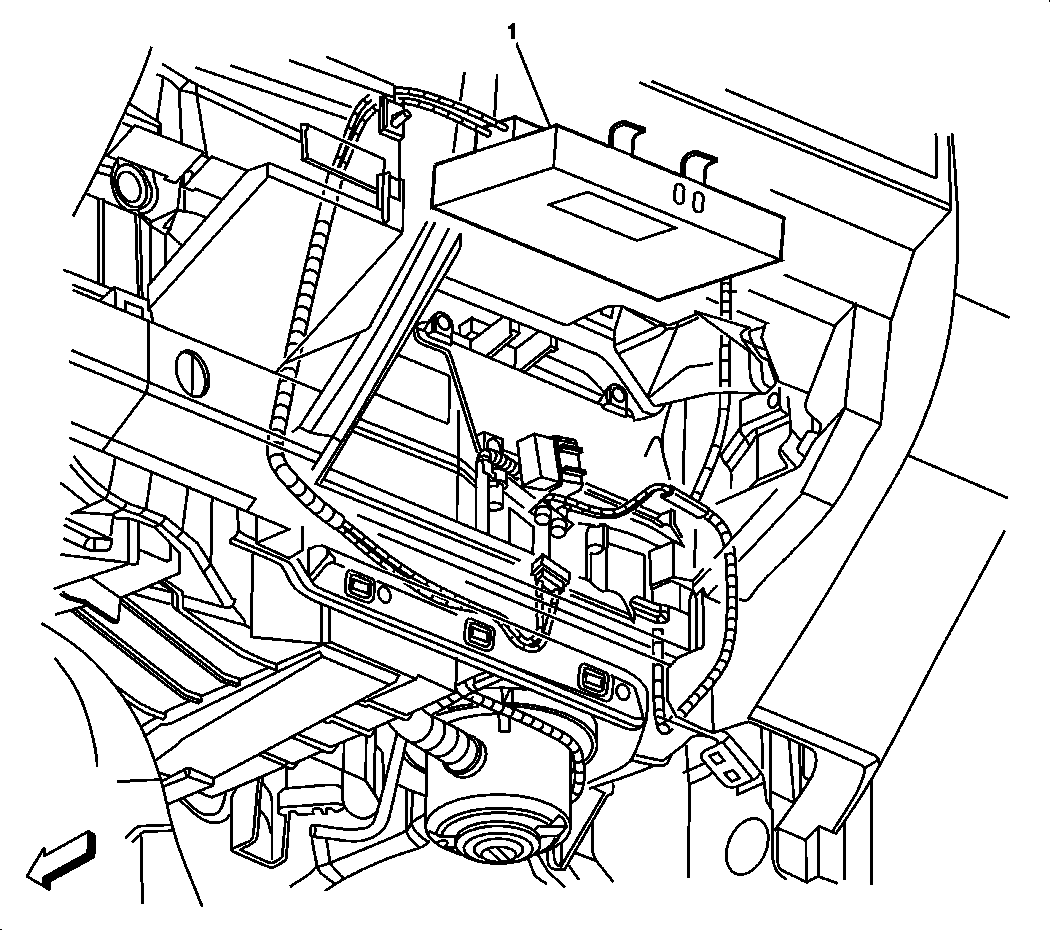

Fig 1: Digital Radio Receiver Component View (U2K)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver

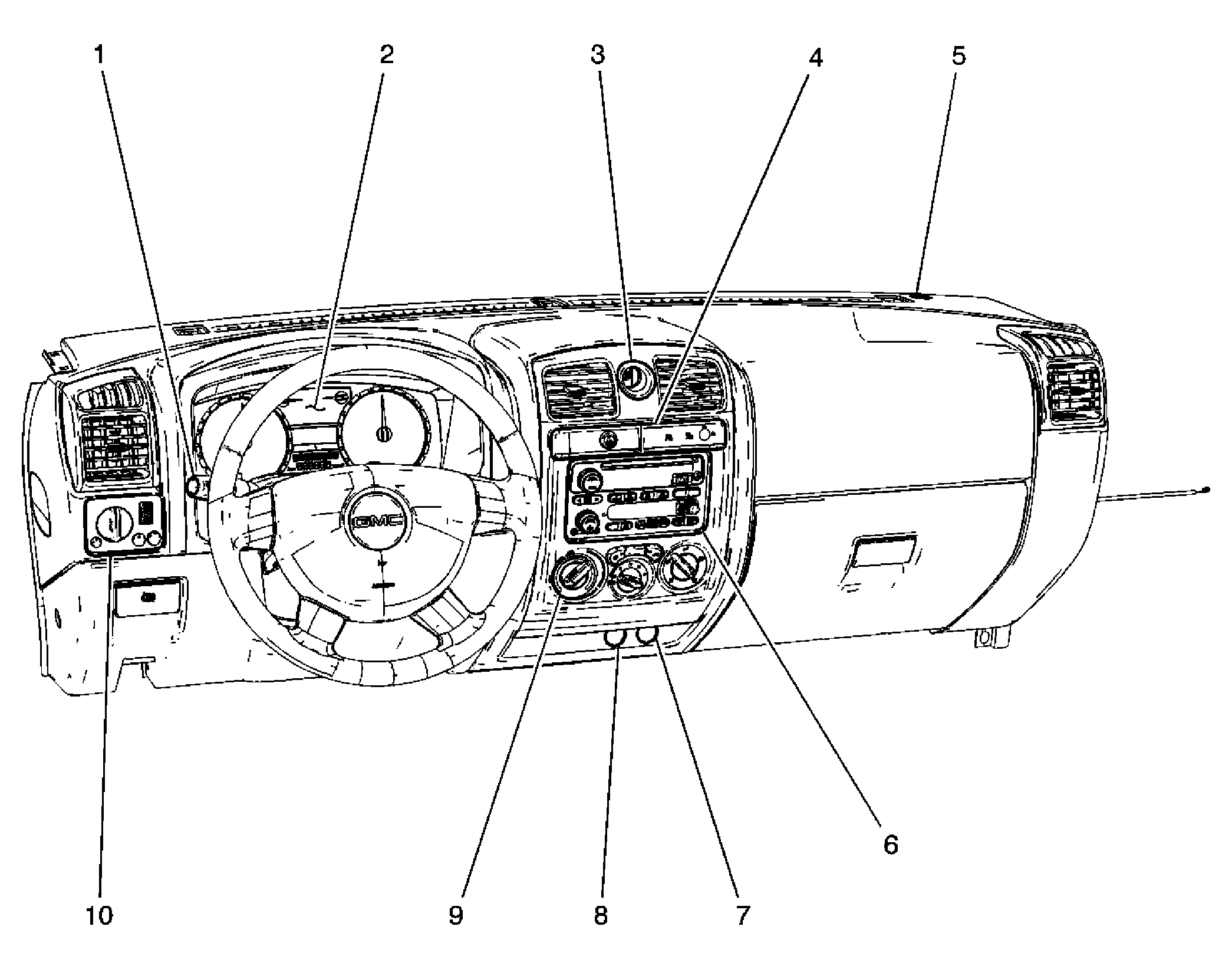

Fig 2: Center Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Instrument Panel Cluster (IPC)
3	Hazard Switch
4	Accessory Switch
5	Ambient Light Sensor
6	Radio
7	Auxiliary Power Outlet 2
8	Auxiliary Power Outlet 1
9	HVAC Control Module
10	Headlamp and Panel Dimmer Switch

Fig 3: Driver Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator - Driver
2	Door Lock and Window Switch - Driver
3	Speaker - LF Door Tweeter (UQ2)
4	Outside Rearview Mirror - Driver
5	Outside Rearview Mirror Switch
6	C202
7	C209
8	Speaker - LF Door
9	Window Motor - Driver
10	Inflatable Restraint Side Impact Sensor (SIS) - Left Connector (ASF)

Fig 4: Front Passenger Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Front Passenger
2	Speaker - RF Door Tweeter (UQ2)
3	Door Lock and Window Switch - Front Passenger
4	Door Lock Actuator - Front Passenger
5	Inflatable Restraint Side Impact Sensor (SIS) - Right Connector (ASF)
6	Window Motor - Front Passenger
7	Speaker - RF Door
8	C211
9	C210

Fig 5: Left Rear Door Component View (Crew Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LR Door
2	Door Lock and Window Switch - LR
3	C316
4	Window Motor - LR
5	Door Lock Actuator - LR

Fig 6: Right Rear Door Component View (Crew Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock and Window Switch - RR
2	Speaker - RR Door
3	Door Lock Actuator - RR
4	Window Motor - RR
5	C317

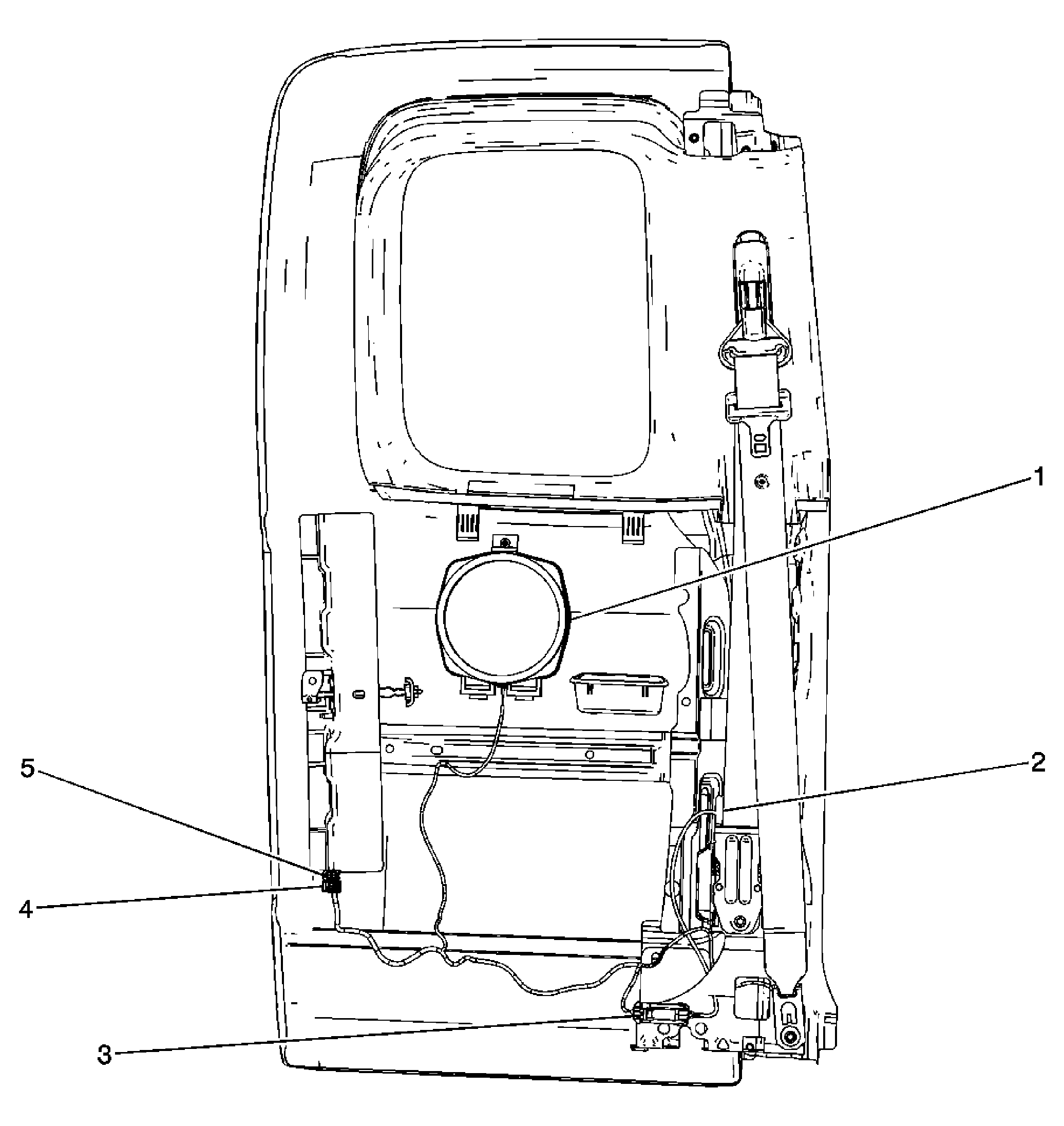

Fig 7: Left Rear Door Component View (EXT Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LR Door
2	Seat Belt Pretensioner - LF
3	Seat Belt Pretensioner - LF Connector
4	C316
5	C311

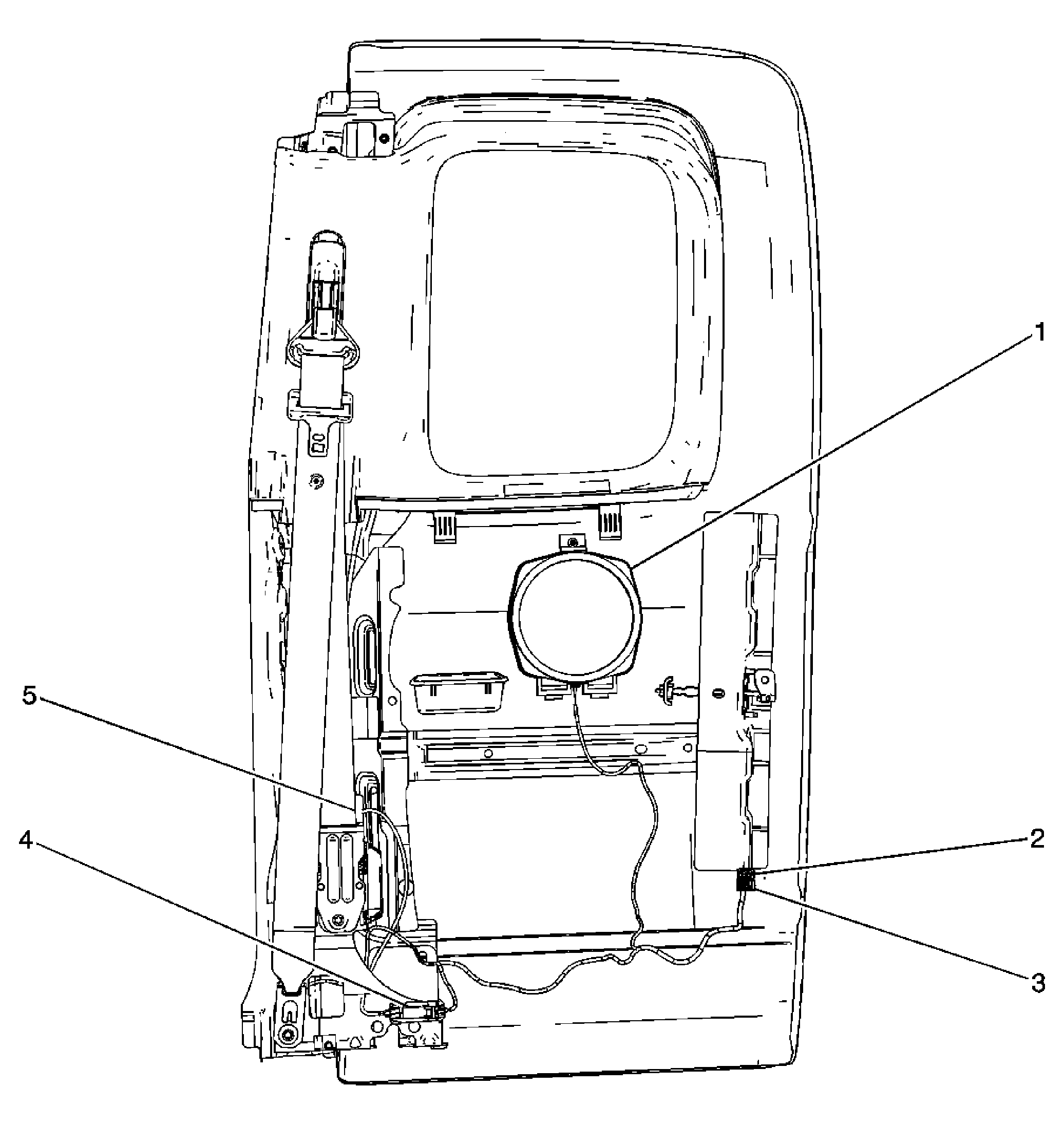

Fig 8: Right Rear Door Component View (EXT Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR Door
2	C312
3	C317
4	Seat Belt Pretensioner - RF Connector
5	Seat Belt Pretensioner - RF
