Lighting Systems Component Views

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

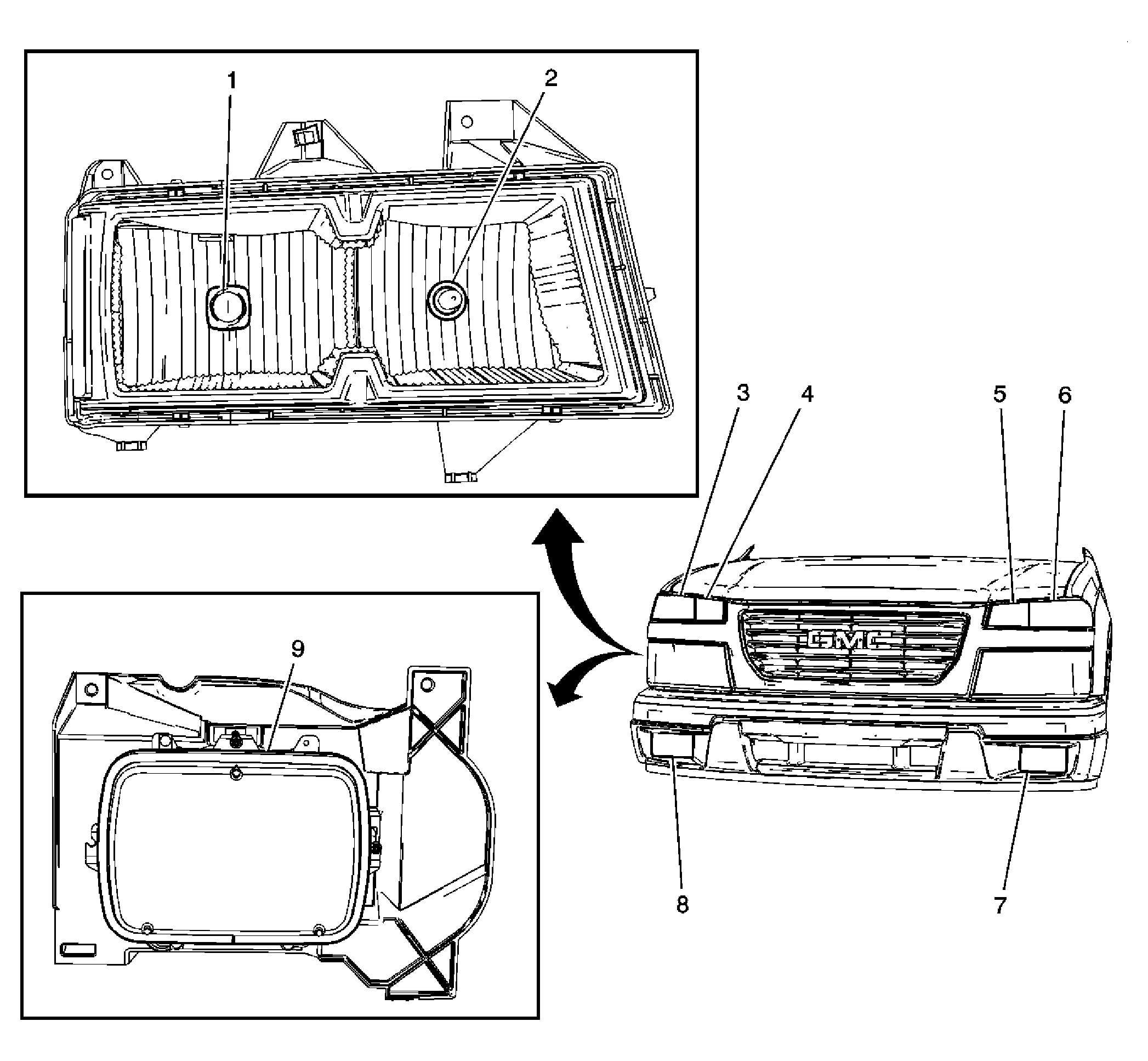

Fig 1: Front Exterior Lights Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Low Beam - Right (TT5) (Left Similar)
2	Headlamp - High Beam - Right (TT5) (Left Similar)
3	Marker Lamp - RF
4	Park/Turn Signal Lamp - RF
5	Marker Lamp - LF
6	Park/Turn Signal Lamp - LF
7	Fog Lamp - LF (T96)
8	Fog Lamp - RF (T96)
9	Headlamp - RH (w/o TT5) (Left Similar)

Fig 2: Center Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Instrument Panel Cluster (IPC)
3	Hazard Switch
4	Accessory Switch
5	Ambient Light Sensor
6	Radio
7	Auxiliary Power Outlet 2
8	Auxiliary Power Outlet 1
9	HVAC Control Module
10	Headlamp and Panel Dimmer Switch

Fig 3: Lower Left Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness
2	Clutch Switch (MA5)
3	Clutch Switch Connector (MA5)
4	TCC Brake/Cruise Release Switch Connector
5	Stop Lamp Switch Connector
6	Stop Lamp Switch
7	TCC Brake/Cruise Release Switch
8	Brake Pedal
9	Clutch Pedal
10	Clutch Start Switch Connector (MA5)
11	Clutch Start Switch (MA5)

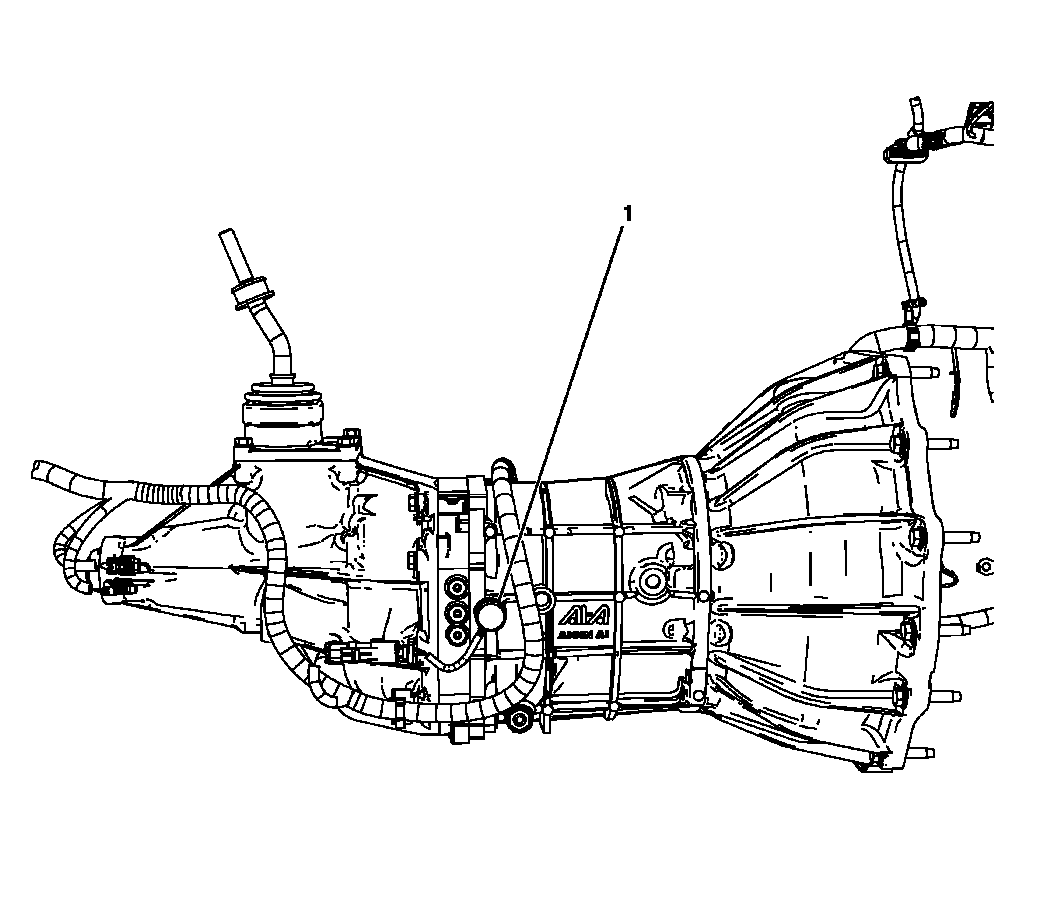

Fig 4: Backup Lamp Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch (MA5)

Fig 5: Lower Center Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communications Interface Module (VCIM) C1 Connector (UE1)
2	Vehicle Communications Interface Module (VCIM) C2 Connector (UE1)
3	Vehicle Communications Interface Module (VCIM)
4	Courtesy Lamp - Footwell Right
5	Courtesy Lamp - Footwell Left
6	Data Link Connector (DLC)

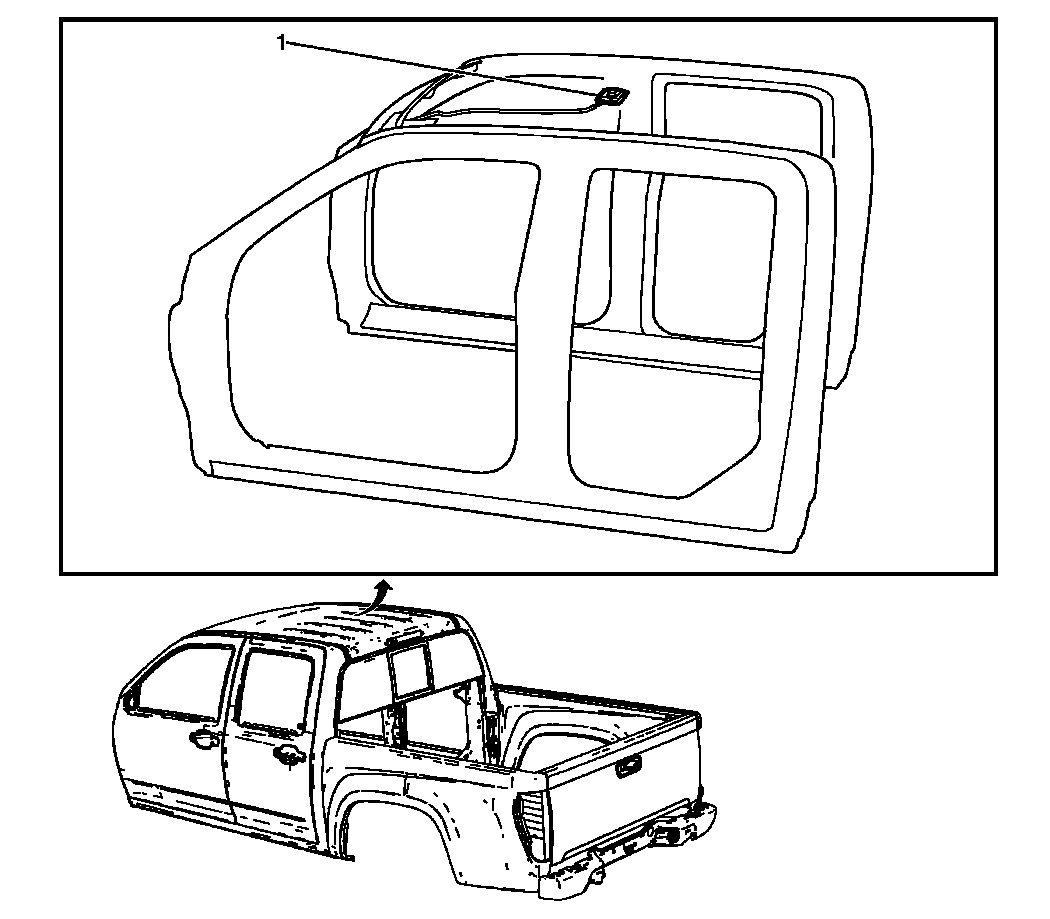

Fig 6: Dome Lamp Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Lamp

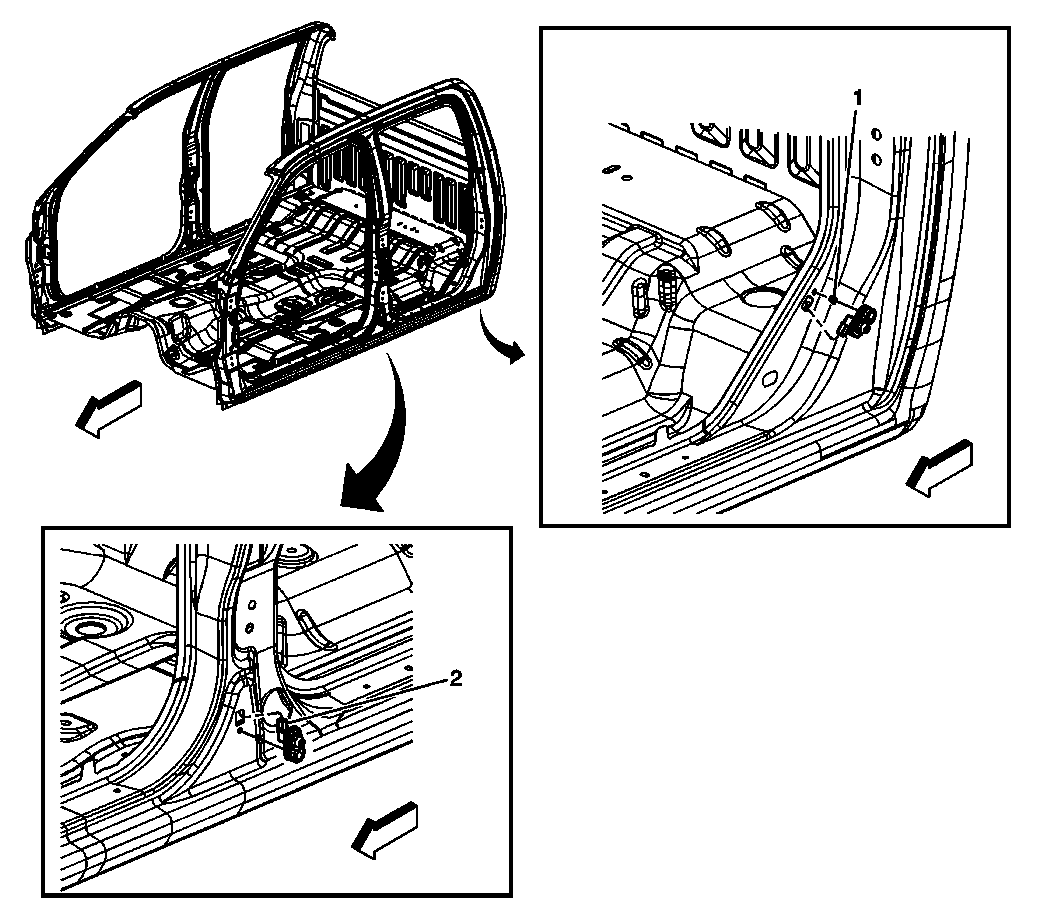

Fig 7: Left Door Jamb Switches Component View (Crew Cab) Right Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - LR
2	Door Jamb Switch - Driver

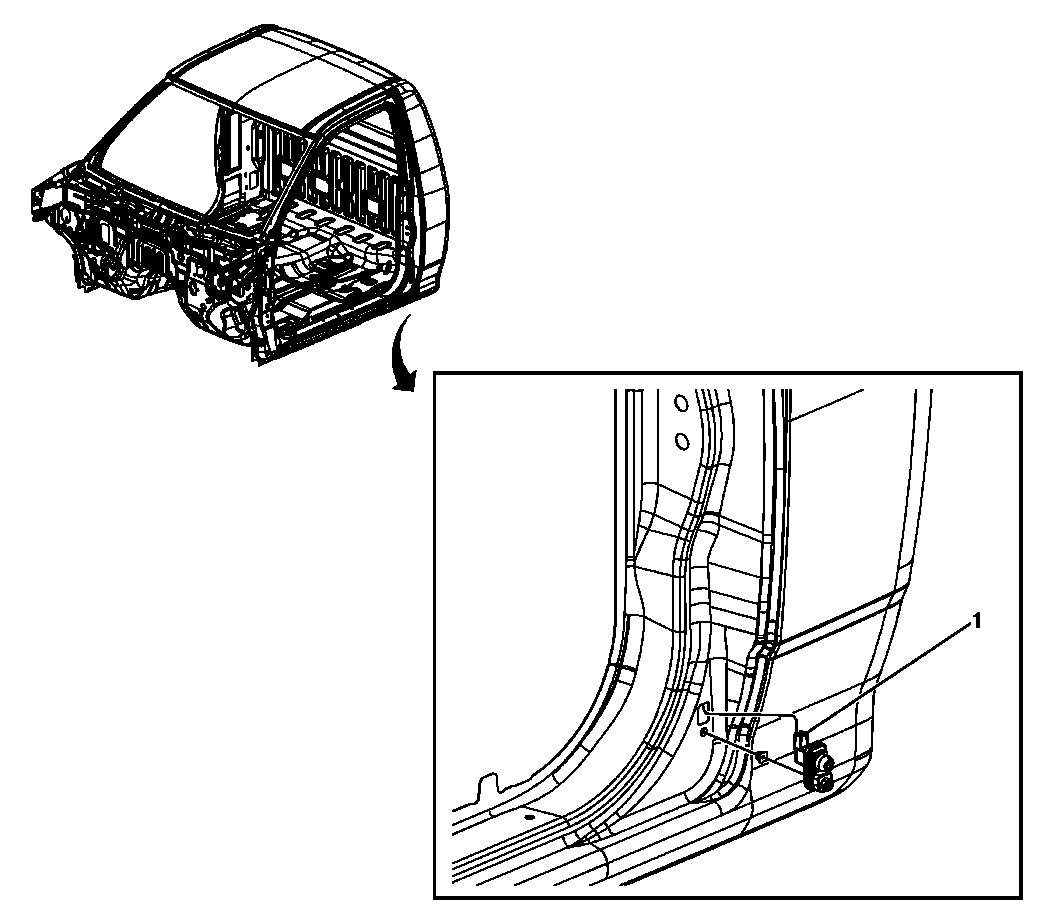

Fig 8: Door Jamb Switch - Driver Component View (Regular Cab) Front Passenger Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - Driver

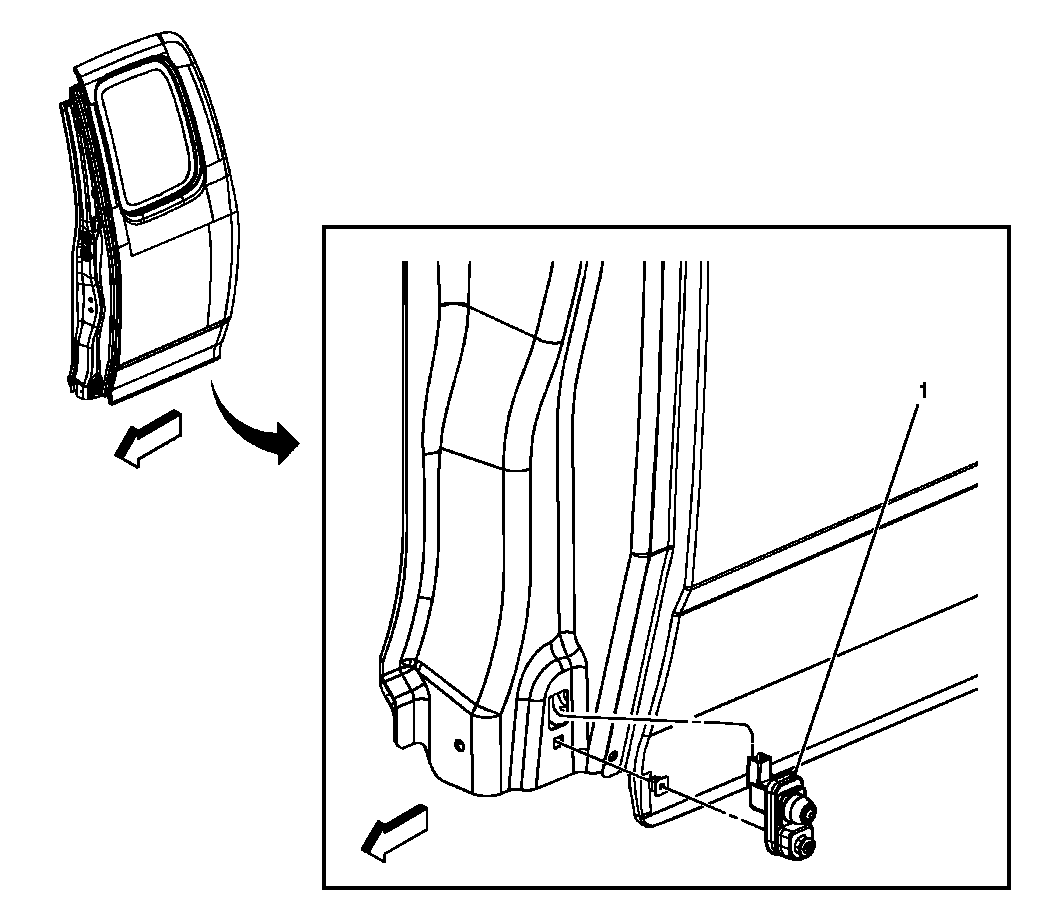

Fig 9: Door Jamb Switch - Driver Component View (EXT Cab) Front Passenger Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - Driver

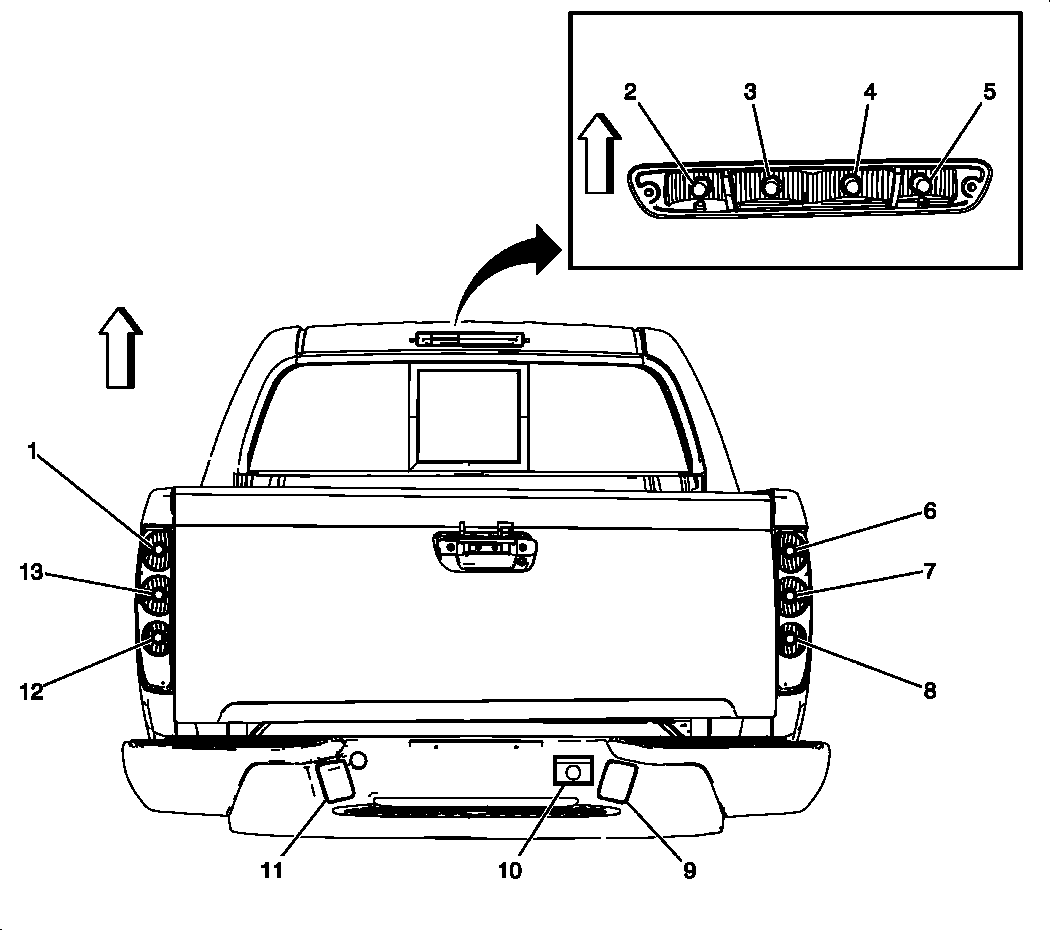

Fig 10: Rear Exterior Lights Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp - LR
2	Cargo Lamp - Left
3	Center High Mounted Stop Lamp (CHMSL) - Left
4	Center High Mounted Stop Lamp (CHMSL) - Right
5	Cargo Lamp - Right
6	Stop Lamp - RR
7	Turn Signal Lamp - RR
8	Backup Lamp - Right
9	License Lamp - Right
10	License Lamp - Left
11	Backup Lamp - Left
12	Turn Signal Lamp - LR
