Remote Function Schematics

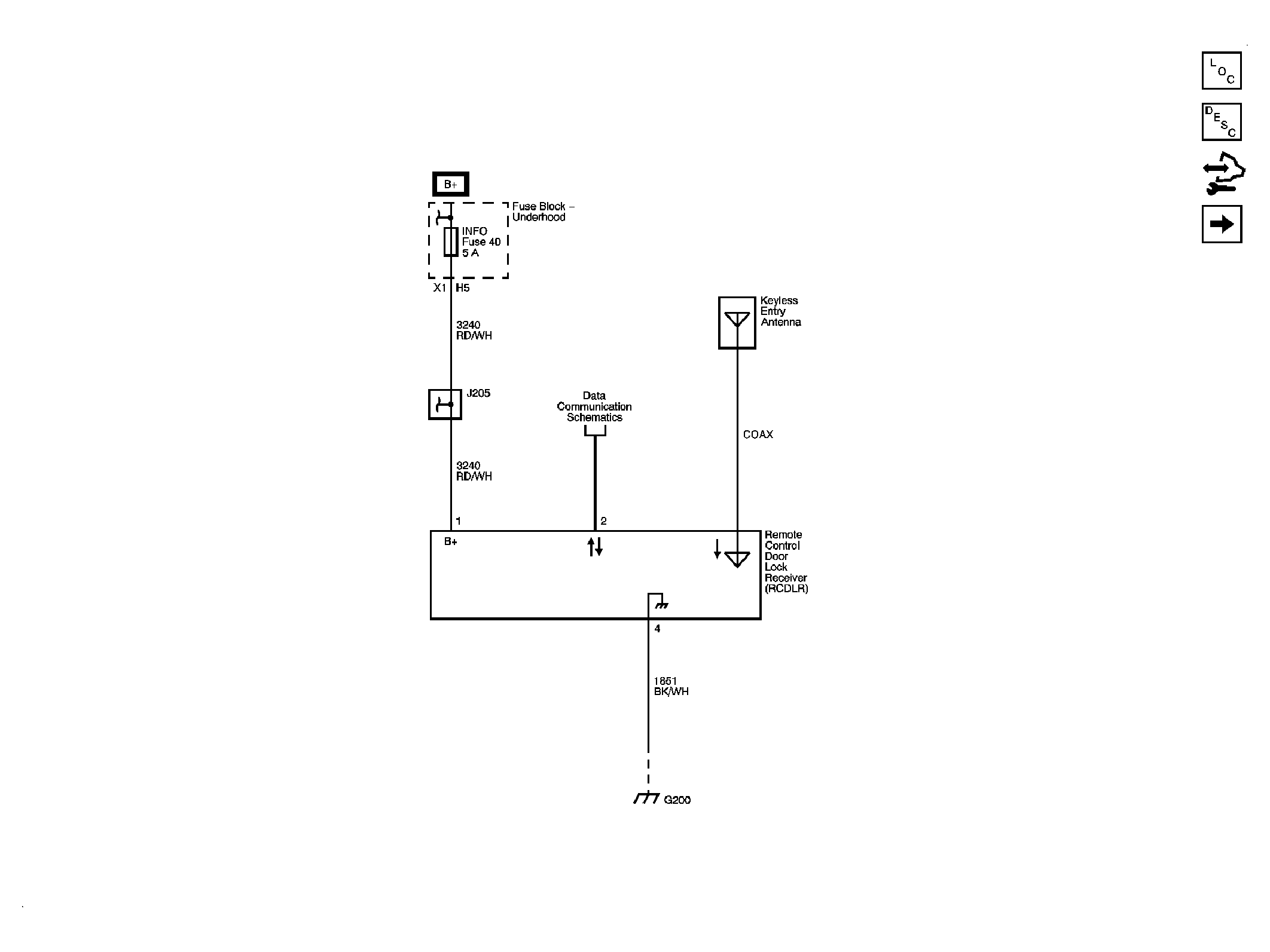

Fig 1: Power, Ground and Remote Control Door Lock Receiver Routing Diagram
GM1961208Courtesy of GENERAL MOTORS CORP.

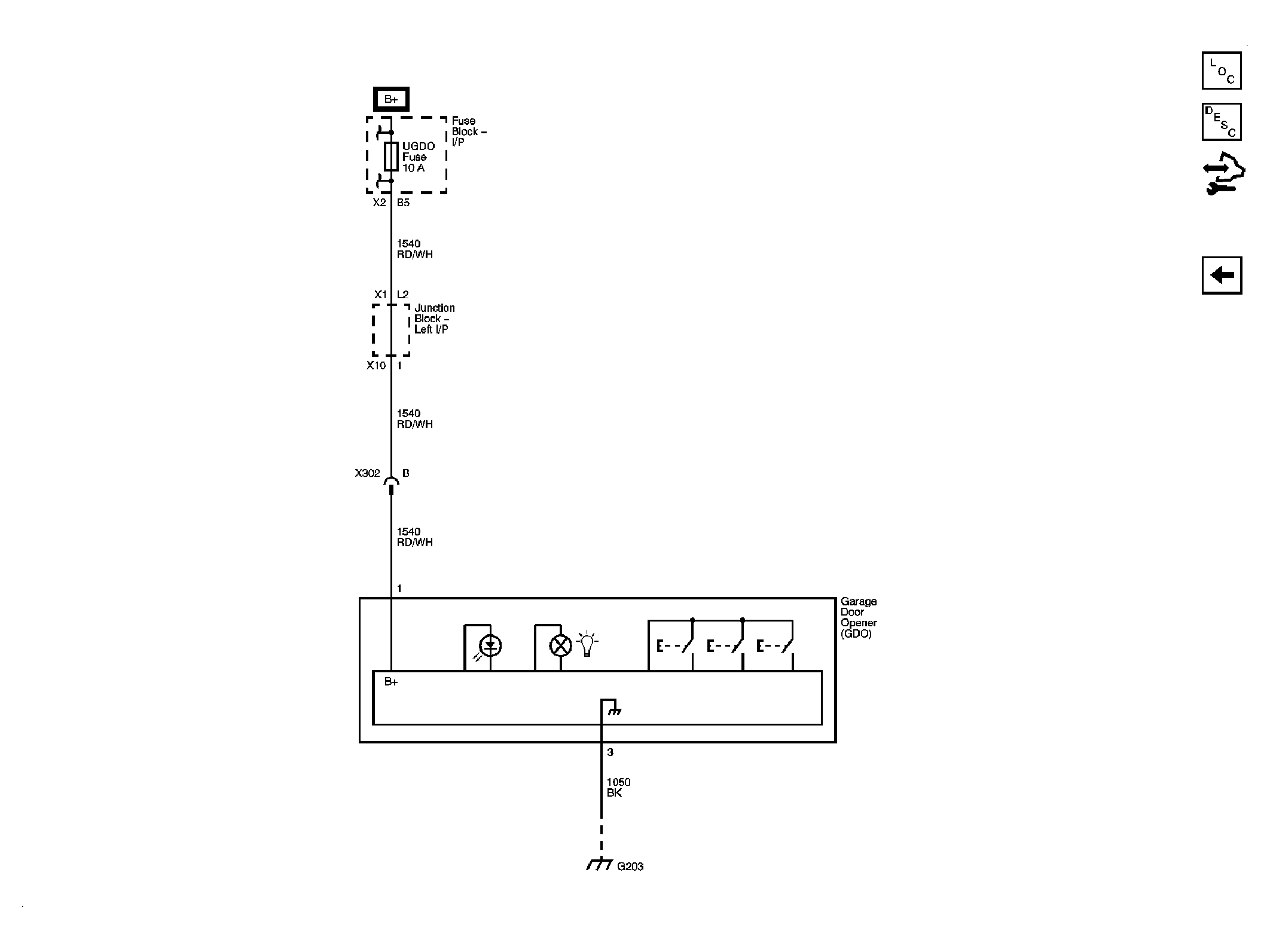

Fig 2: Garage Door Opener Routing Diagram
GM1961217Courtesy of GENERAL MOTORS CORP.
