Passenger Compartment/Roof Component Views

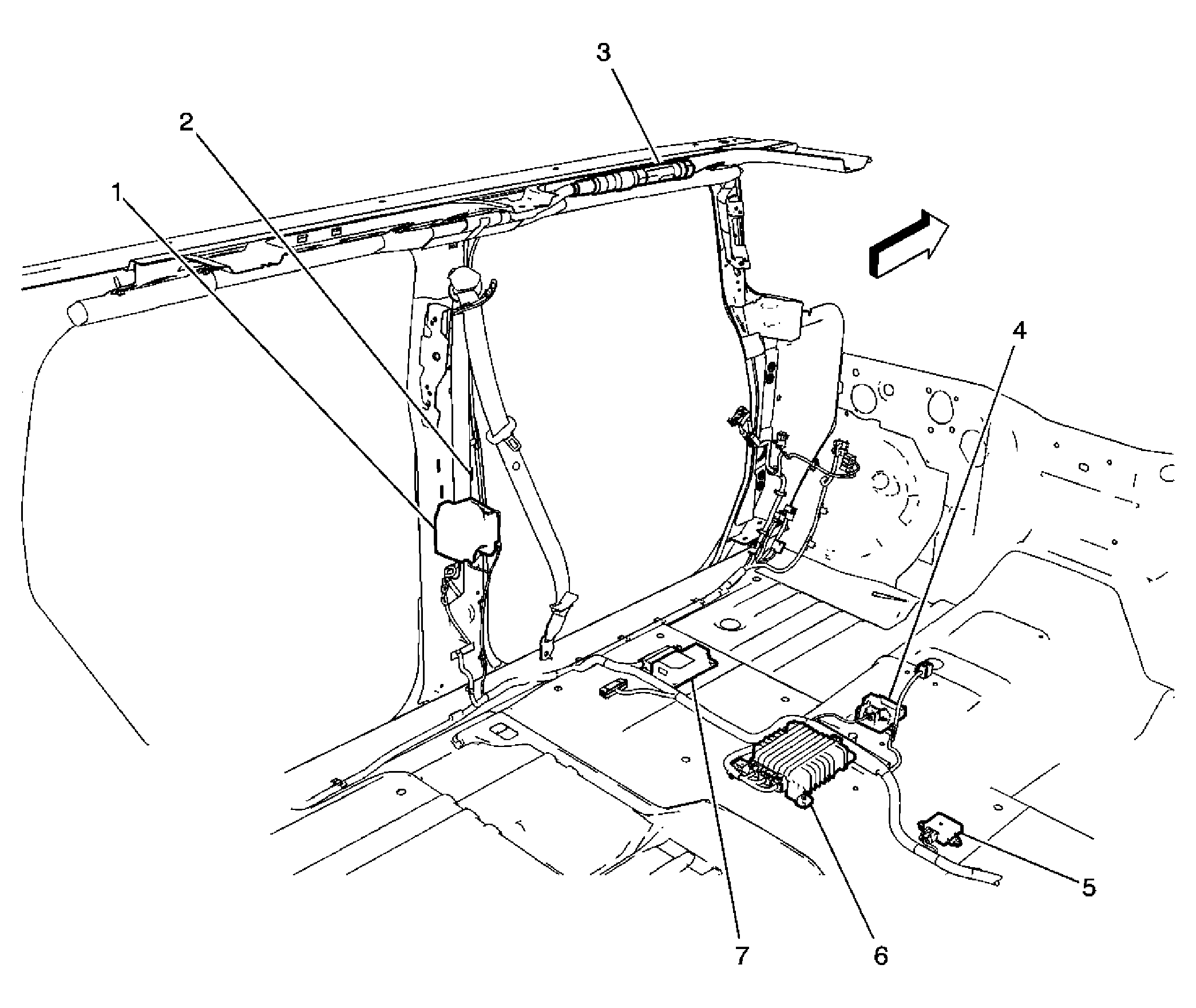

Fig 1: Front Left Side of Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - Left
2	Inflatable Restraint Roof Rail Module Connector - Left Front
3	Inflatable Restraint Roof Rail Module - Left Front
4	Rollover Sensor
5	Yaw Rate and Lateral Acceleration Sensor
6	Audio Amplifier
7	Inflatable Restraint Sensing and Diagnostic Module (SDM)

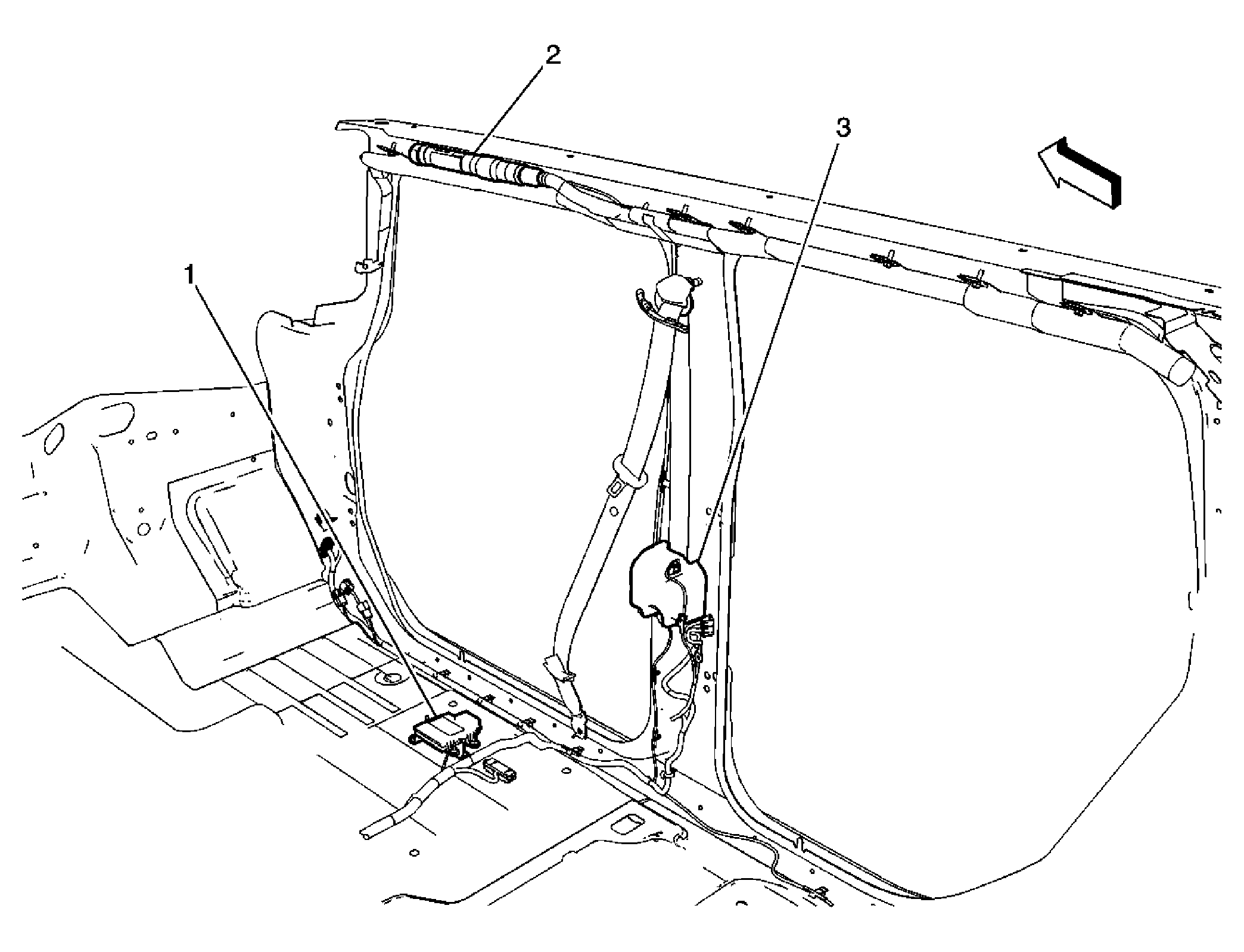

Fig 2: Right Front Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Object Sensor Control Module
2	Inflatable Restraint Roof Rail Module - Right Front
3	Seat Belt Pretensioner - Right

Fig 3: Driver Seat Component Views (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X327
2	Seat Adjuster Switch-Driver
3	Memory Seat Module-C4
4	Memory Seat Module-C3
5	Seat Bolster/Lumbar Switch-Driver
6	Seat Recline Motor-Driver
7	X325
8	X329
9	X330
10	C328
11	Seat Rear Vertical Motor-Driver
12	Seat Front Vertical Motor-Driver
13	Memory Seat Module-C2
14	Memory Seat Module-C1
15	Seat Horizontal Motor-Driver
16	X326

Fig 4: Driver Seat Component Views (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Bolster Motor - Driver
2	Seat Lumbar Motor - Driver
3	Heated Seat Element - Driver Cushion
4	X333
5	Seat Belt Switch Connector
6	Heated Seat Element - Driver Cushion Connector

Fig 5: Front Passenger Seat Component Views (1 Of 2) (W/ AN3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Horizontal Motor-Front Passenger
2	Seat Front Vertical Motor-Front Passenger
3	Seat Rear Vertical Motor-Front Passenger
4	X376
5	X377
6	X375
7	Seat Recline Motor-Front Passenger
8	Seat Bolster/Lumbar Switch-Front Passenger
9	Seat Adjuster Switch-Front Passenger

Fig 6: Front Passenger Seat Component Views (2 Of 2) (W/ AN3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Bolster Motor-Passenger
2	Seat Lumbar Motor-Passenger
3	Heated Seat Element-Passenger Cushion Connector (w/KA7)
4	X378

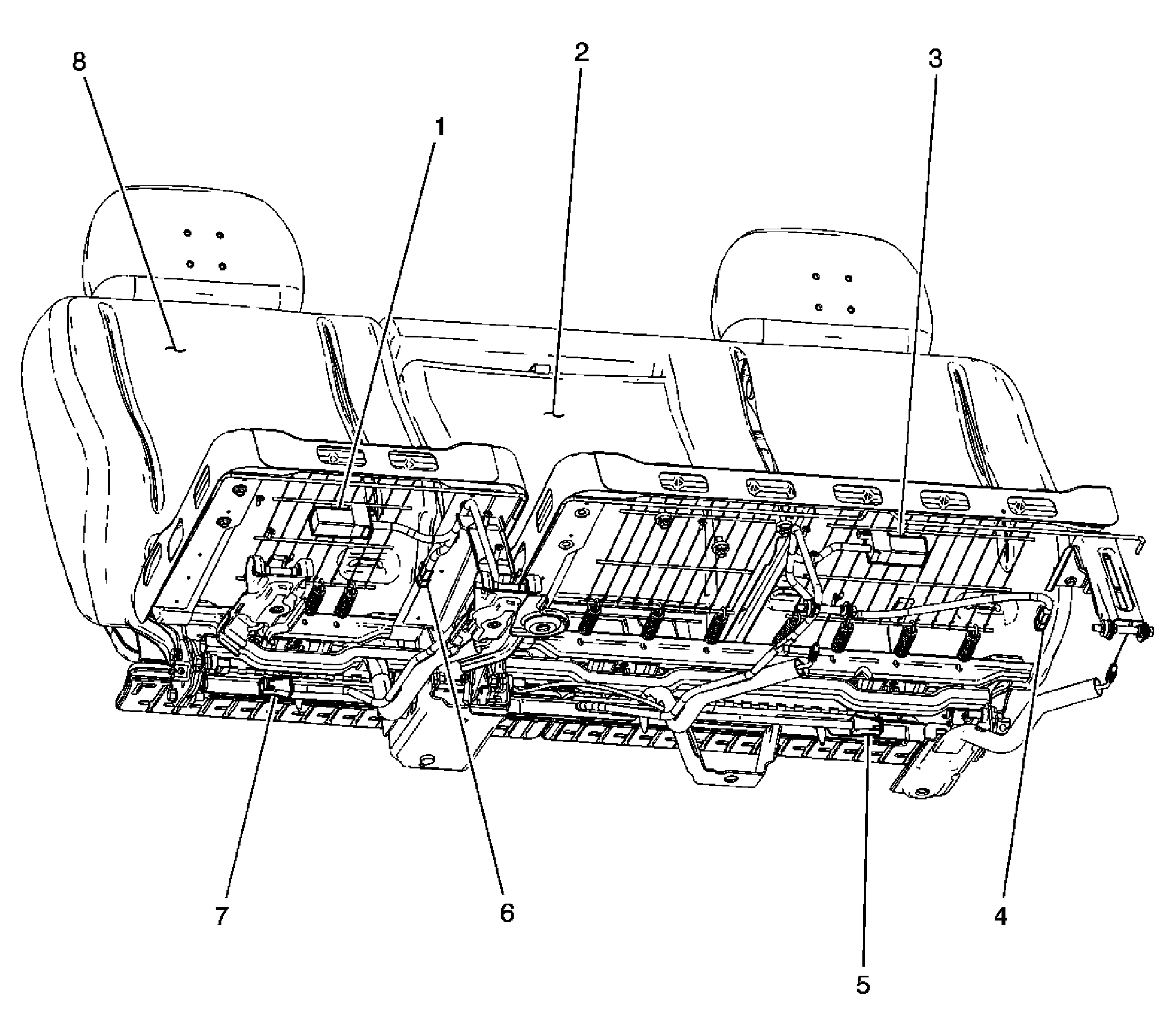

Fig 7: 2nd Row Heated Seat (KA7) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Control Module-RR
2	2nd Row Seat-LR
3	Heated Seat Control Module-LR
4	Heated Seat Element Connector-LR
5	X320
6	Heated Seat Element Connector-RR
7	X380
8	2nd Row Seat-RR

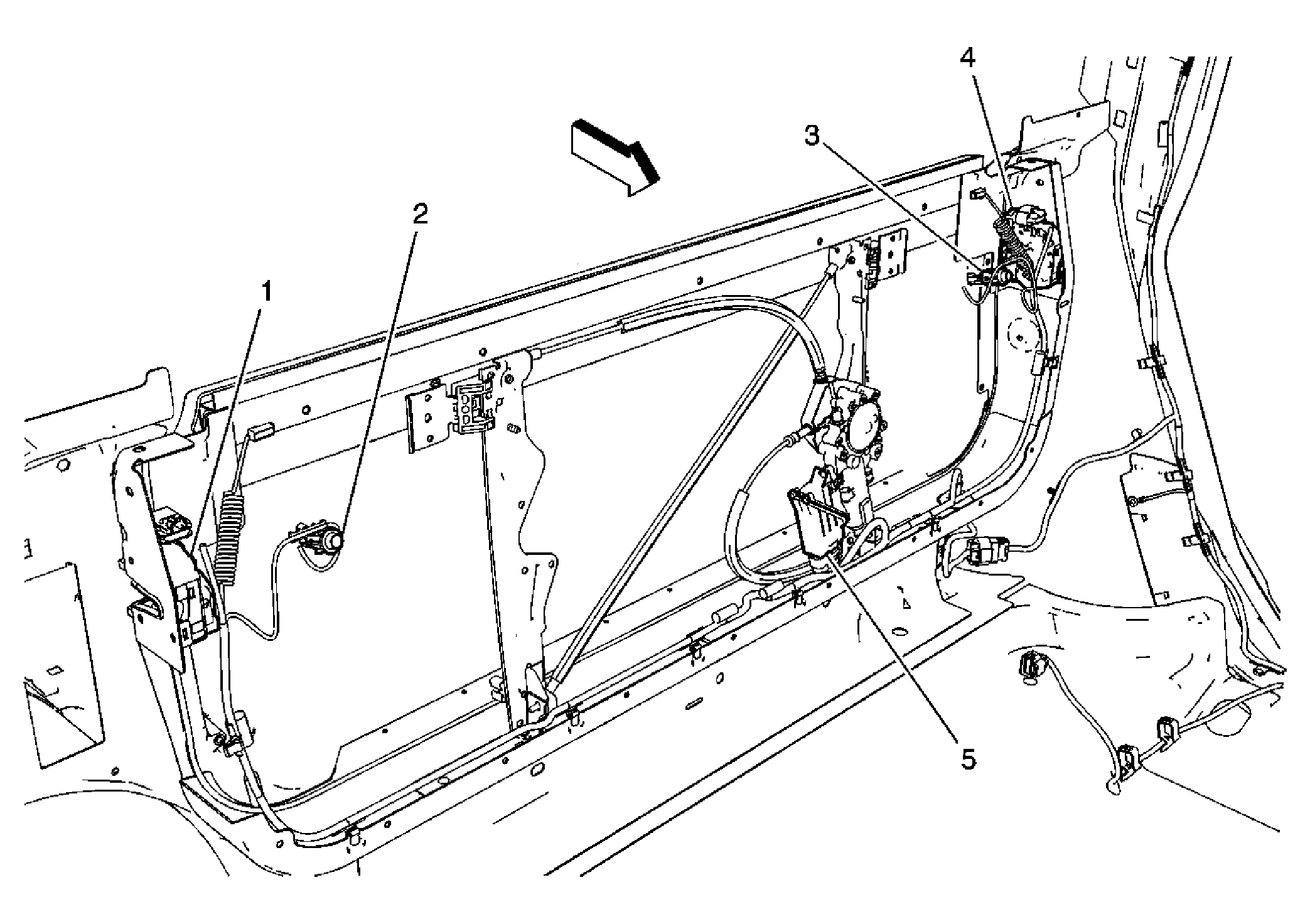

Fig 8: Midgate Components (SUT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Midgate Latch-Right
2	Midgate Latch Release Switch-Right
3	Midgate Latch Release Switch-Left
4	Midgate Latch-Left
5	Midgate Control Module

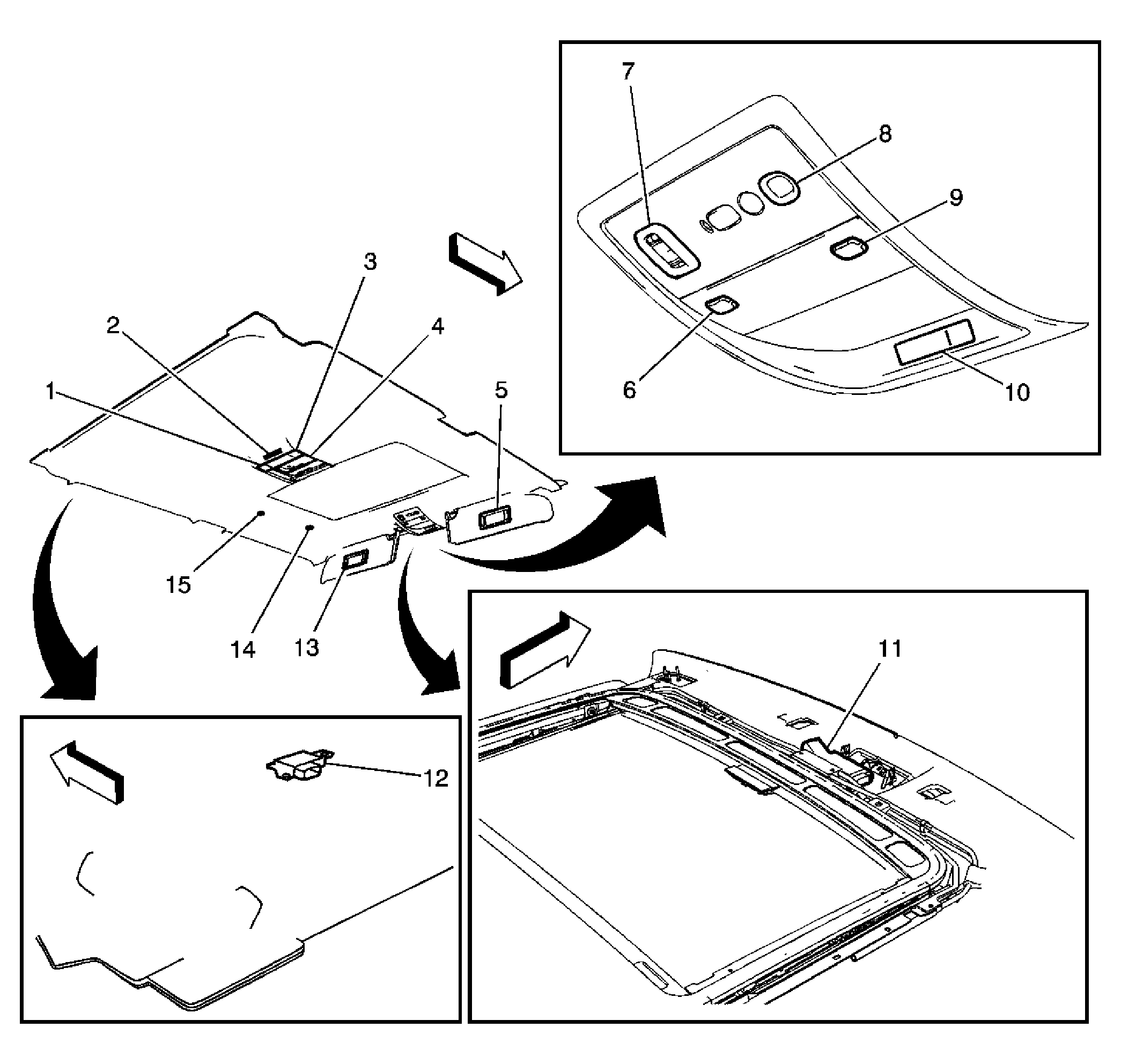

Fig 9: Headliner (SUT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp - 2nd Row (-U42)
2	Infared Receiver (U42)
3	Infared Module (U42)
4	Video Display (U42)
5	Vanity Mirror Lamp - Right
6	Overhead Console Reading Lamp-Driver
7	Sunroof Switch (CF5)
8	Onstar Button Assembly
9	Overhead Console Reading Lamp-Passenger
10	Inflatable Restraint I/P Module Indicator
11	Sunroof Module (CF5)
12	Remote Compass Module
13	Ambient Air Temperature Sensor-Inside
14	Cellular Microphone
15	Vanity Mirror Lamp-Left

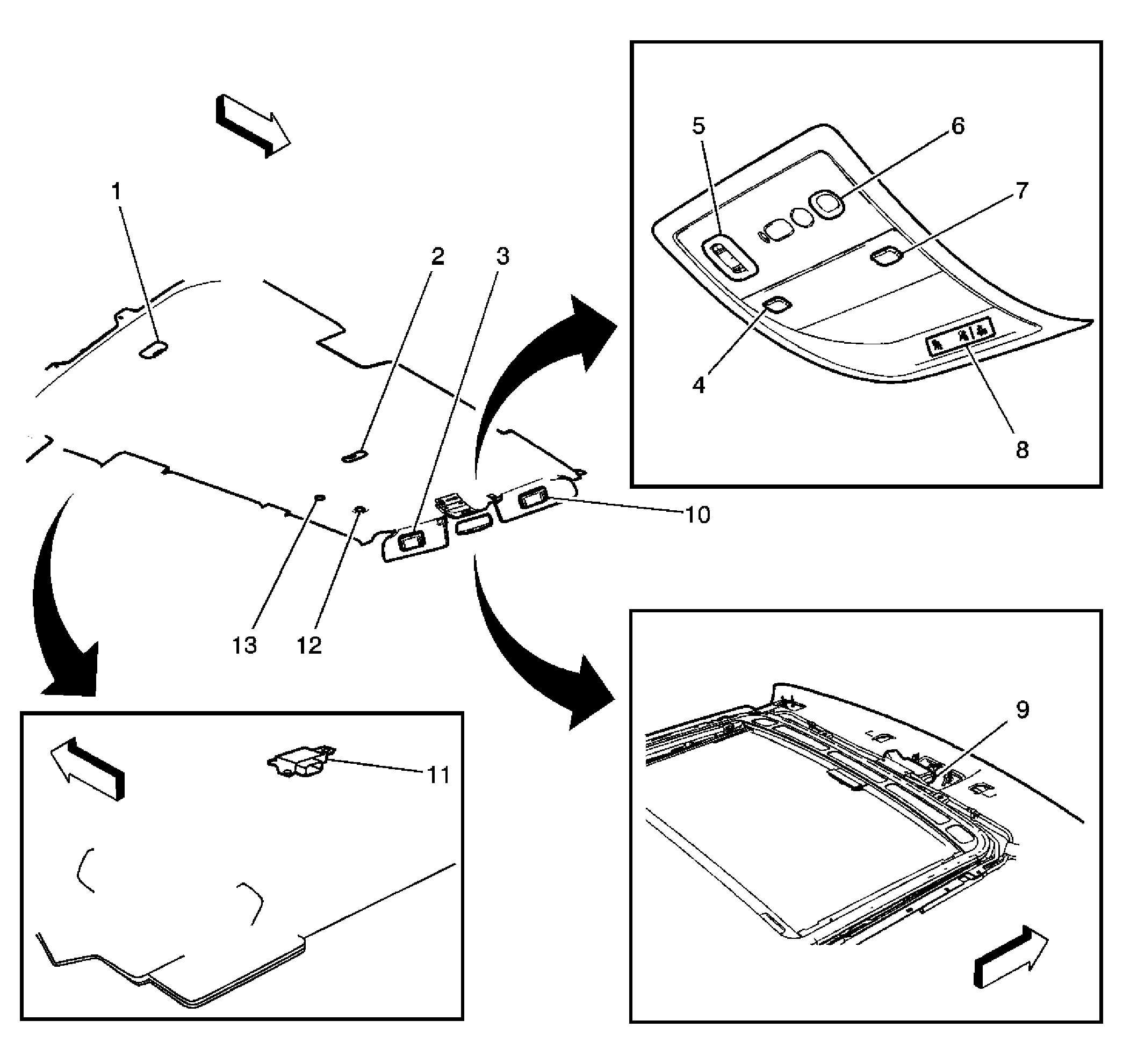

Fig 10: Headliner (SUV)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp - 3rd Row (SUV)
2	Courtesy/Reading Lamp - 2nd Row
3	Vanity Mirror Lamp-Left
4	Overhead Console Reading Lamp-Driver
5	Sunroof Switch (CF5)
6	Onstar Button Assembly
7	Overhead Console Reading Lamp-Front Passenger
8	Inflatable Restraint I/P Module Indicator
9	Vanity Mirror Lamp-Right
10	Sunroof Module (CF5)
11	Remote Compass Module
12	Cellular Microphone
13	Ambient Air Temperature Sensor-Inside

Fig 11: Stationary Window Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward Lamp Harness
2	Radiator Support
3	Ambient Air Temperature Sensor - HVAC
4	Ambient Air Temperature Sensor - Mirror
5	Inside Rearview Mirror Connector
6	Vanity Mirror Lamp Connector - Left
7	Vanity Mirror Lamp Connector - Right
8	Center High Mounted Stop Lamp (CHMSL) Connector
9	Rear Window Defogger Grid Connector
10	Rear Window Defogger Grid Connector

Fig 12: ISRVM and Off-Road Lamps Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror (ISRVM)
2	Off-Road Lamps Switch (USB, USC, USD, UNR)
3	Outside Temperature/Compass Display
4	Rear Vision Camera Display (UVC)

Fig 13: Antenna Locations Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular and Navigational Antenna
2	Radio Antenna
3	Global Positioning System (GPS) Antenna (I/P)
