Turn Signal Multifunction Switch Replacement

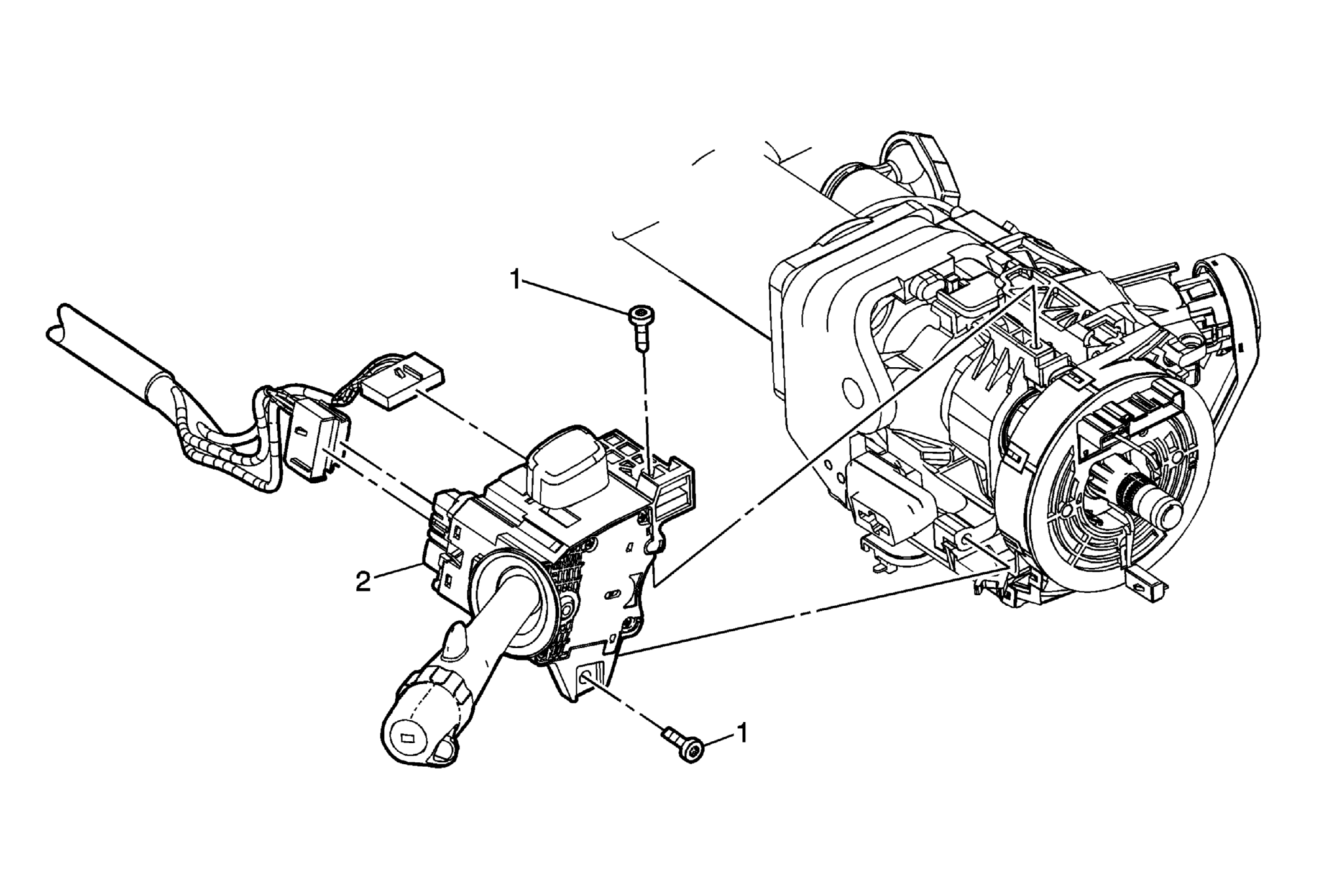

Fig 1: Turn Signal Multifunction Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the steering wheel. Refer to Steering Wheel Replacement . Remove the steering column shroud. Refer to Steering Column Shroud Replacement .
1	Turn Signal Multifunction Switch Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 3 N.m (27 lb in)
2	Turn Signal Multifunction Switch Procedure: Disconnect any electrical connectors as needed.

Callout

Component Name

Preliminary Procedure

Remove the steering wheel. Refer to Steering Wheel Replacement .
Remove the steering column shroud. Refer to Steering Column Shroud Replacement .

Turn Signal Multifunction Switch Bolt (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 3 N.m (27 lb in)

Turn Signal Multifunction Switch
Procedure:
Disconnect any electrical connectors as needed.
