Removal Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: A new sunroof module assembly does not include the sunroof window, the motor, the sunshade, or the finishing lace as components. You must install the old components to the new sunroof module assembly.

Remove the sunroof window. Refer to Sunroof Window Replacement .
Remove the sunshade panel. Refer to Sunroof Sunshade Replacement .
Remove the sunroof finishing lace. Refer to Sunroof Opening Trim Finish Lace Replacement .
It is only necessary to lower the headliner. Only do those step in headliner replacement that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (Sedan) .

Fig 1: View Of Sunroof Front Drain Hose

Courtesy of GENERAL MOTORS CORP.

Disconnect the front sunroof drain hoses from the drain spigot.

Fig 2: View Of Sunroof Rear Drain Hose

Courtesy of GENERAL MOTORS CORP.

Disconnect the rear sunroof drain hoses from the drain spigot.

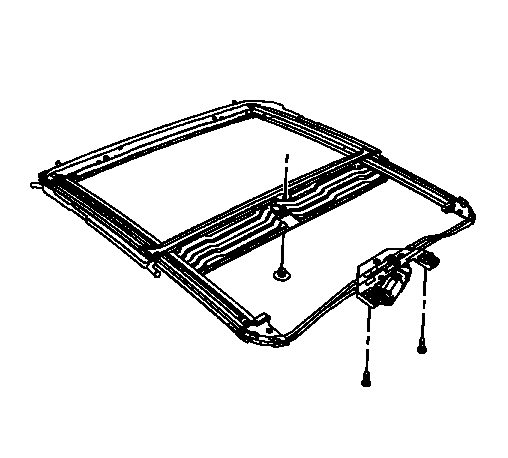

Fig 3: View Of Bolts Securing Sunroof Module Motor Base To Roof

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Remove the sunroof module fasteners in the order indicated below, from back to front.

Remove the bolts that secure the sunroof module motor base to the roof.
Remove the push-pin fastener securing the rear sunroof water gutter to the roof.

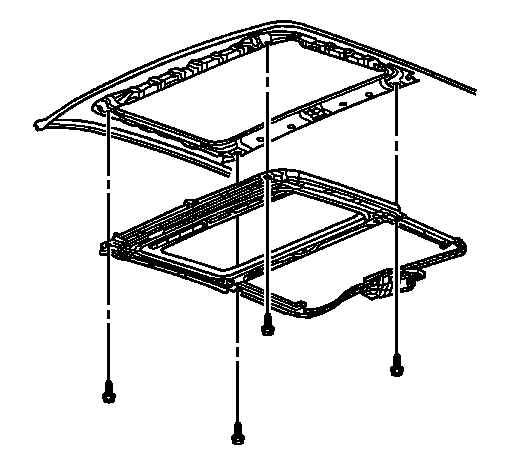

Fig 4: View Of Sunroof Module

Courtesy of GENERAL MOTORS CORP.

With the aid of an assistant, remove the 4 bolts that secure the module to the roof ring.
Lower and remove the sunroof module assembly out through the passenger side door.
If you are replacing the sunroof module assembly, remove the sunroof motor/actuator. Refer to Sunroof Motor/Actuator Replacement .
