Rearview Camera Replacement

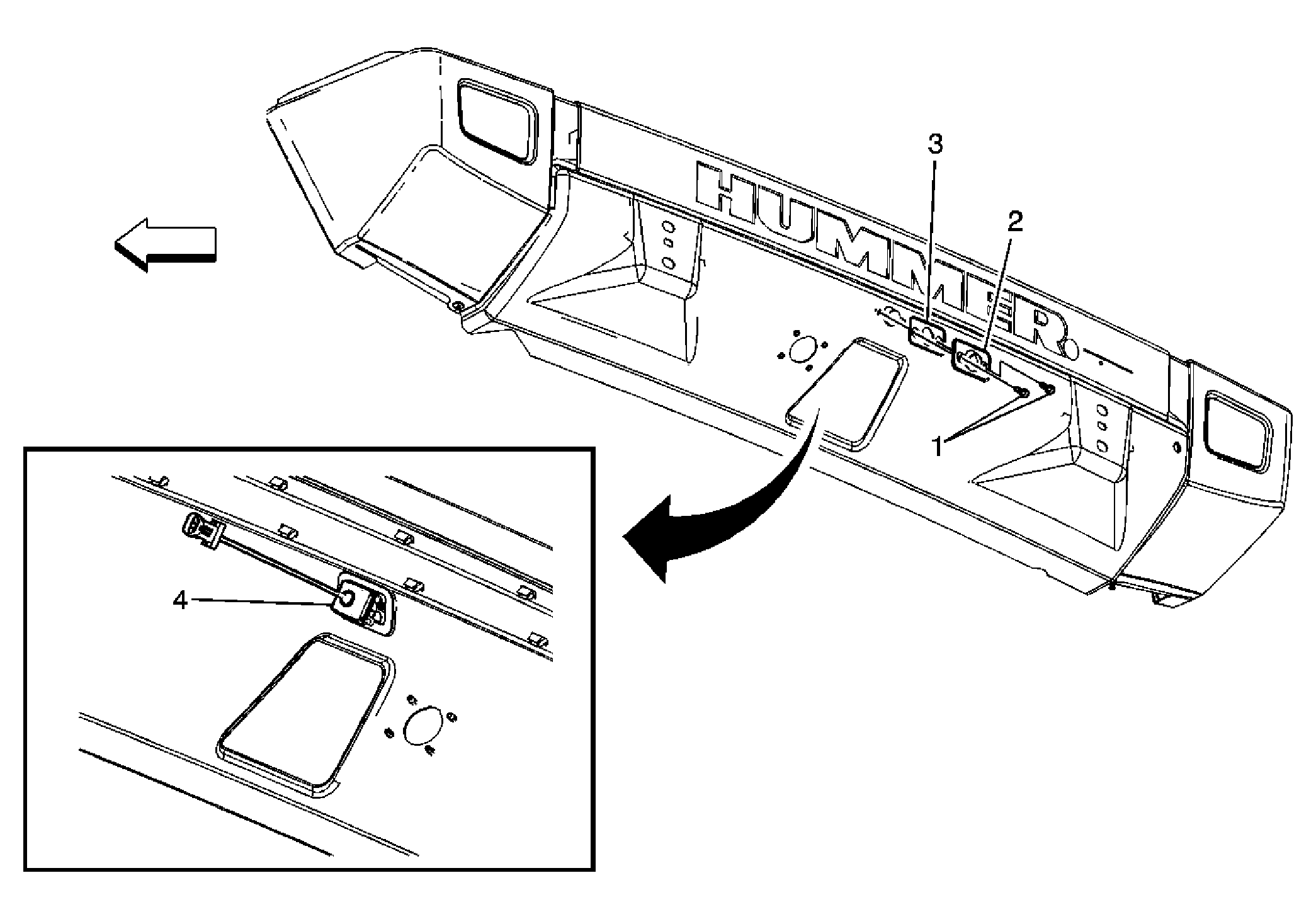

Fig 1: Identifying Rearview Camera

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear bumper. Refer to Rear Bumper Replacement (SUT) or Rear Bumper Replacement (SUV) .
1	Rear View Camera Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 1.5 N.m (13 lb in)
2	Rear View Camera Bracket
3	Rear View Camera Bracket Seal
4	Rear View Camera Assembly
