Home >> Hyundai >> 1986 >> Excel Base, 4D Hatchback >> Repair and Diagnosis >> Engine Performance >> Emissions >> Base Ignition Timing Specifications >> Base Ignition Timing Specifications

Base Ignition Timing Specifications

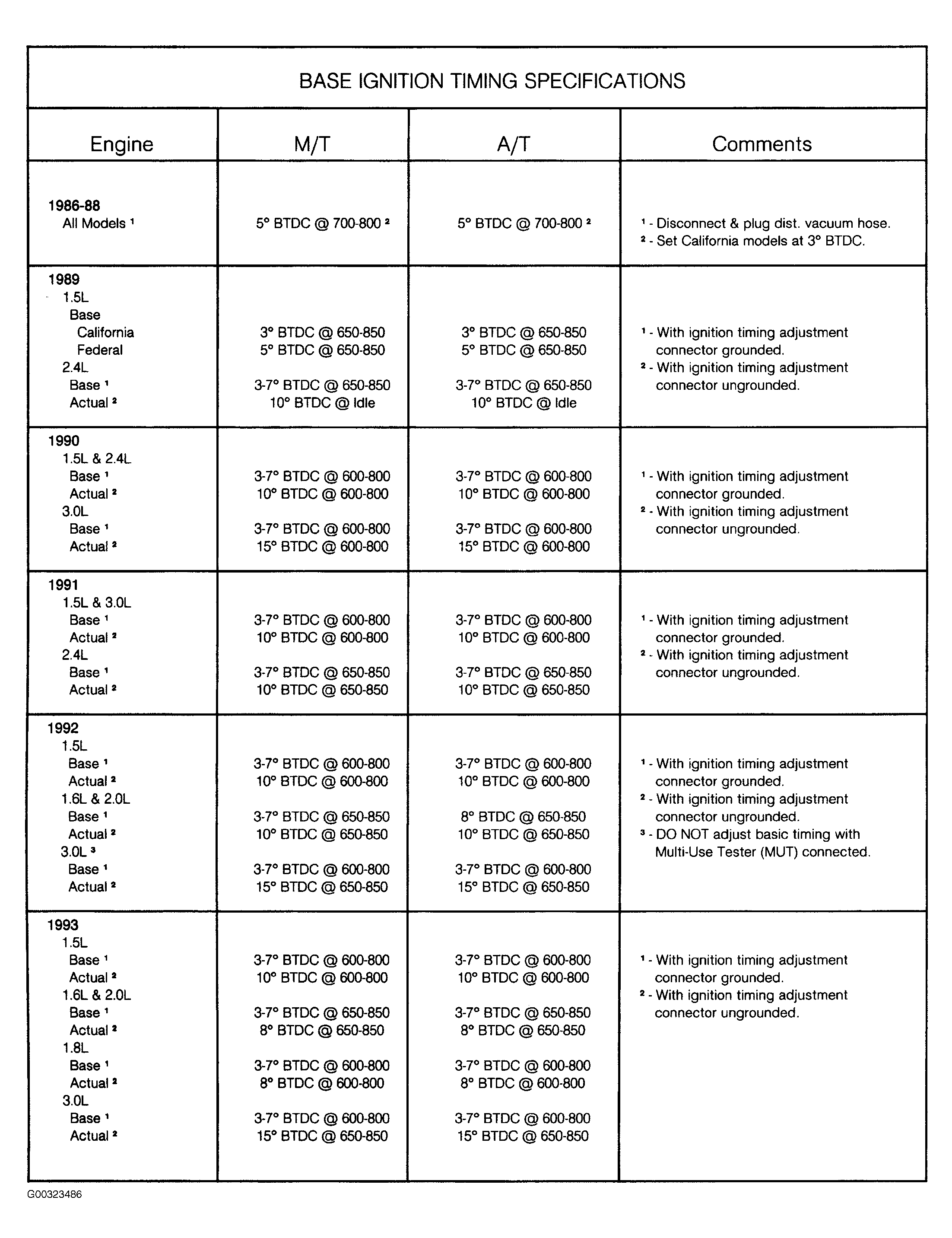

Fig 1:

G00323486

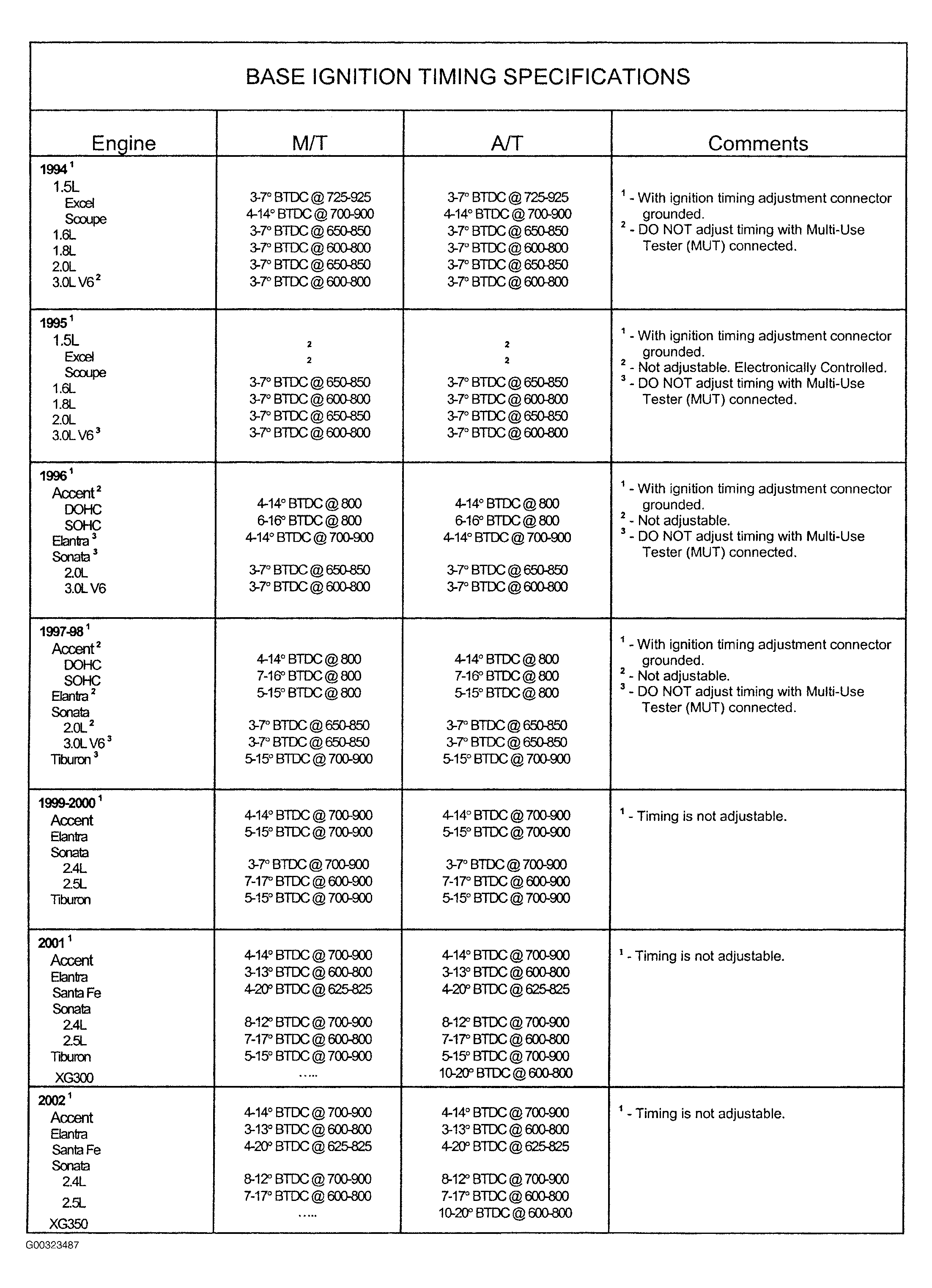

Fig 2:

G00323487

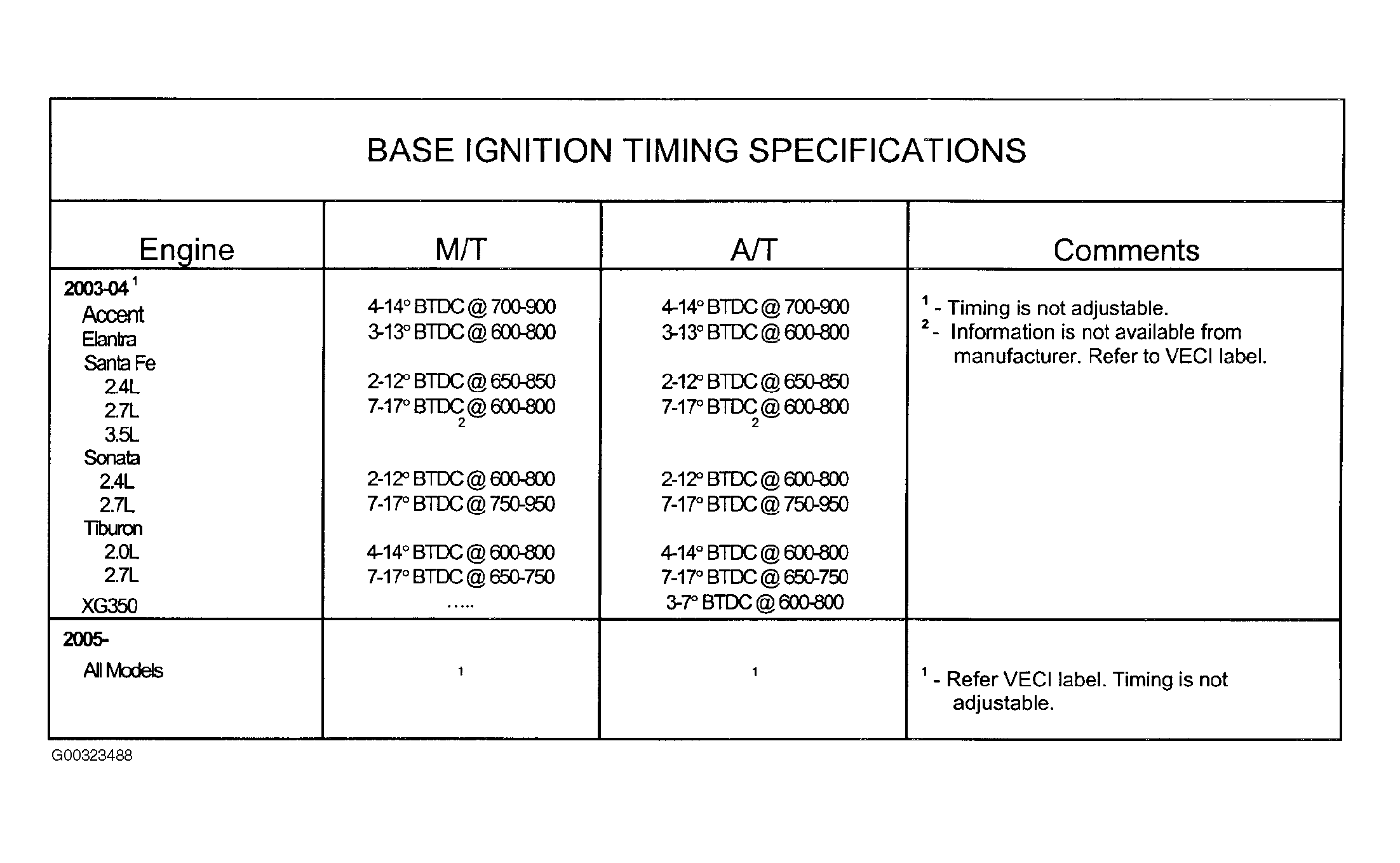

Fig 3:

G00323488
