Code Charts

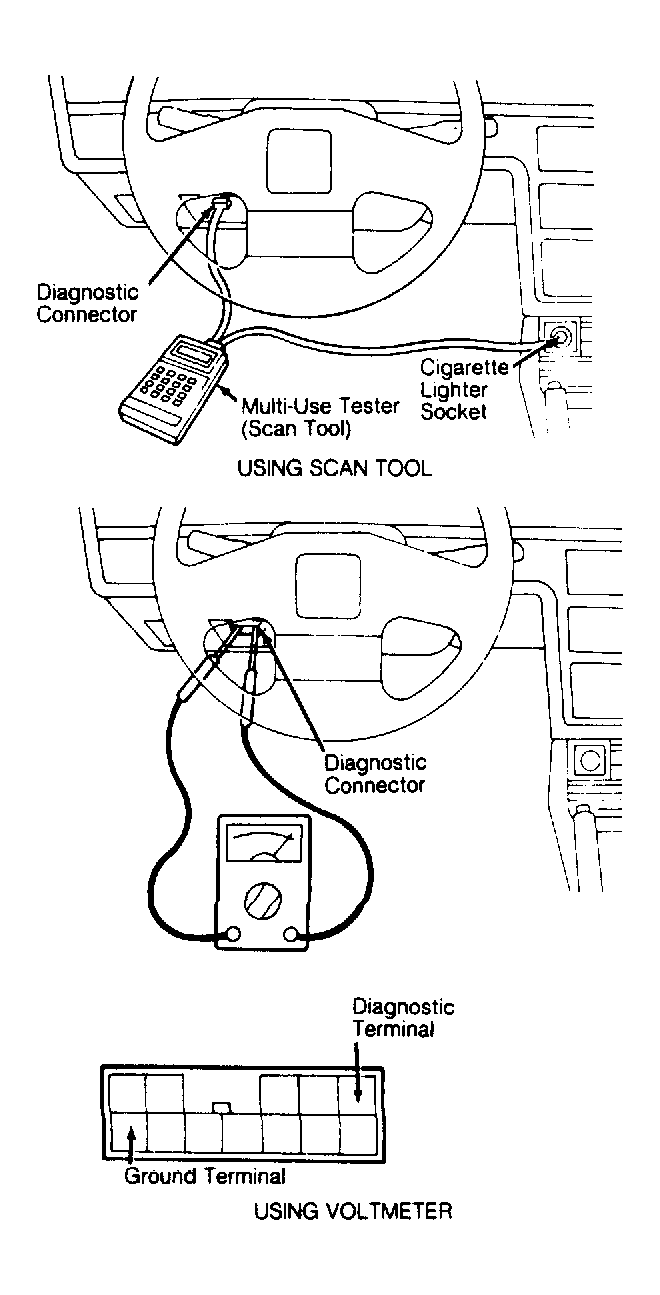

NOTE: A scan tool connected to diagnostic connector is necessary for using the following charts. See Figure .

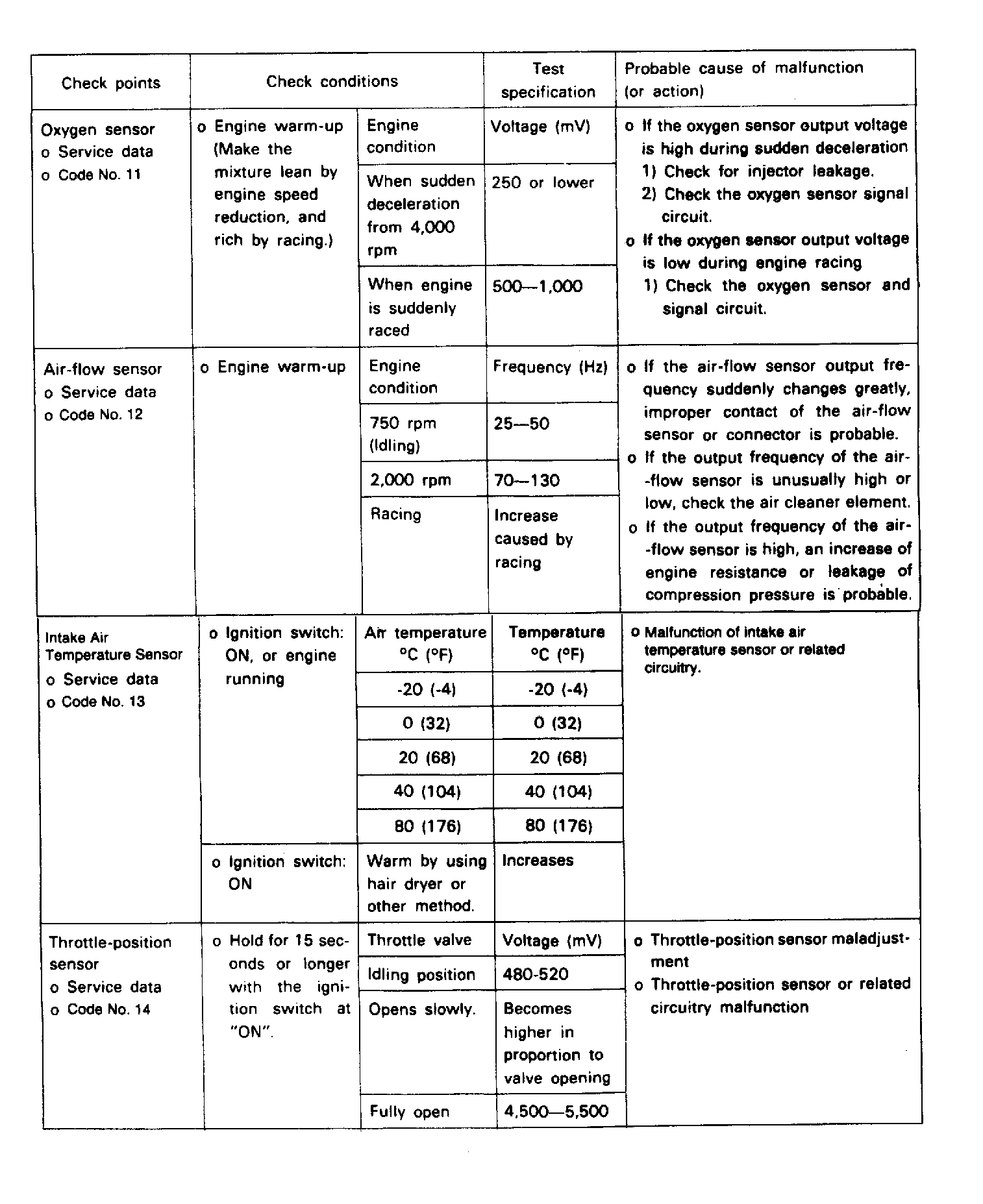

Fig 1: Code Chart (1 of 5)

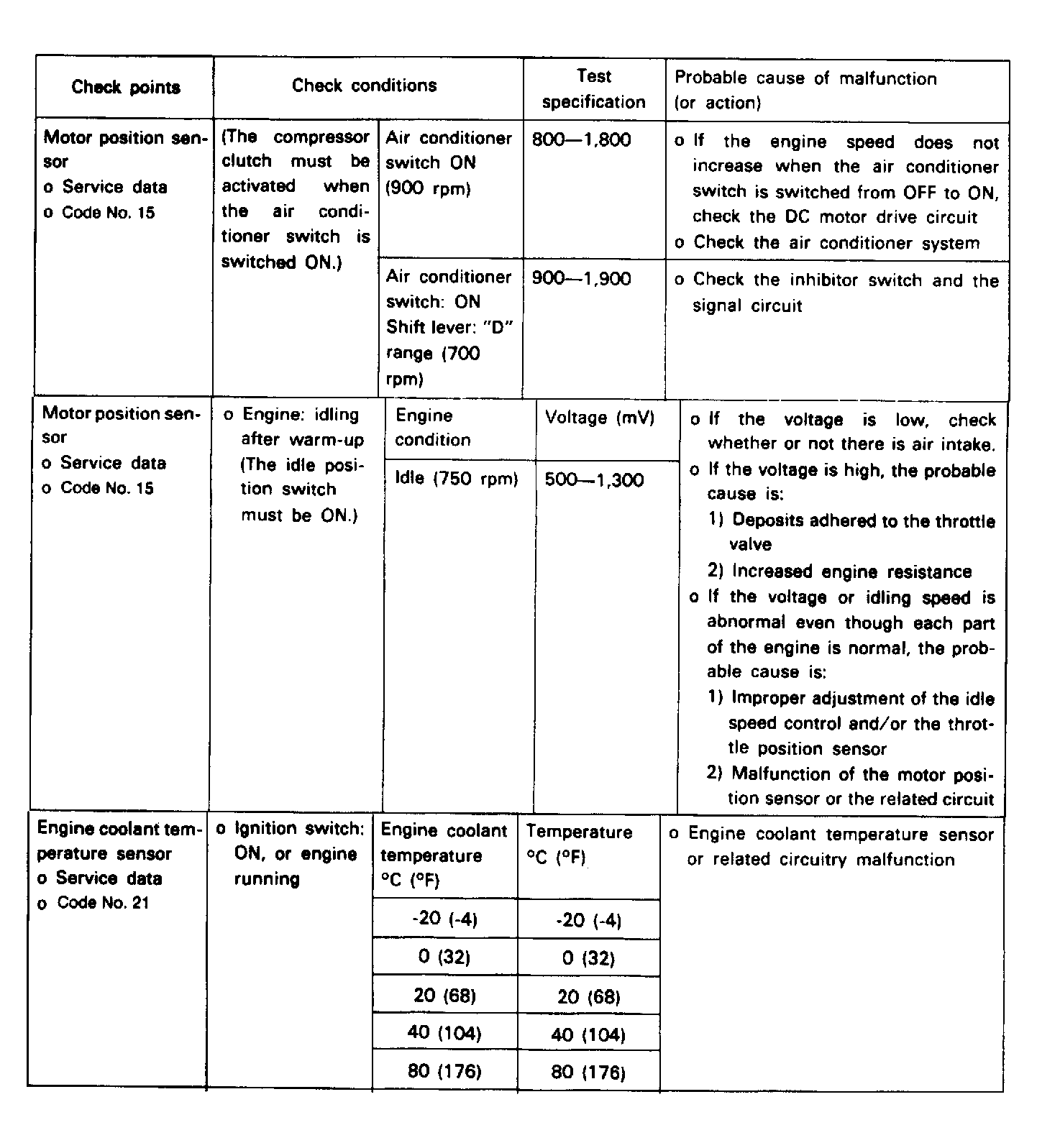

Fig 2: Code Chart (2 of 5)

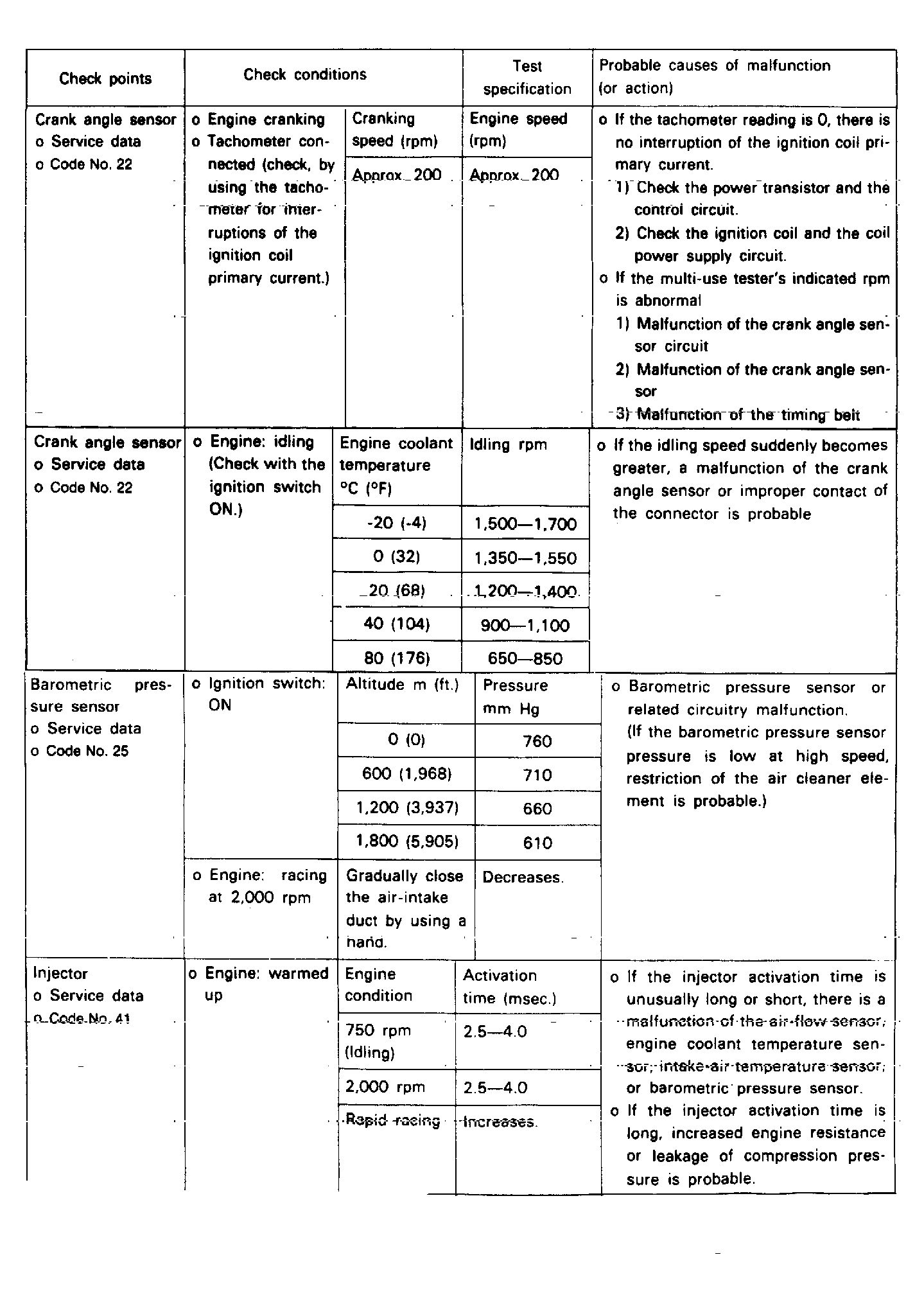

Fig 3: Code Chart (3 of 5)

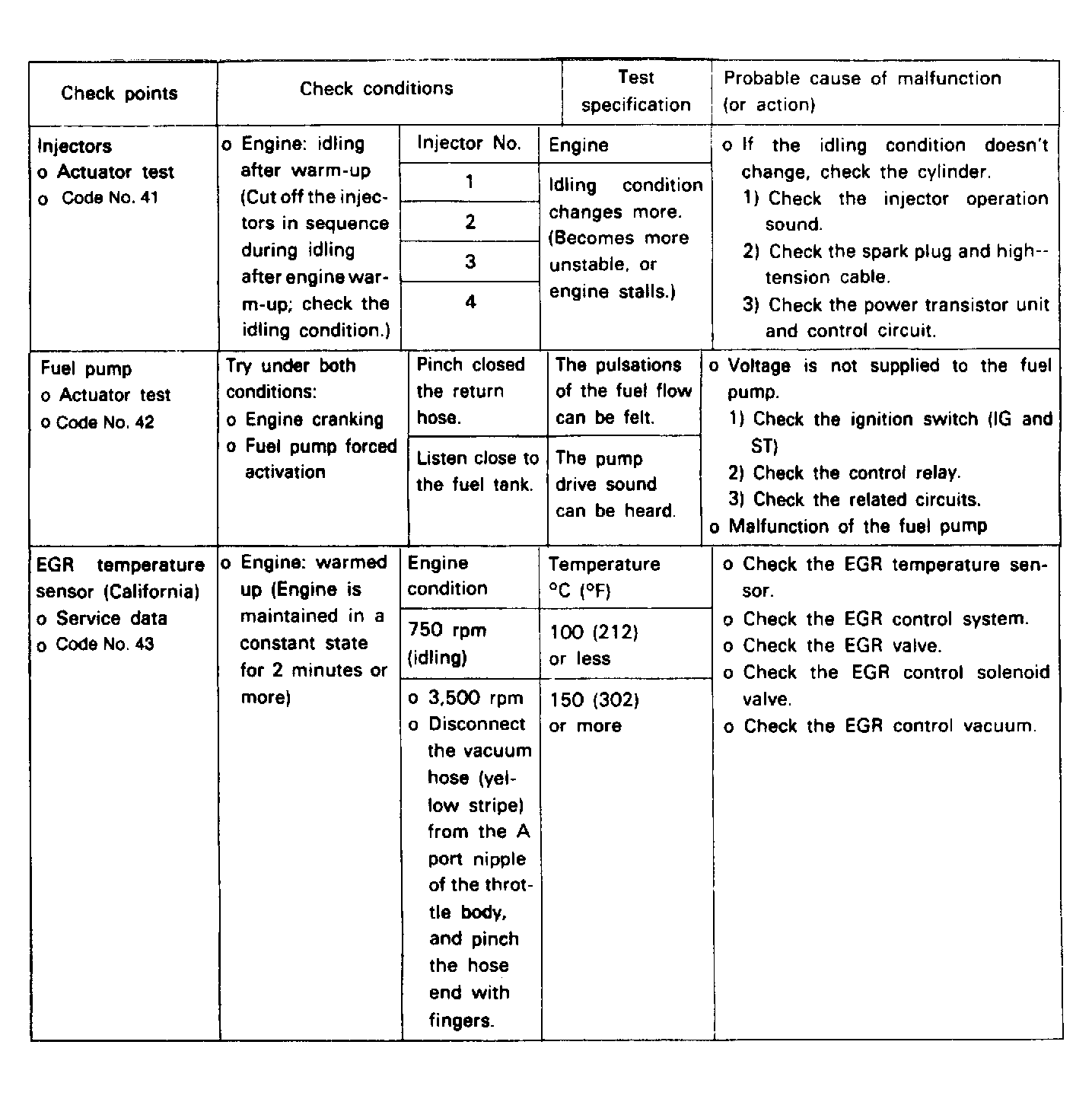

Fig 4: Code Chart (4 of 5)

Fig 5: Code Chart (5 of 5)
