Diode Assembly

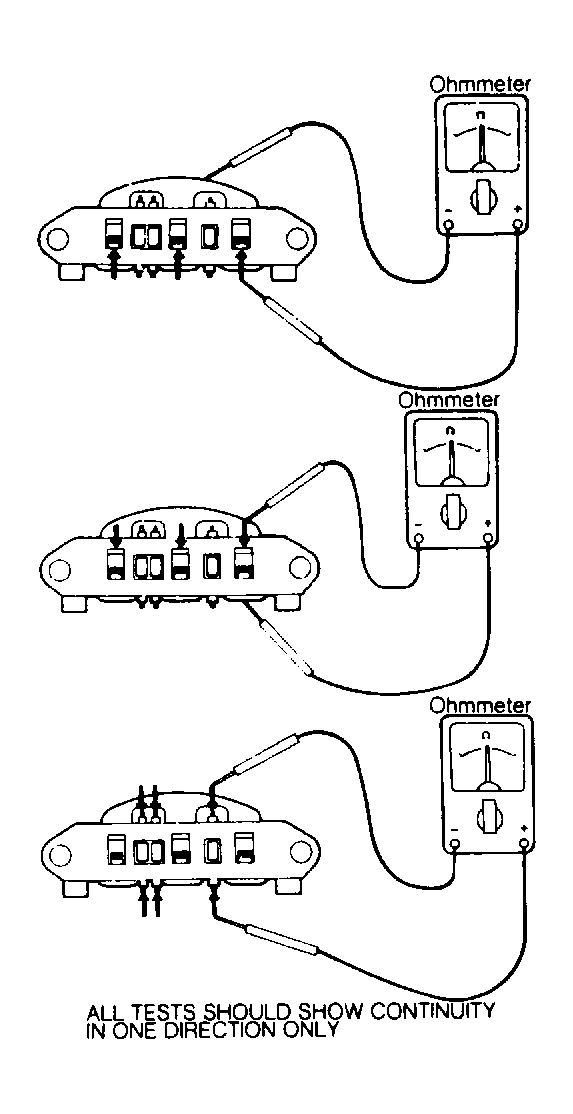

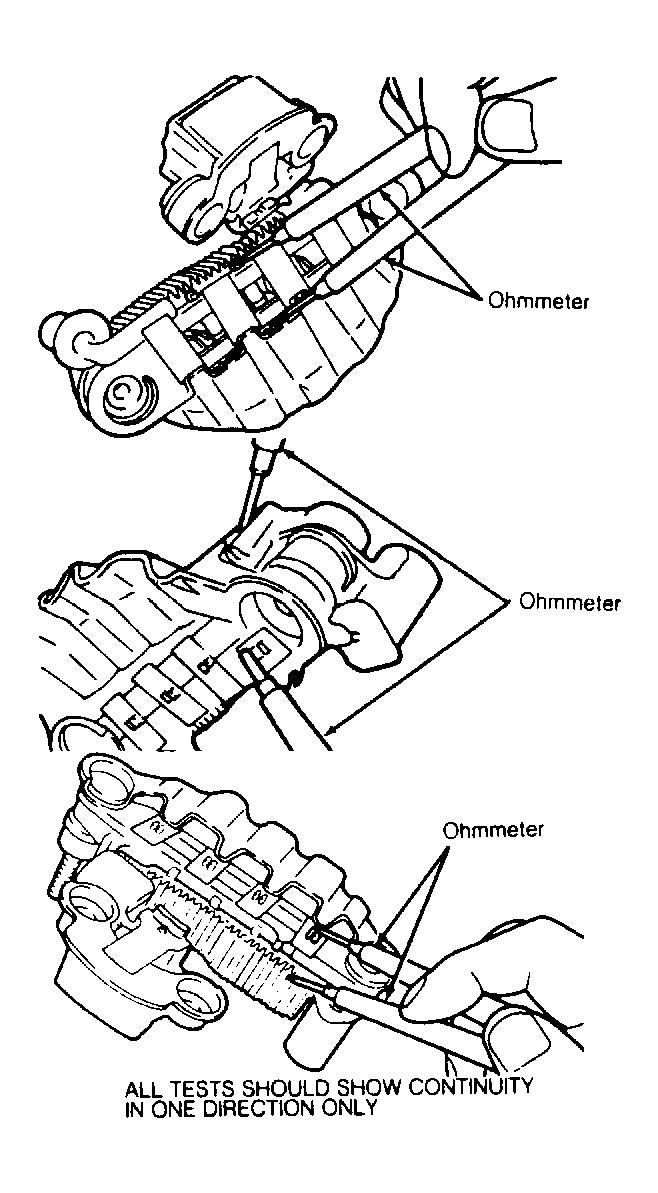

- Check each diode with ohmmeter in both directions. If diodes show large resistance in one direction and no resistance in the other direction, diodes are normal. See Fig 1 or Fig 2 .
- If diodes show small resistance in both directions, it is shorted. If large resistance is shown in both directions, diode is open. If any diode is defective, replace rectifier assembly.
