Hold-In Test

Disconnect "M" terminal. Apply 12 volts to "S" terminal and ground case to pull-in plunger. See Figure. If pinion remains out (plunger is pulled in), hold-in coil is good. If pinion does not remain out, replace solenoid.

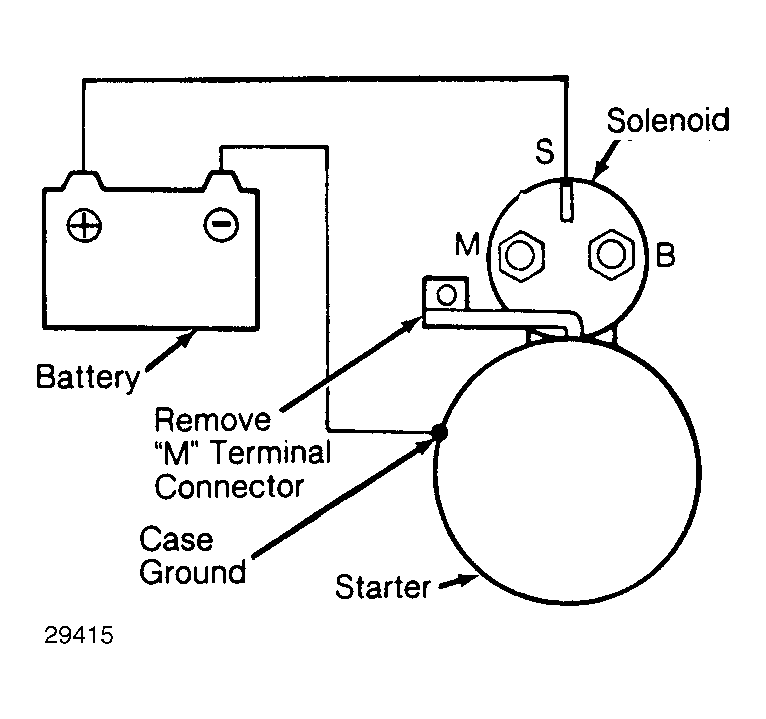

Fig 1: Solenoid Return Test

Courtesy of HYUNDAI MOTOR CO.
