Main Switch

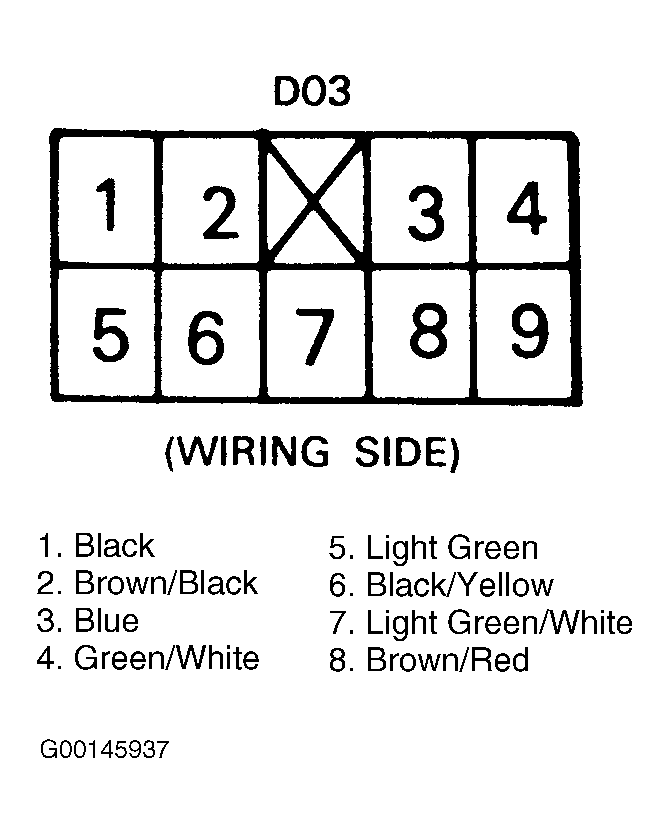

Remove power window main switch. Check continuity between specified terminals, with switch in specified position. See MAIN SWITCH CONTINUITY table. See Fig 1 . If continuity is not as specified, replace main switch.
MAIN SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Right Front | ||
| Up | 7 & 2; 6 & 1 | |
| Off | 2, 6 & 1 | |
| Down | 7 & 6; 2 & 1 | |
| Left Front | ||
| Up | 5 & 3; 8 & 1 | |
| Off | 3, 8 & 1 | |
| Down | 5 & 8; 3 & 1 | |
