Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

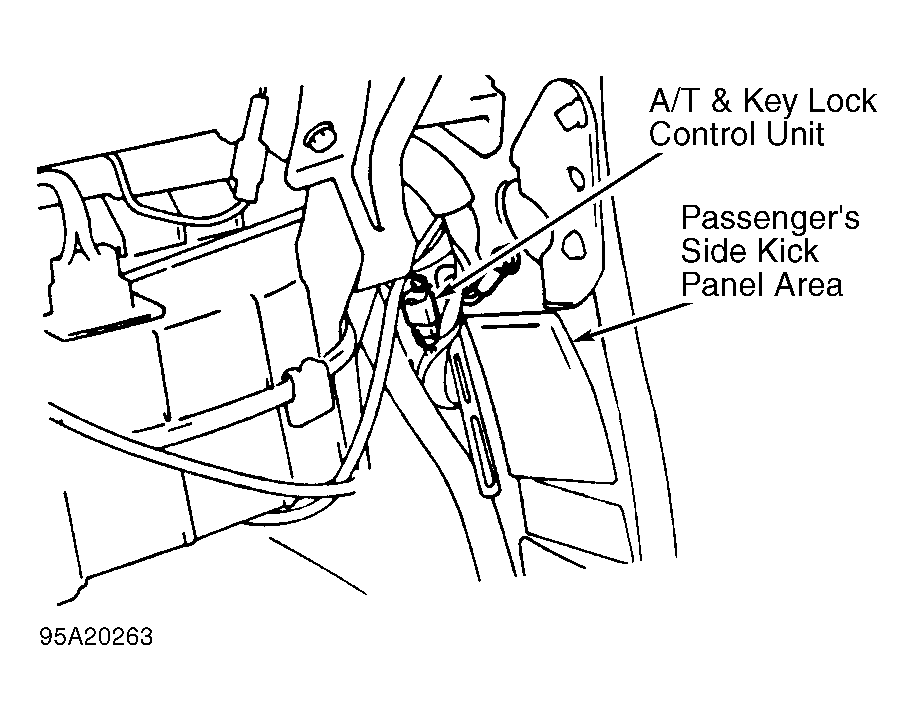

| A/T & Key Lock Control Unit | Behind right kick panel. See Figure . |
| Cruise Control Unit | Behind right side of dash, above kick panel. |
| Daytime Running Light (DRL) Control Unit (Canada) | On right front inner fender panel, near coolant reservoir. |
| Engine Control Unit (ECM) | Behind left side of dash, below steering column. See Figure . |
| Time & Alarm Control Unit (TACU) | Under front driver's seat. |

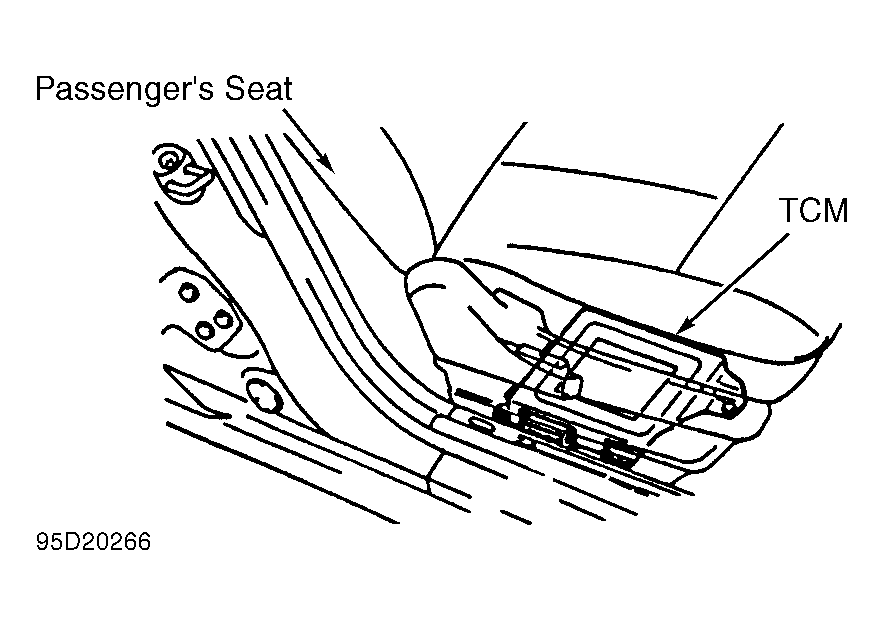

| Transmission Control Module (TCM) | Under front passenger's seat. See Figure . |
