Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

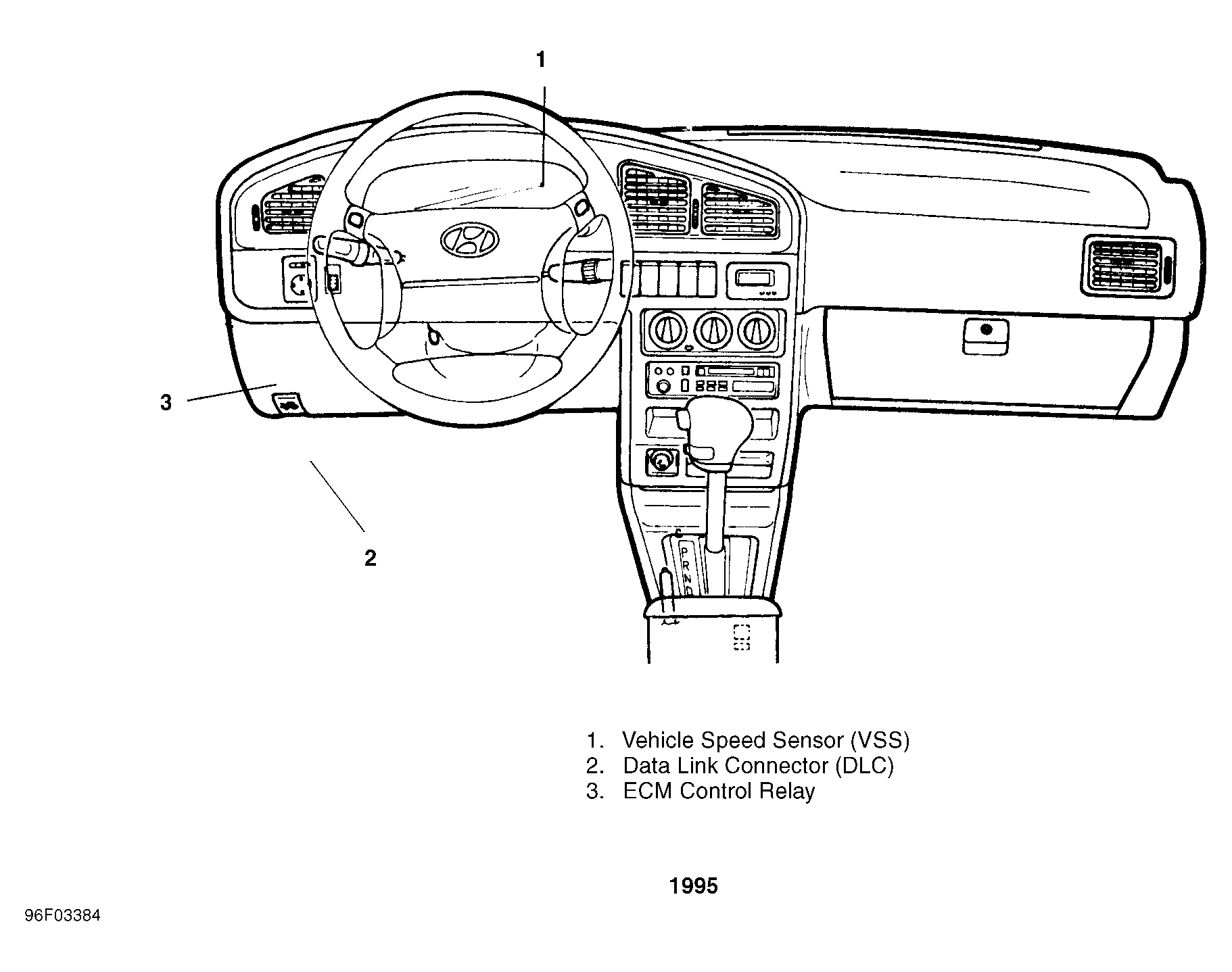

Fig 1: Dash (1995)

Fig 2: Dash (1996)

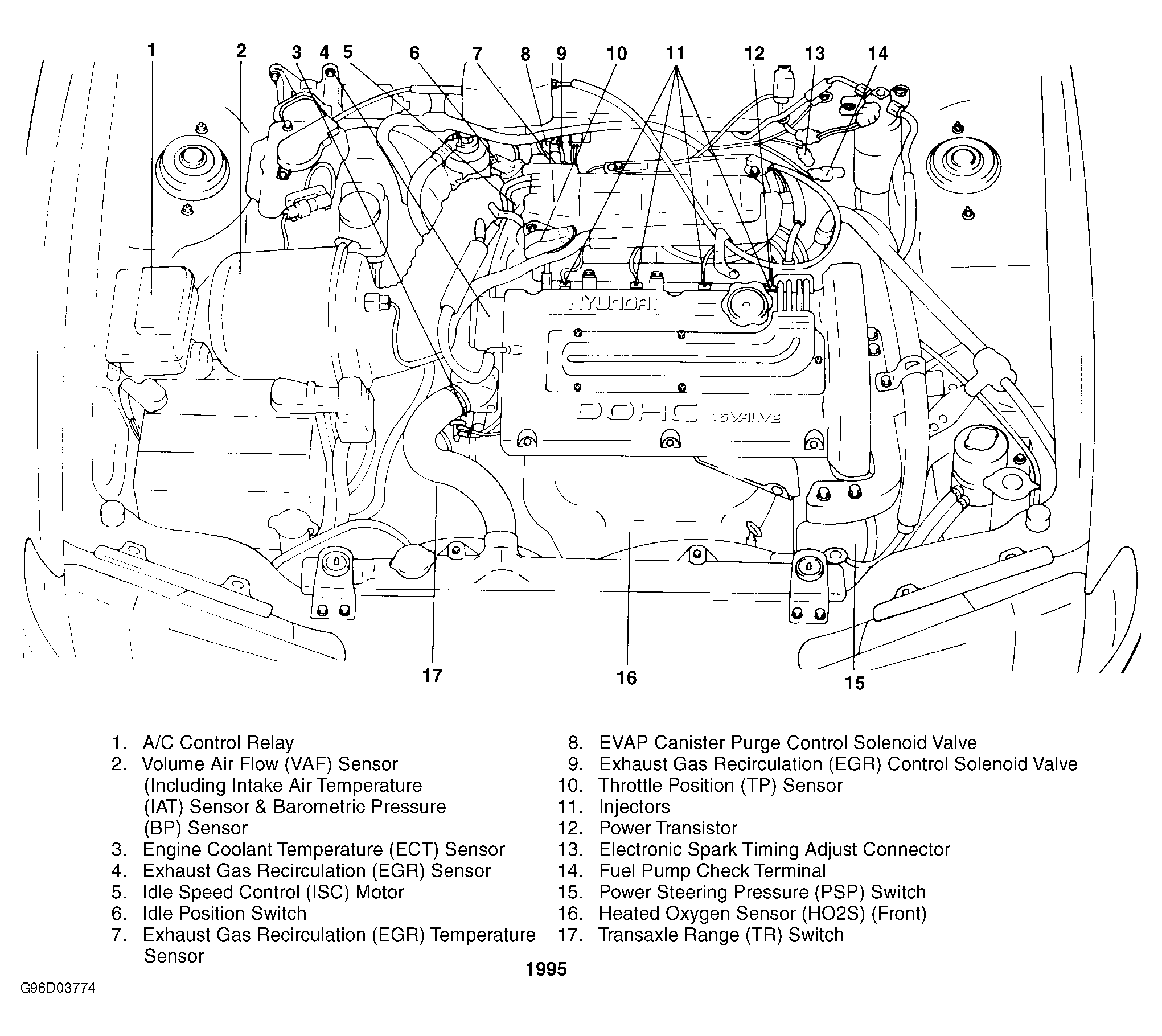

Fig 3: Engine Compartment (1995)

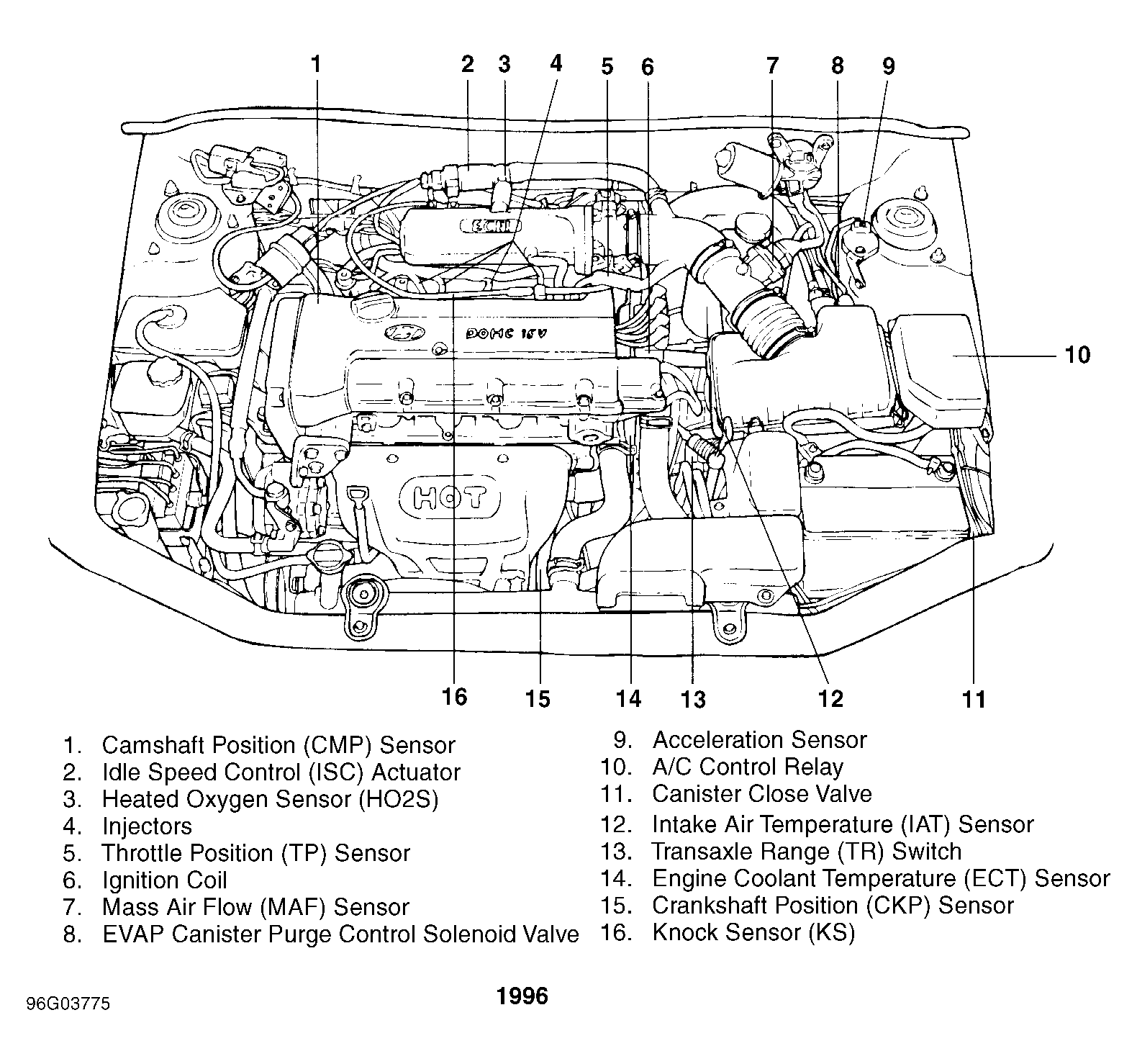

Fig 4: Engine Compartment (1996)
