Power Circuits

Turn ignition on. Check for battery voltage at ECM power terminals. See POWER TERMINAL IDENTIFICATION table. If battery voltage is not present, check operation of SFI control relay. See RELAYS.

GROUND TERMINAL IDENTIFICATION

Application ECM Terminals No. (1)
Elantra 28 & 55
(1) See Fig 1
POWER TERMINAL IDENTIFICATION

Application ECM Terminals No. (1)
Elantra 25 & 52
(1) See Fig 1

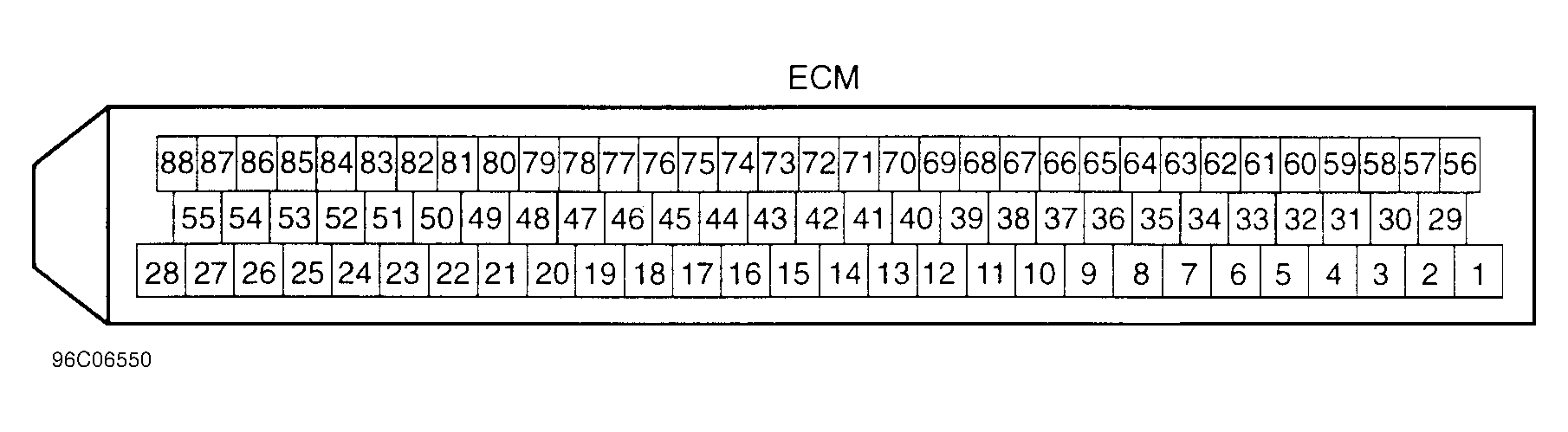

Fig 1: Identifying ECM Harness Connector (Elantra)
G96C06550Courtesy of HYUNDAI MOTOR CO.
