Service Point Locations

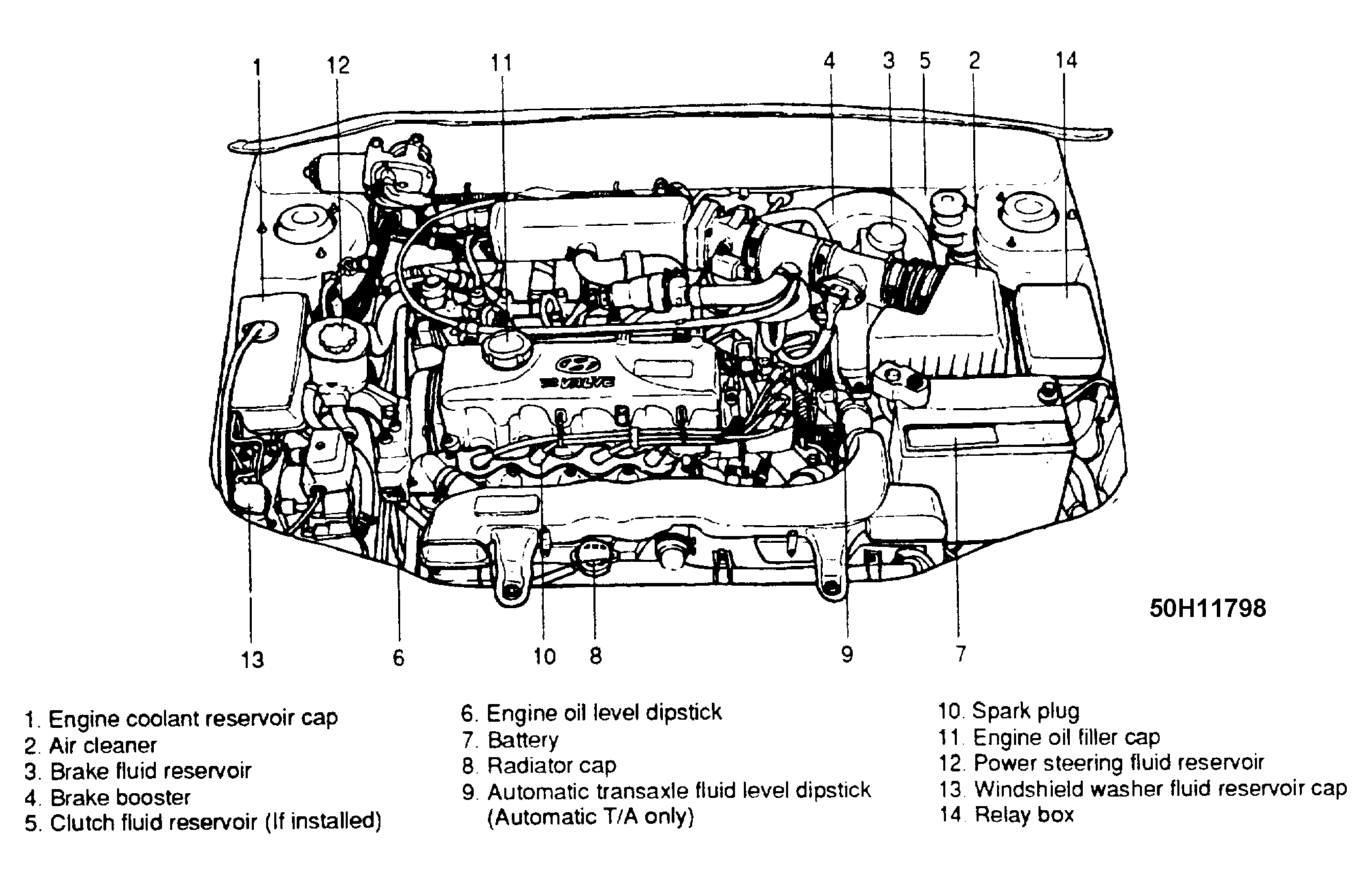

Fig 1: Service Point Locations

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Camshaft Timing Belt Alignment Marks (1.5L Typical)

Courtesy of HYUNDAI MOTOR CO.

NOTE: For more information regarding camshaft timing belt service refer to the 1.5L Engine article in the ENGINE MECHANICAL section.

Fig 3: Lift Point Locations

Courtesy of HYUNDAI MOTOR CO.

NOTE: For more information regarding jacking or hoisting the vehicle, refer to the JACKING & HOISTING article in the STEERING AND SUSPENSION section.
