Service Point Locations

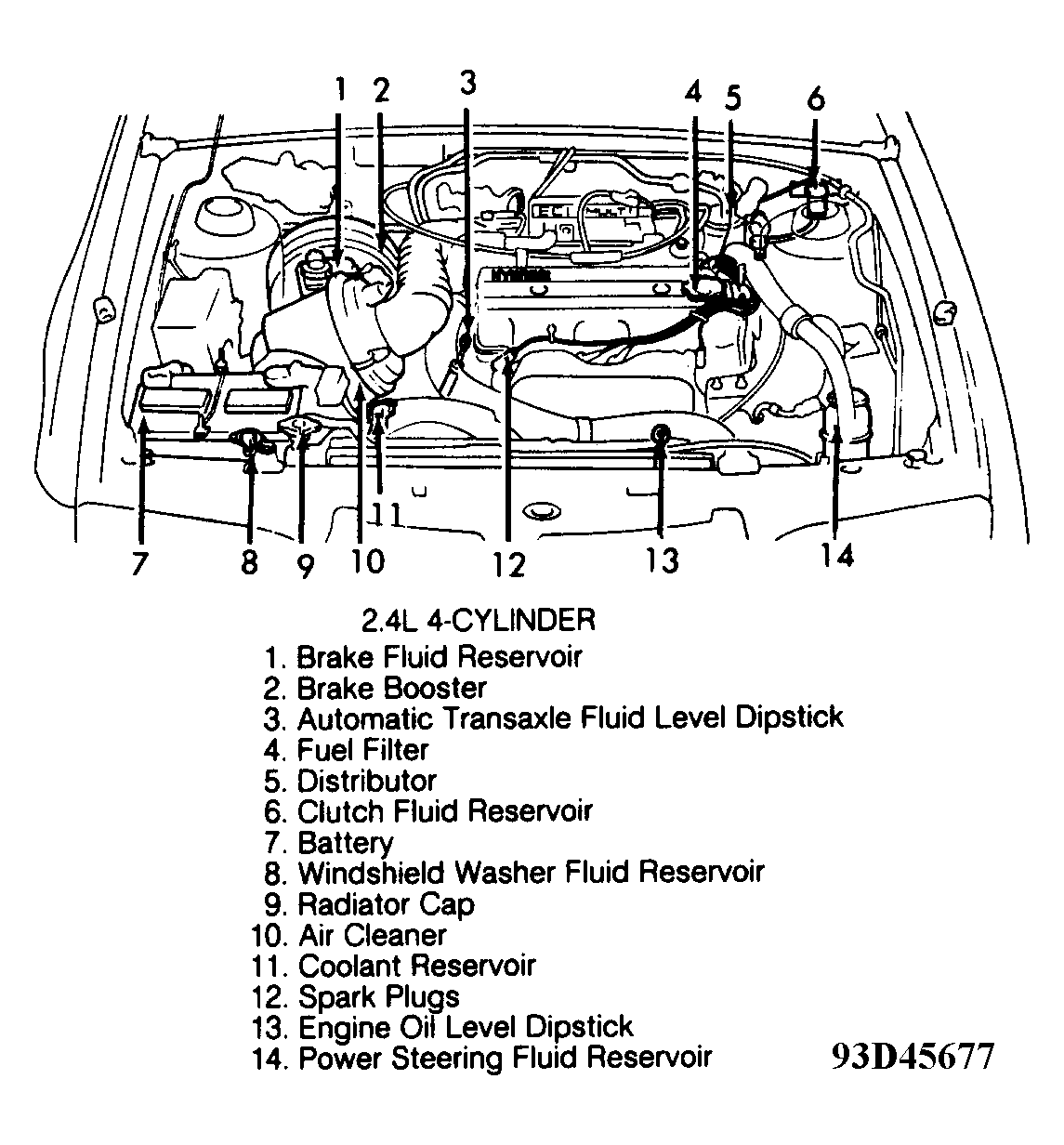

Fig 1: Service Point Locations (2.4L 4-Cylinder Engine)
G93D45677Courtesy of HYUNDAI MOTOR CO.

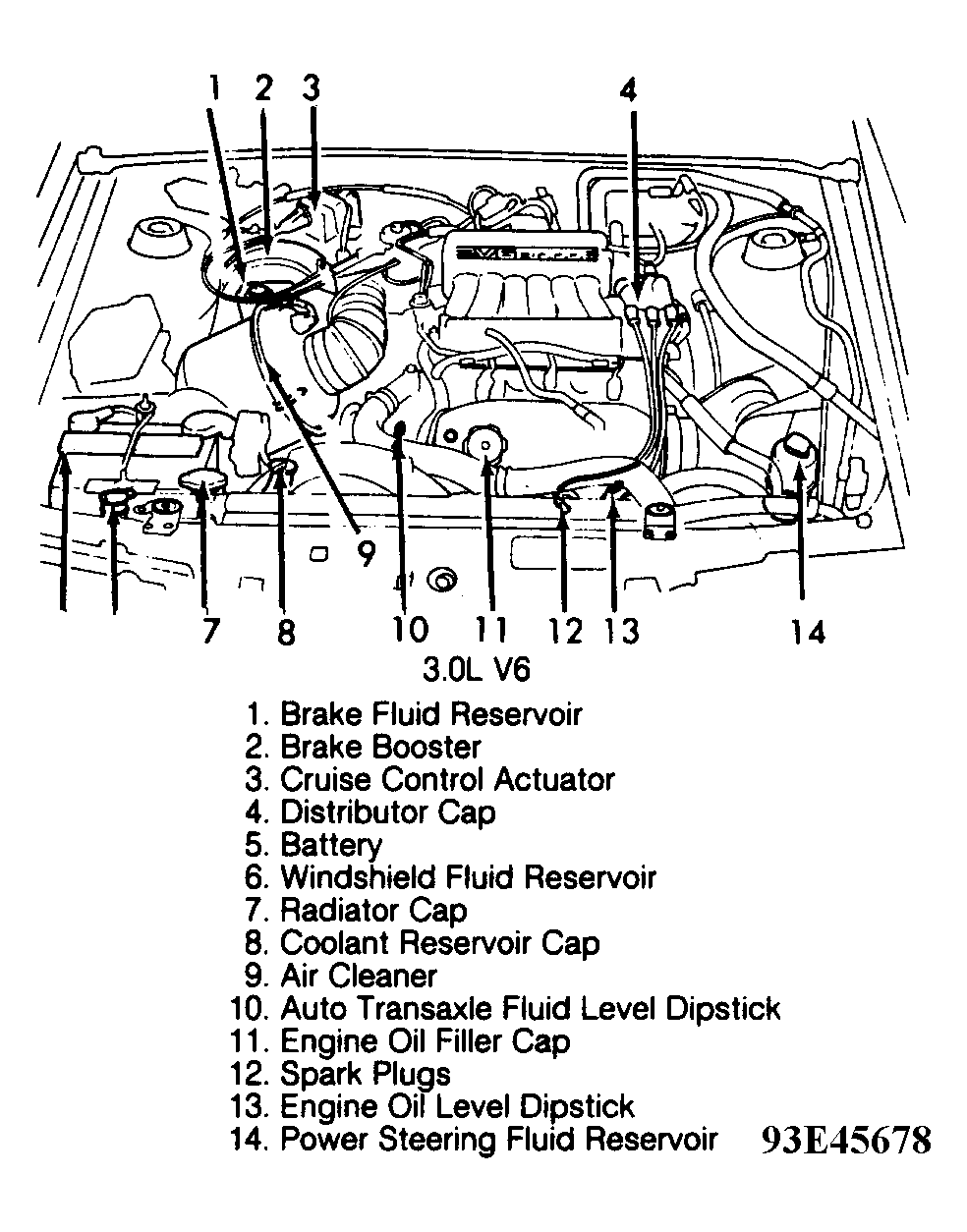

Fig 2: Service Point Locations (3.0L V6 Engine)
G93E45678Courtesy of HYUNDAI MOTOR CO.

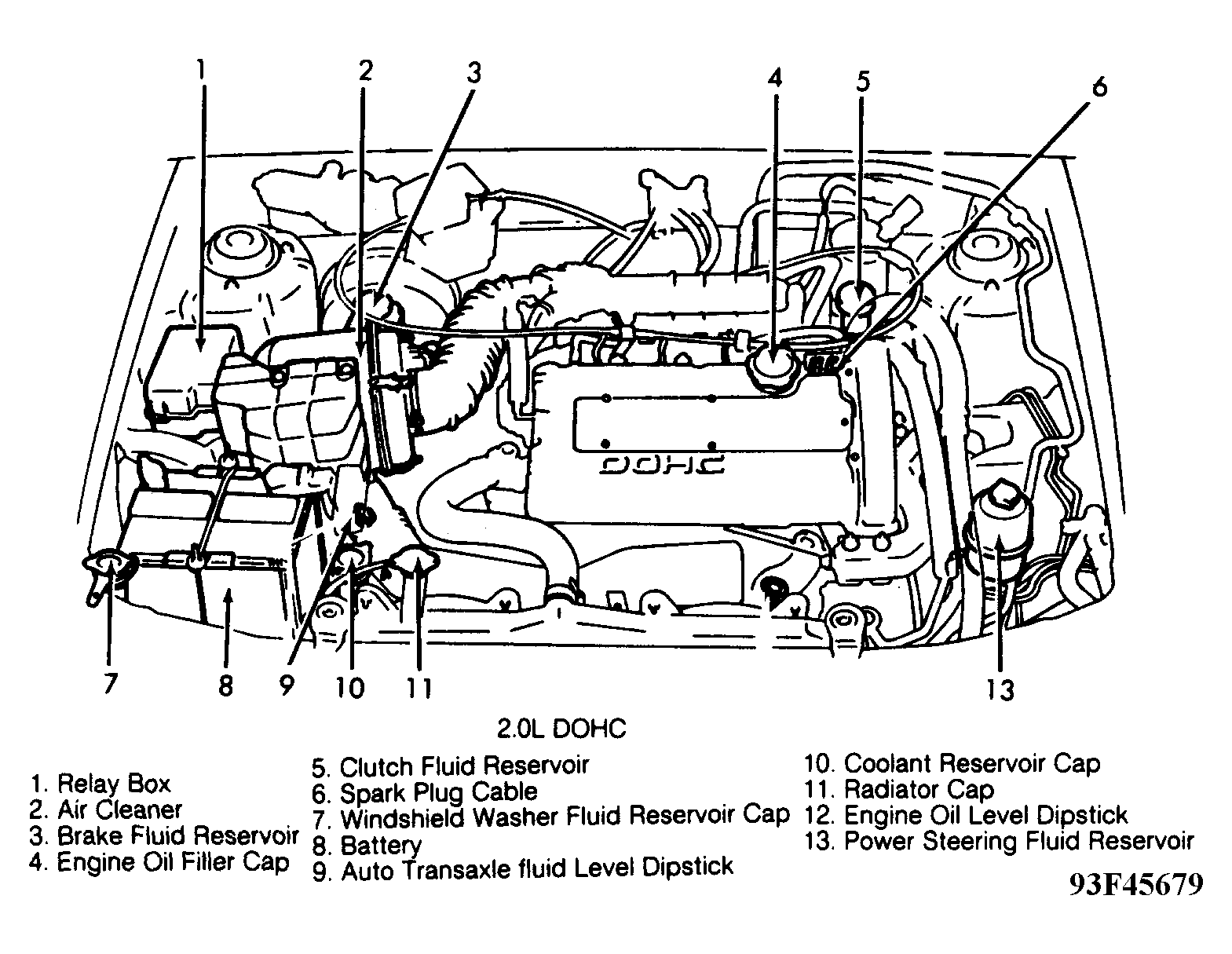

Fig 3: Service Point Locations (2.0L DOHC Engine)
G93F45679Courtesy of HYUNDAI MOTOR CO.
