Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| ABS Relay Box | Right front corner of engine compartment. |
| Dash Fuse Box | Below left side of dash, at kick panel. |

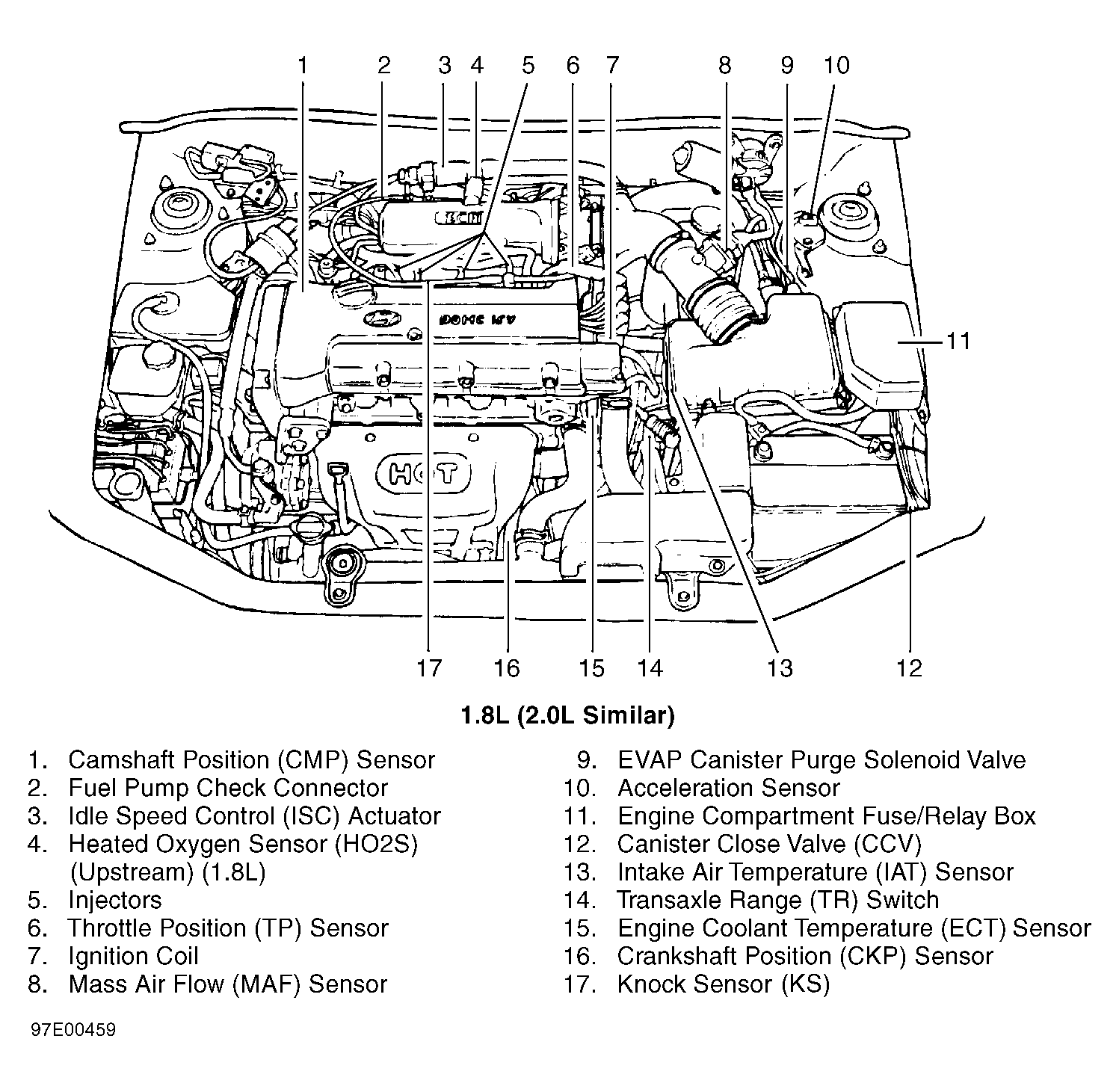

| Engine Compartment Fuse/Relay Box | Left side of engine compartment, in front of shock tower. See Figure . |
| Fusible Links A Through K | In engine compartment fuse/relay box. |
| Passenger Compartment Relay Box | Behind left side of dash, left of steering column. |
