Start Relay Test: 5-Pin

  1. Remove starter relay. Check continuity between relay terminals No. 3 and 5, and between terminals No. 1 and 2. See Fig 1 . Continuity should exist between terminals No. 3 and 5. Continuity should not exist between terminals No. 1 and 2. If continuity is as specified, go to next step. If continuity is not as specified, replace starter relay.
  2. Apply battery voltage between terminals No. 3 and 5. Continuity should now exist between terminals No. 1 and 2. If continuity is not as specified, replace starter relay. If continuity is as specified, starter relay is okay at this time.

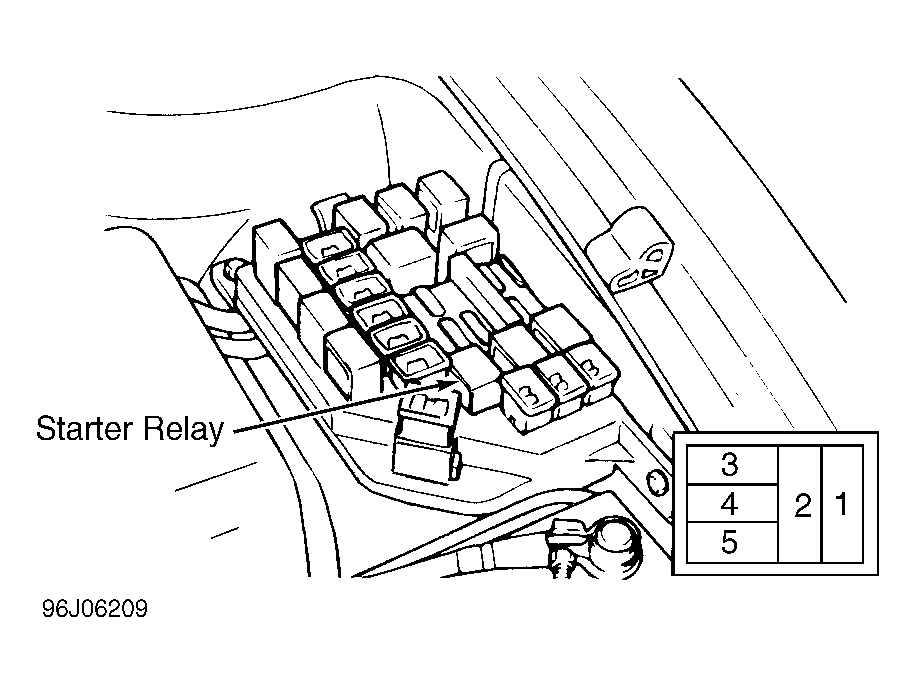

Fig 1: Identifying Starter Relay Terminals (5-Pin)
G96J06209Courtesy of HYUNDAI MOTOR CO.
