Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

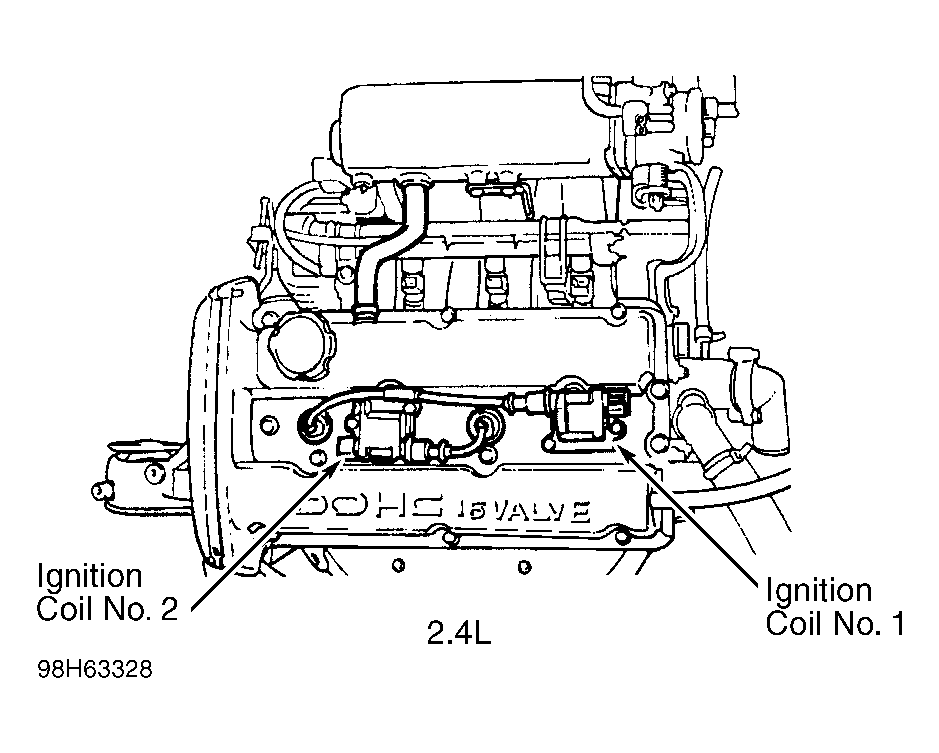

Fig 1: Top Front Of Engine

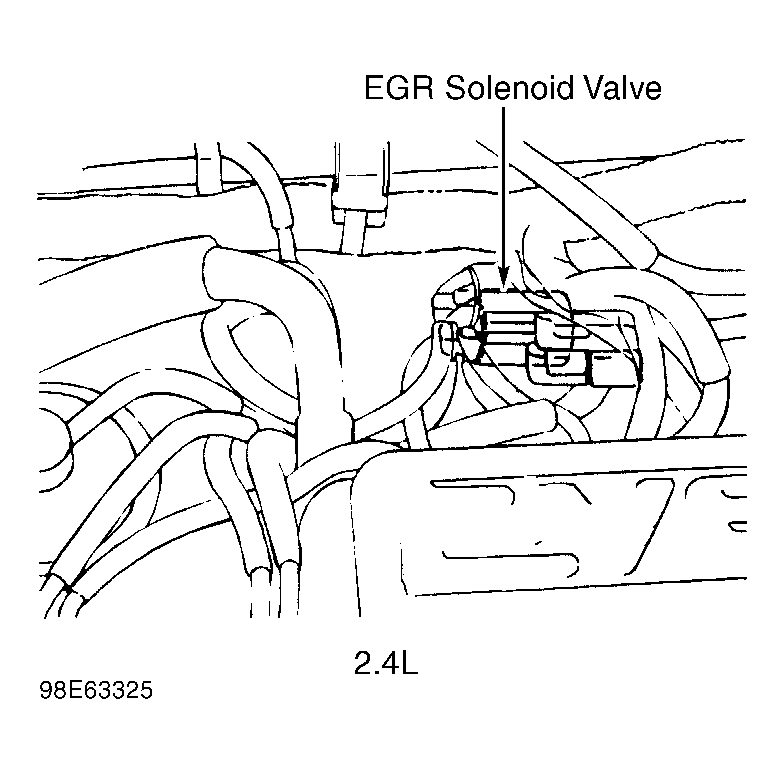

Fig 2: Top Of Transaxle

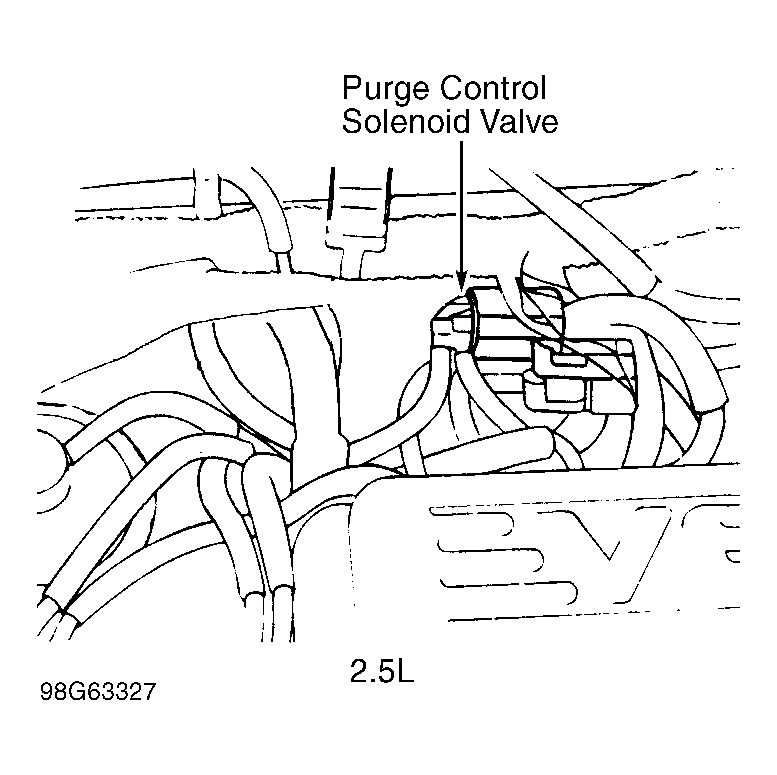

Fig 3: Top Of Engine

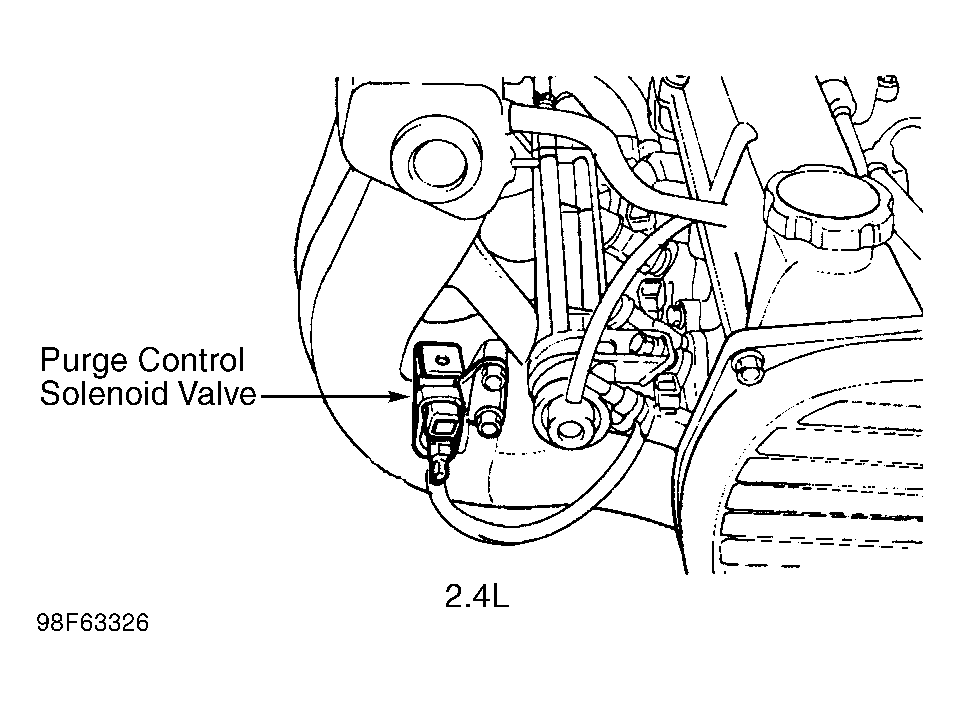

Fig 4: Top Of Transaxle

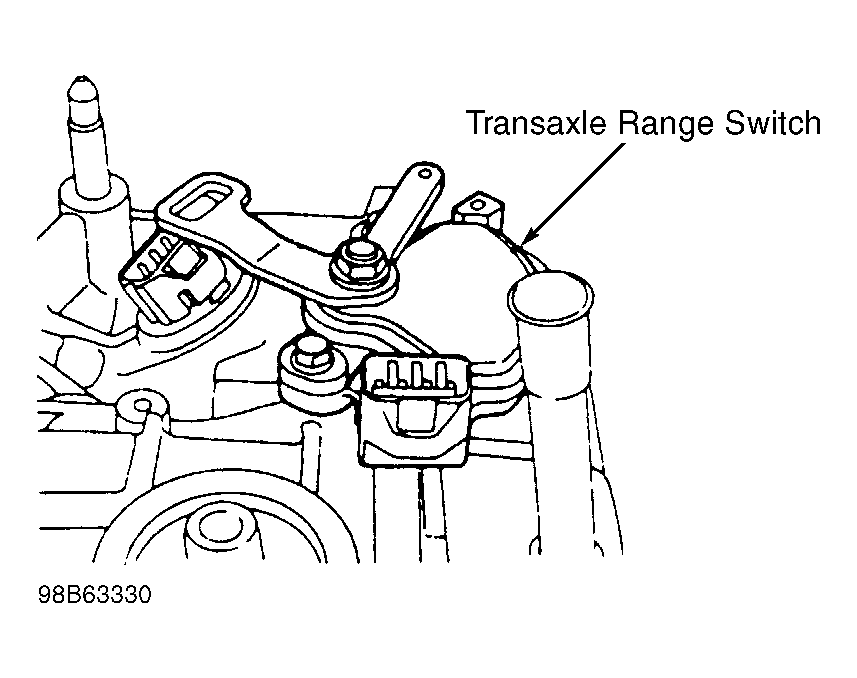

Fig 5: Top Of Engine

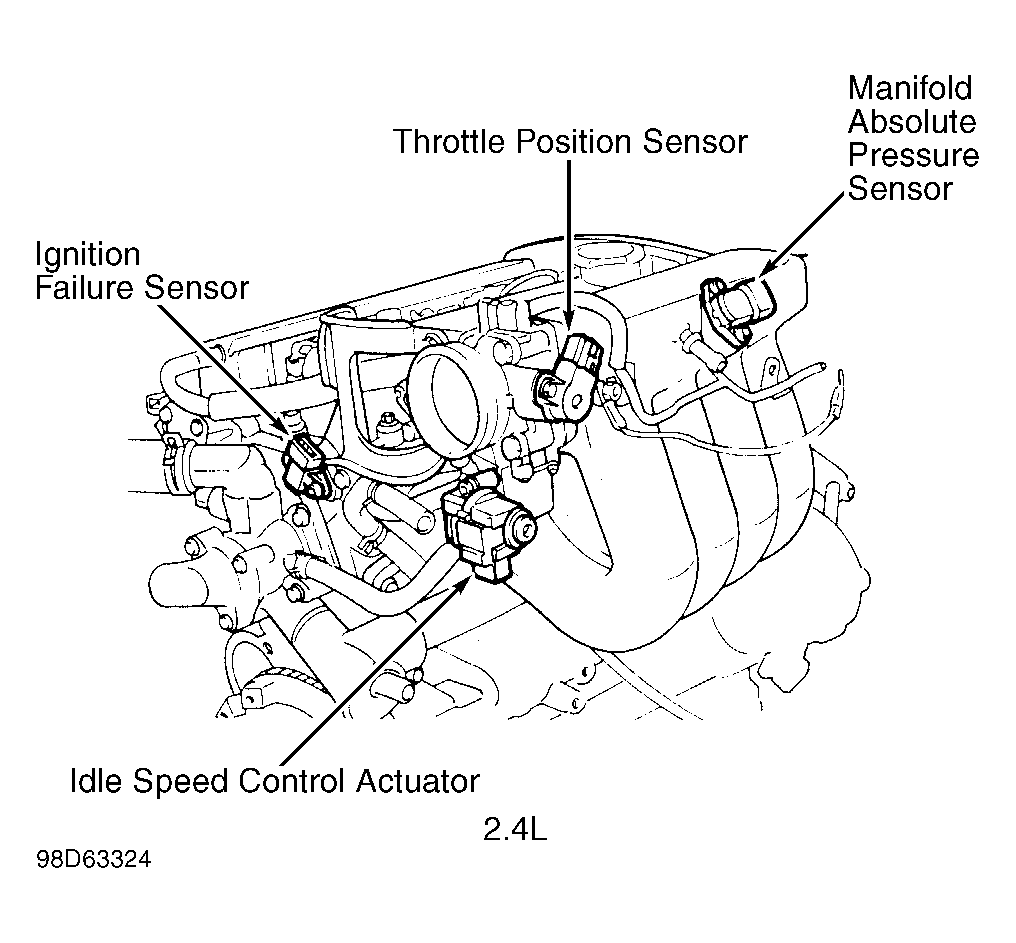

Fig 6: Top Right Side Of Engine

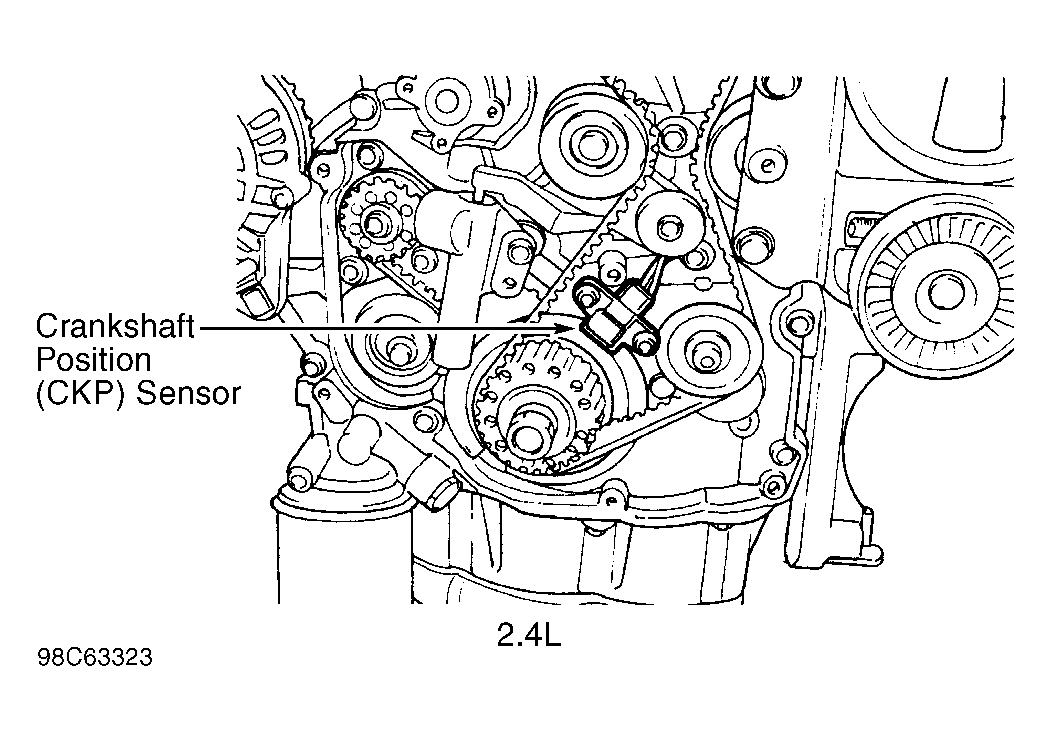

Fig 7: Front Of Engine

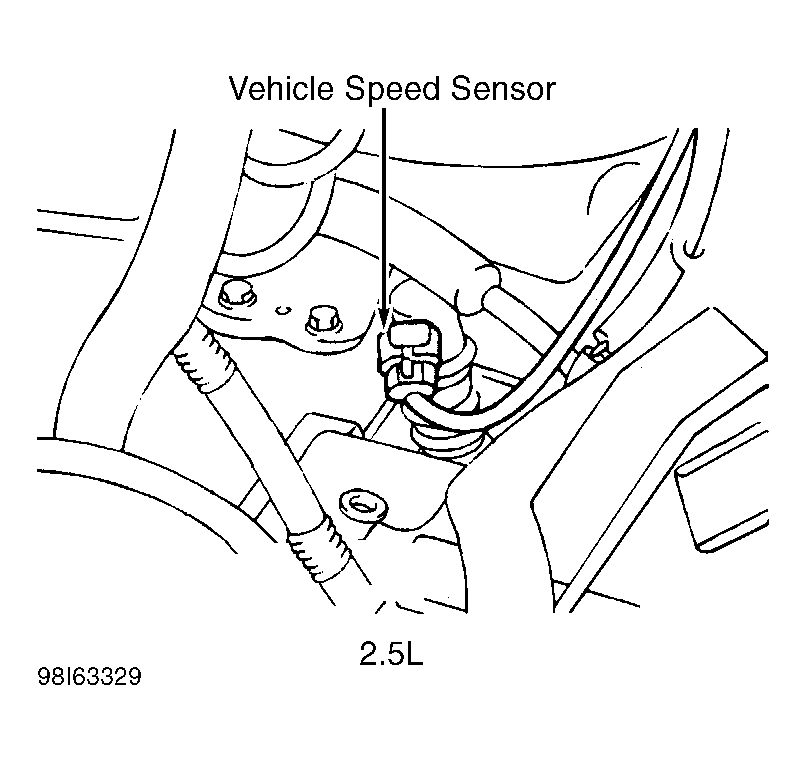

Fig 8: Top Of Engine

Fig 9: Top Of Engine

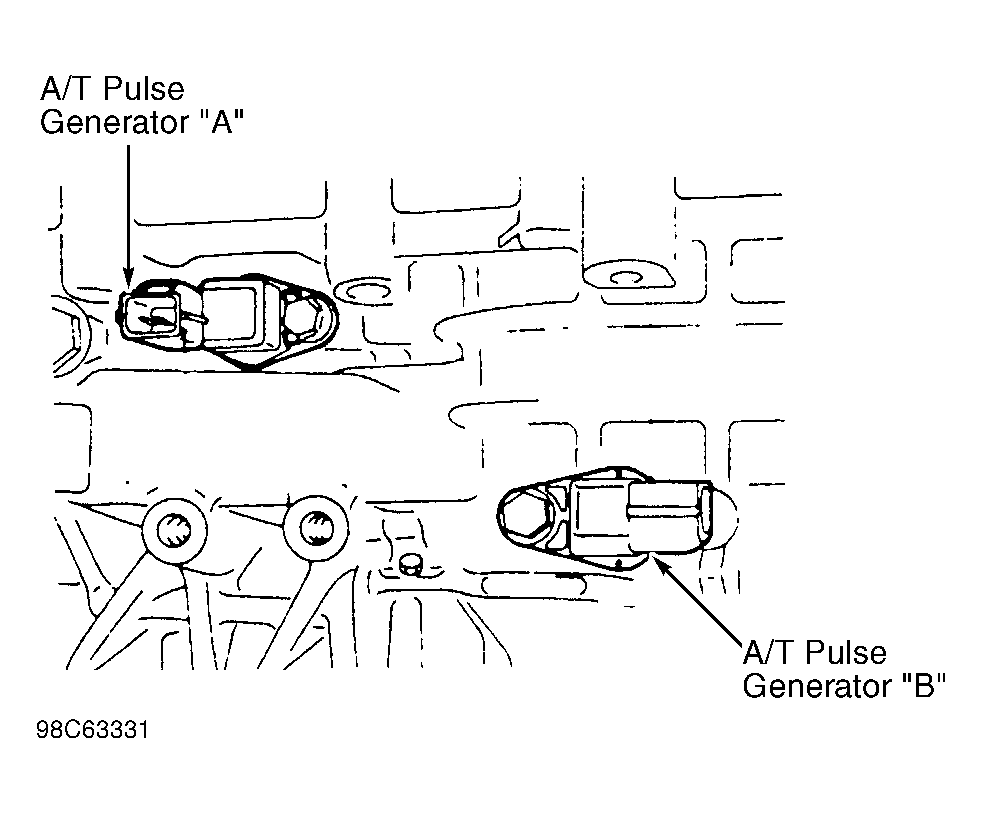

Fig 10: Top Of Transaxle
