Automatic Transaxle Shift Control Components: Notes

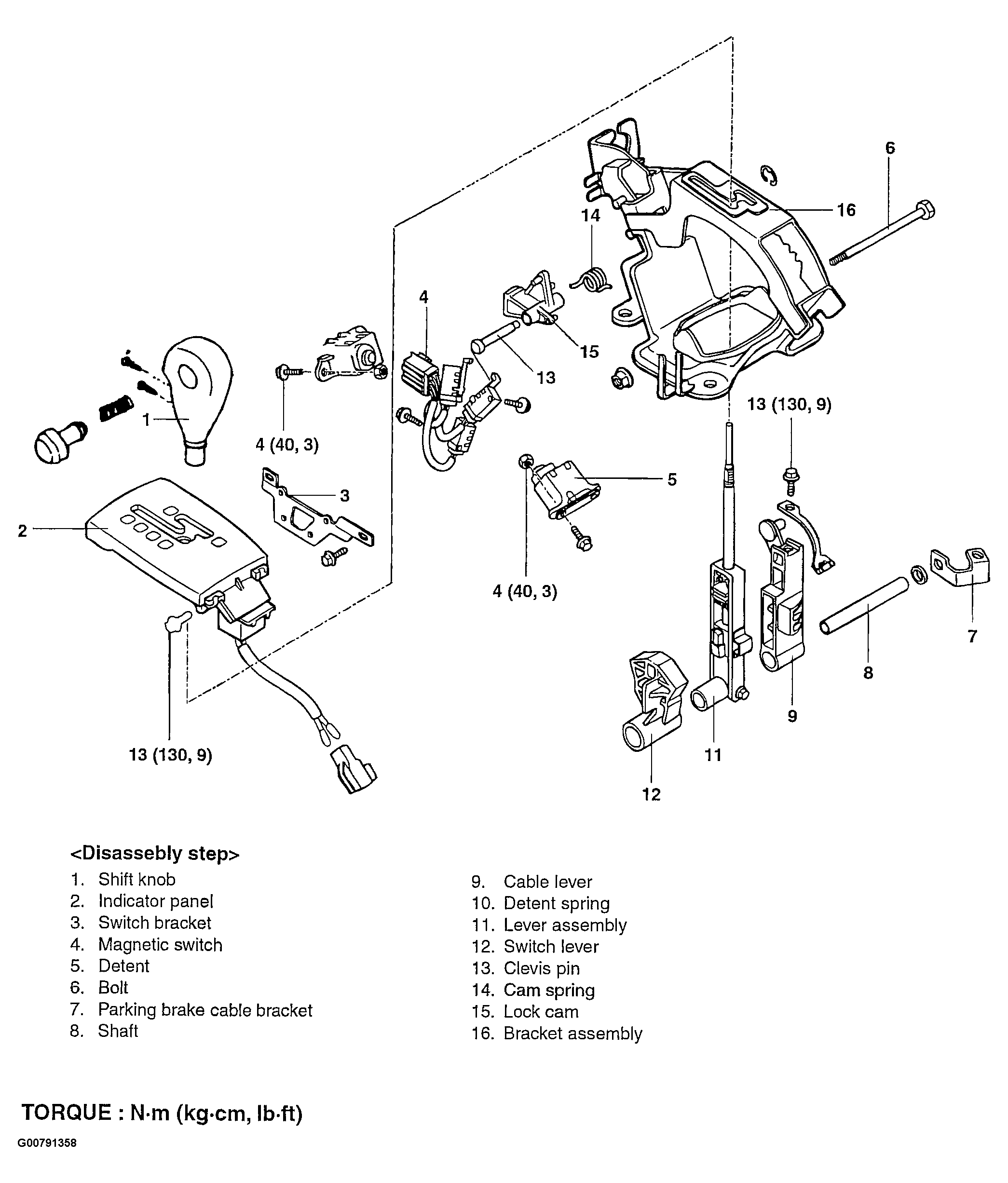

Fig 1: Automatic Transaxle Shift Control Components

G00791358

Courtesy of HYUNDAI MOTOR CO.
