Wheel Speed Sensor: Inspection

Connect an ohmmeter between the wheel speed sensor terminals and measure the resistance.
Service standard
1. Front: 1000-1200 ohms
2. Rear: 1000-1200 ohms

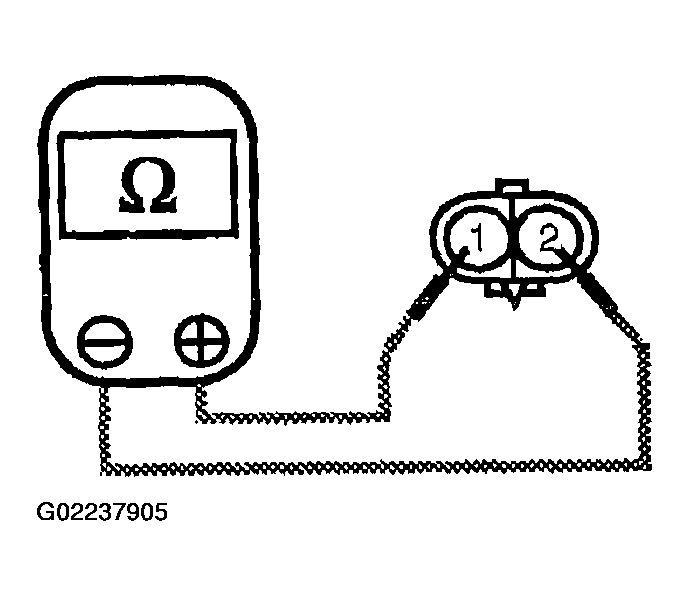

Fig 1: Measuring Wheel Speed Sensor Resistance
Connect a voltmeter between the wheel speed sensor terminals, and measure the voltage by turning the wheel.
NOTE: Set the voltmeter to measure AC voltage.
Service standard: AC voltage detected.

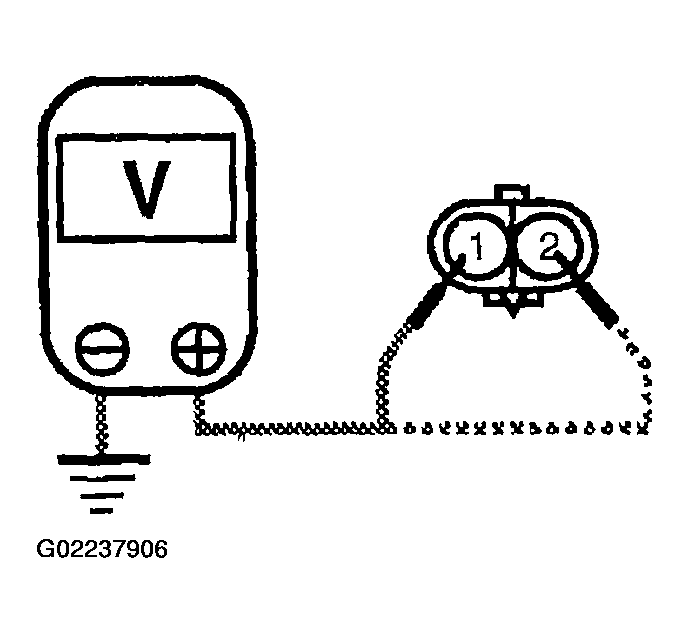

Fig 2: Measuring Wheel Speed Sensor Voltage
