Except Tiburon
NOTE:
Power window sub-switch testing for XG300 is not available from manufacturer.

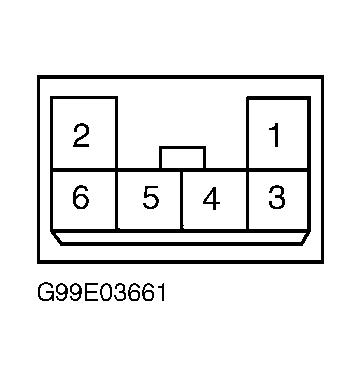

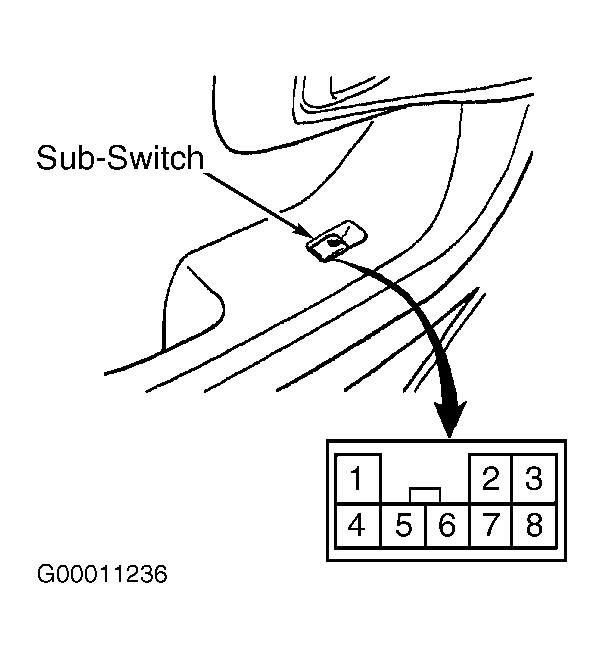

Turn ignition off. Remove sub-switch to be tested. Check continuity between specified terminals with switch in specified position. See SUB-SWITCH CONTINUITY table. See Fig 1 or Fig 2 . If continuity is not as specified, replace sub-switch.
SUB-SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals No. | ||
|---|---|---|---|
| Accent | |||
| Up | 1 & 4; 2 & 6 | ||
| Off | 1 & 3; 2 & 6 | ||
| Down | 1 & 3; 2 & 4 | ||
| Elantra | |||
| Right Front | |||
| Up | 1 & 6; 3 & 4; 5 & 7 | ||
| Off | 1 & 8; 3 & 4; 5 & 7 | ||
| Down | 1 & 8; 3 & 6; 5 & 7 | ||
| Right Rear | |||
| Up | 1 & 8; 3 & 6; 5 & 7 | ||
| Off | 1 & 8; 3 & 4; 5 & 7 | ||
| Down | 1 & 6; 3 & 4; 5 & 7 | ||
| Left Rear | |||
| Up | 1 & 4; 3 & 6; 5 & 7 | ||
| Off | 1 & 4; 3 & 8; 5 & 7 | ||
| Down | 1 & 6; 3 & 8; 5 & 7 | ||
| Santa Fe & Sonata | |||
| Up | 1 & 3; 4 & 8 | ||
| Off | 1 & 3; 4 & 6 | ||
| Down | 1 & 8; 4 & 6 | ||
