Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

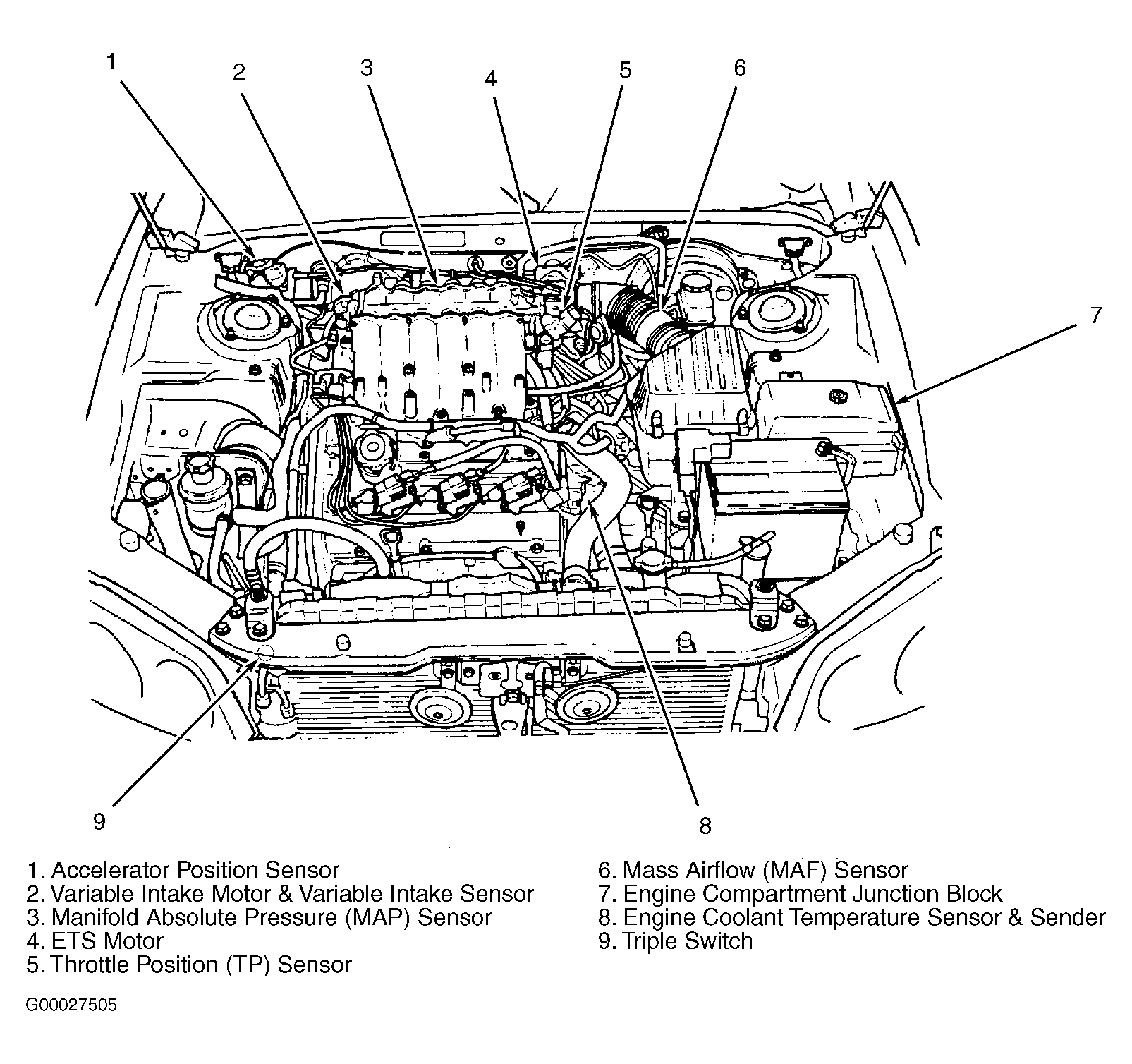

Fig 1: Engine Compartment
G00027505Courtesy of HYUNDAI MOTOR CO.
Fig 2: Upper Front Of Engine
G00027506Courtesy of HYUNDAI MOTOR CO.
Fig 3: Lower Front Of Engine
G00027507Courtesy of HYUNDAI MOTOR CO.
Fig 4: Passenger Compartment
G00027508Courtesy of HYUNDAI MOTOR CO.
