Home >> Hyundai >> 2001 >> XG300 Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Shift Control System >> Automatic Transaxle Shift Control >> Notes

Automatic Transaxle Shift Control: Notes

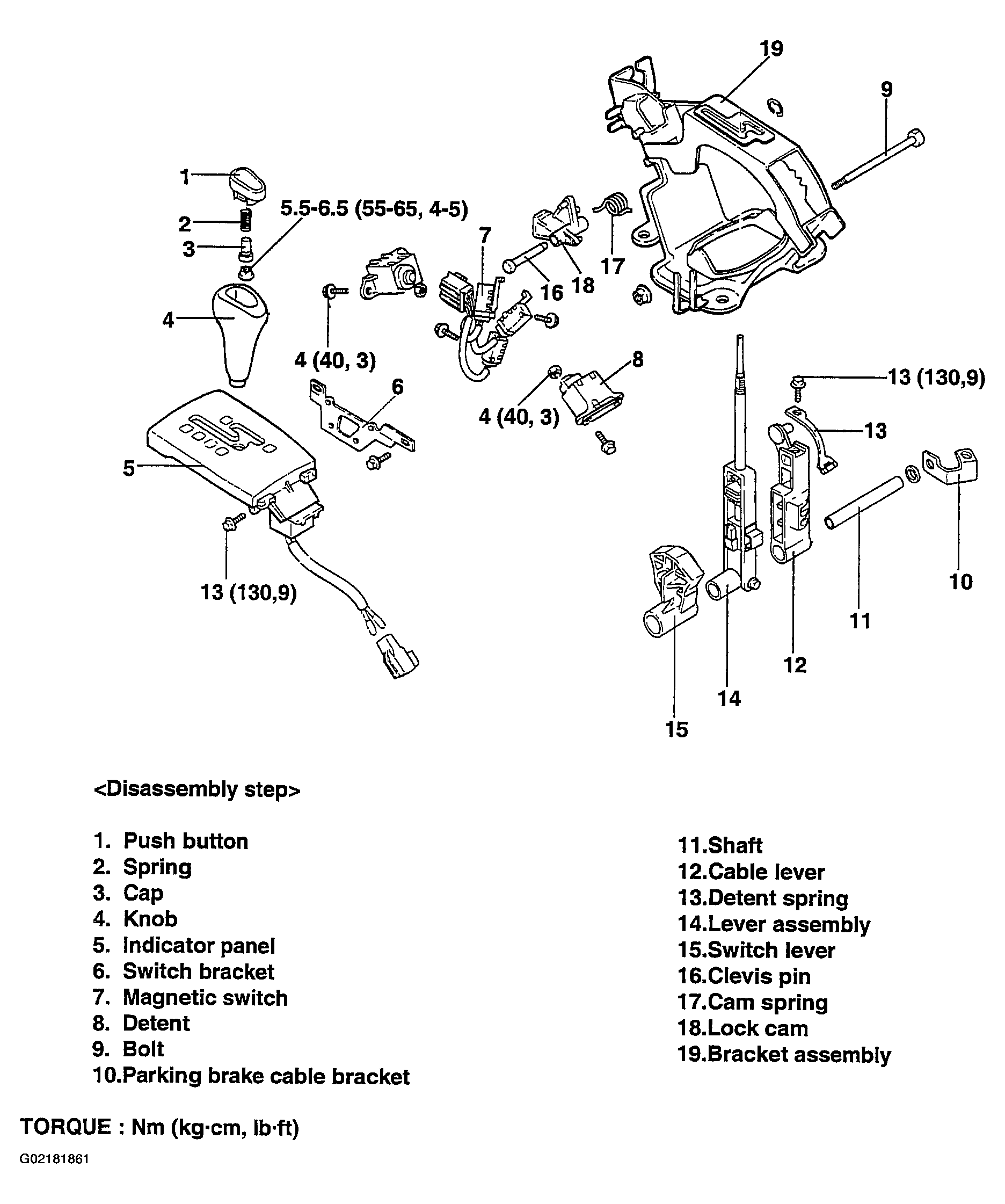

Fig 1: Automatic Transaxle Shift Control Components

G02181861
