Anti-Lock Braking System Control Module: Removal

Disconnect the clamp of power steering pressure hose.
Disconnect the HECU (Hydraulic and electronic Control Unit) and motor connector.

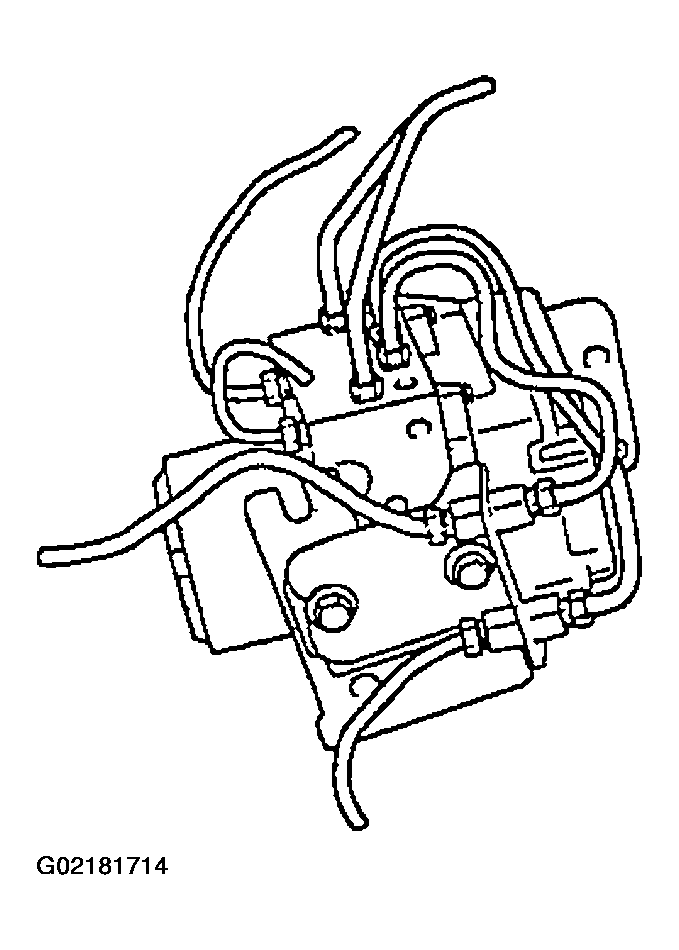

Fig 1: Disconnecting HECU Motor Connector
Disconnect the brake tubes from the HECU.

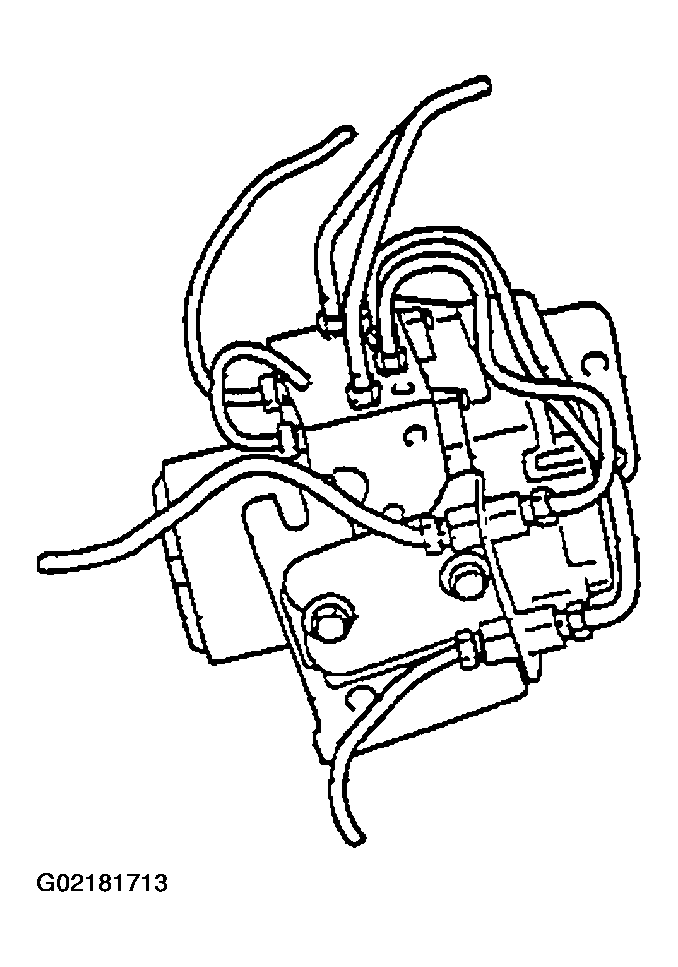

Fig 2: Identifying Brake Tubes & HECU
Remove the HECU bracket mounting bolt and the HECU.
CAUTION:
1. Never attempt to disassemble the HECU.
2. The HECU must be transported and stored in the upright position and with sealed ports. The HECU must not be drained.
Fig 3: Identifying HECU
