Home >> Hyundai >> 2002 >> Accent GL, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Automatic Transaxle System >> Automatic Transaxle Shift Control >> Components

Automatic Transaxle Shift Control: Components

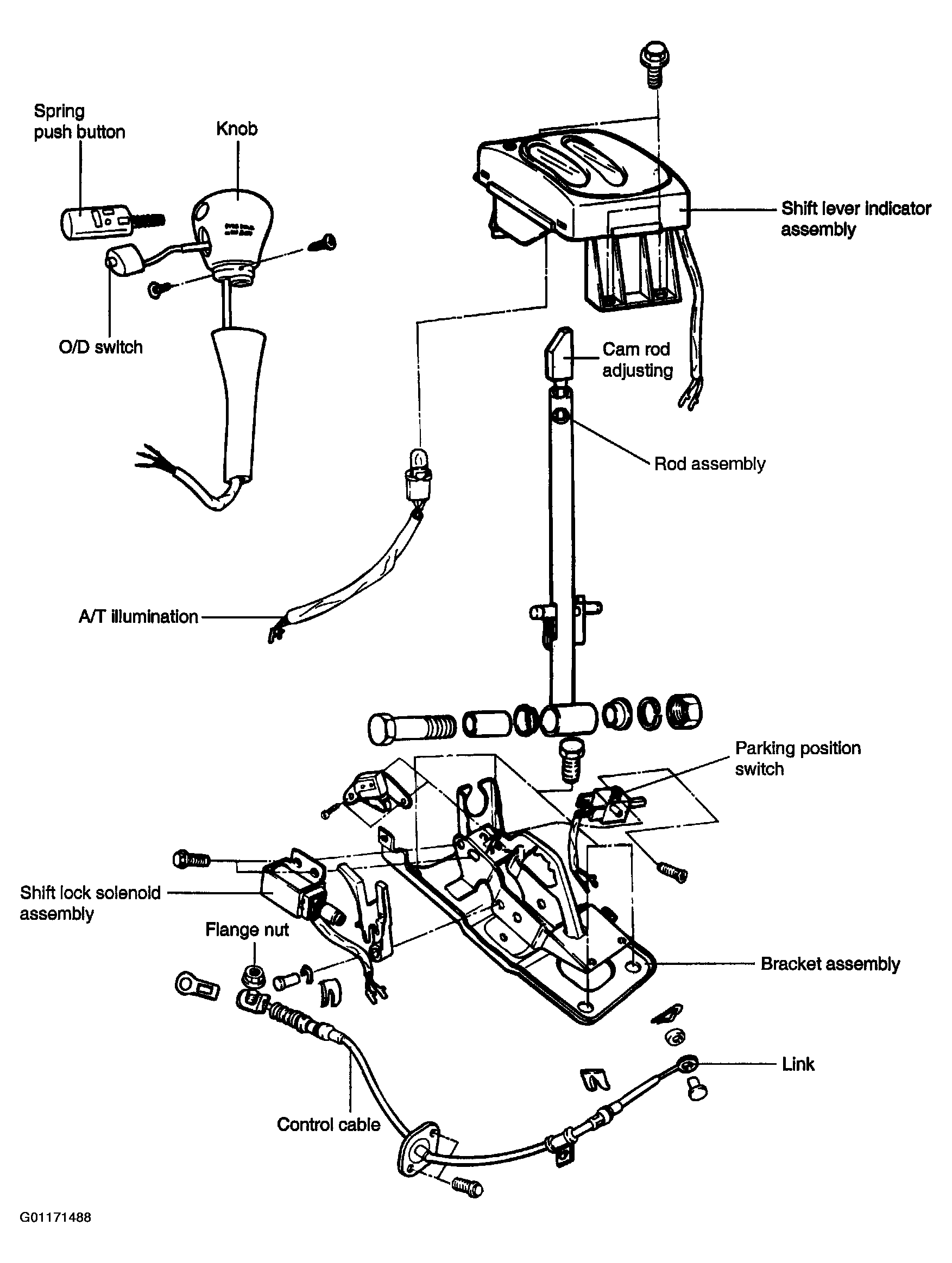

Fig 1: Automatic Transaxle Shift Control Components

G01171488

Courtesy of HYUNDAI MOTOR CO.
