Home >> Hyundai >> 2002 >> Accent GL, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Automatic Transaxle System >> Element In Use At Each Position Of Selector Lever

Element In Use At Each Position Of Selector Lever

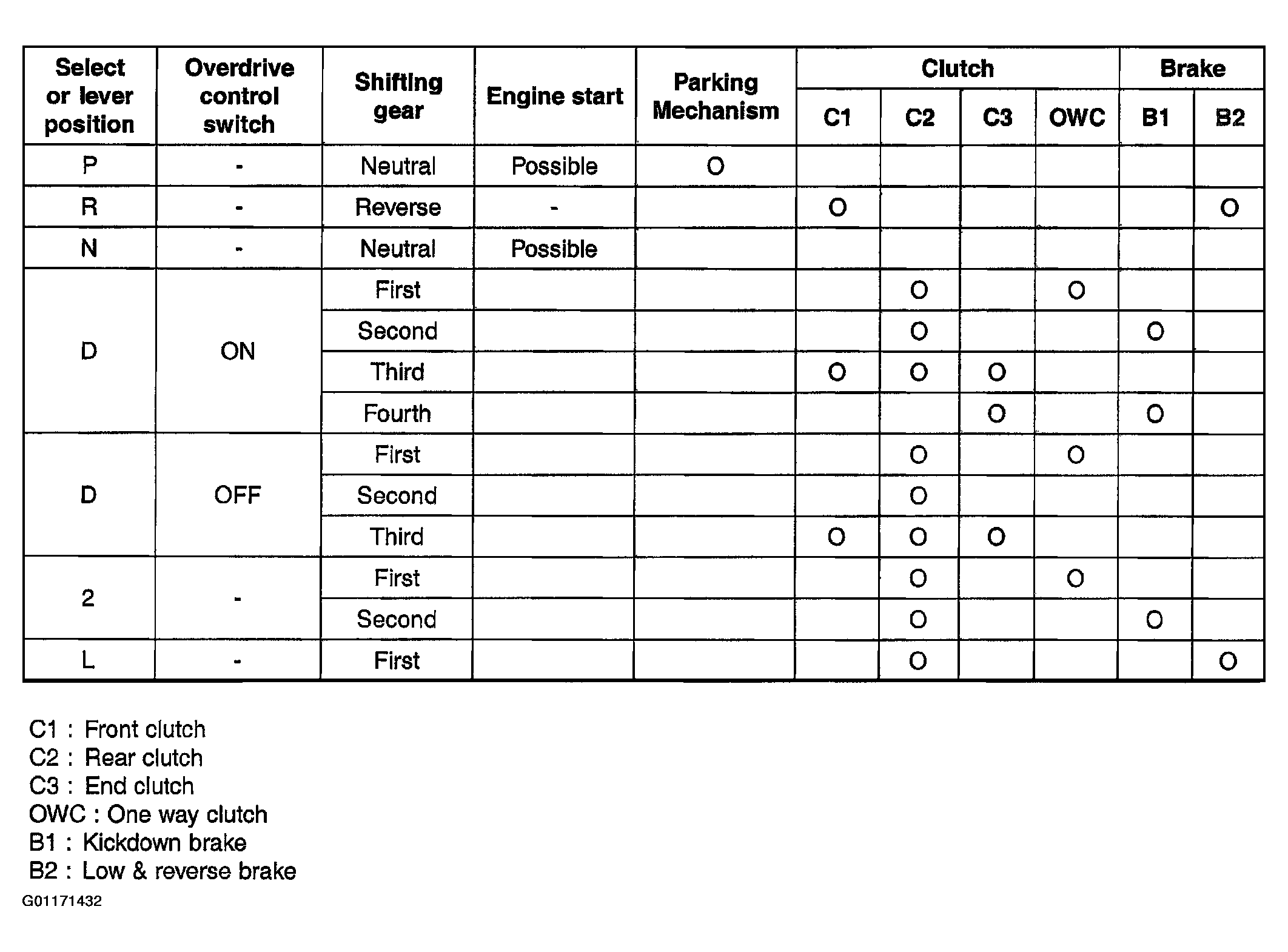

Fig 1: Element In Use At Each Position Of Selector Lever

G01171432

Courtesy of HYUNDAI MOTOR CO.
