Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine Compartment (1.5L)
G00027498Courtesy of HYUNDAI MOTOR CO.
Fig 2: Engine Compartment (1.6L)
G00027499Courtesy of HYUNDAI MOTOR CO.
Fig 3: Dash
G00027500Courtesy of HYUNDAI MOTOR CO.

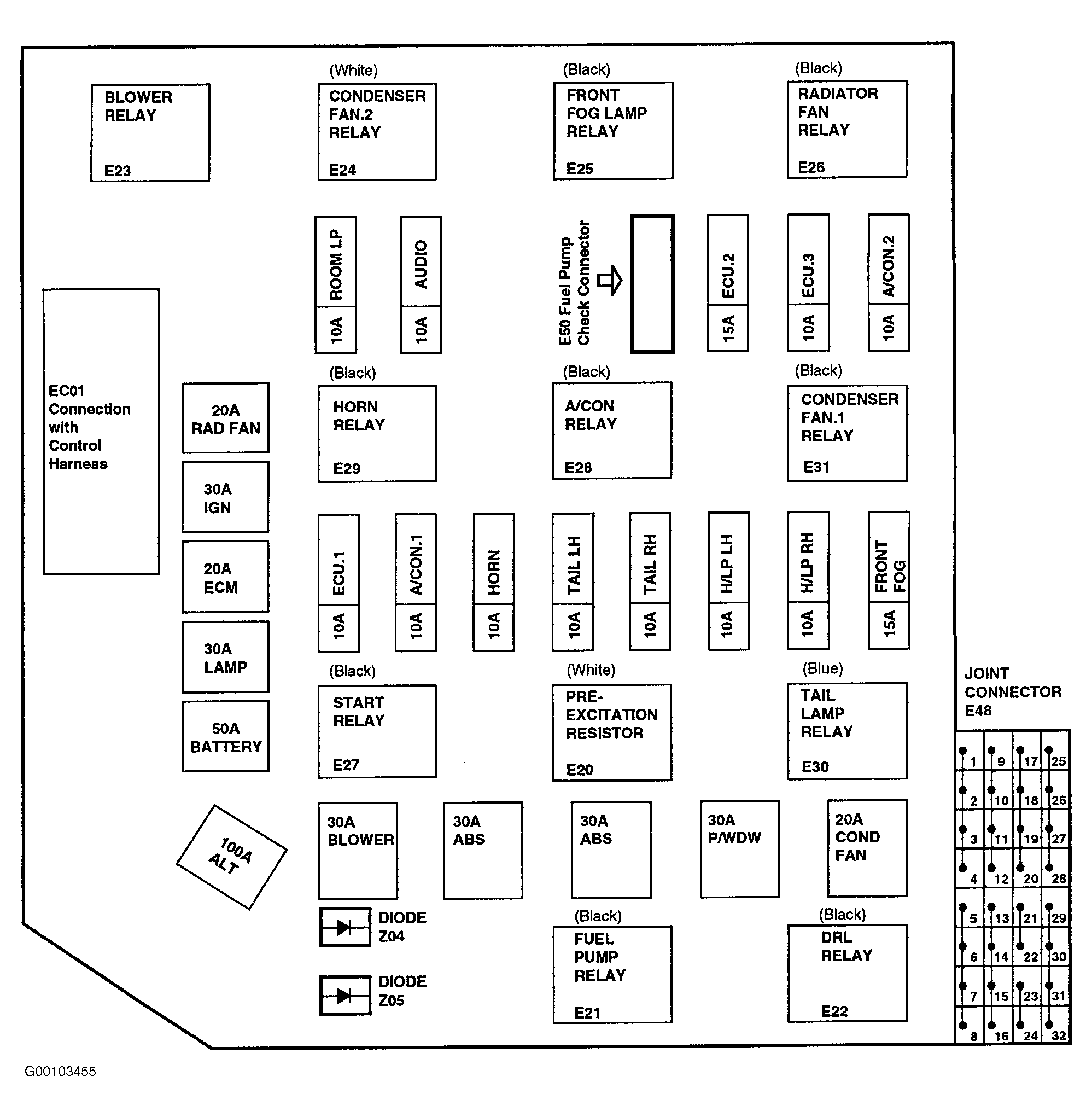

Fig 4: Engine Compartment Relay And Fuse Box
G00103455Courtesy of HYUNDAI MOTOR CO.

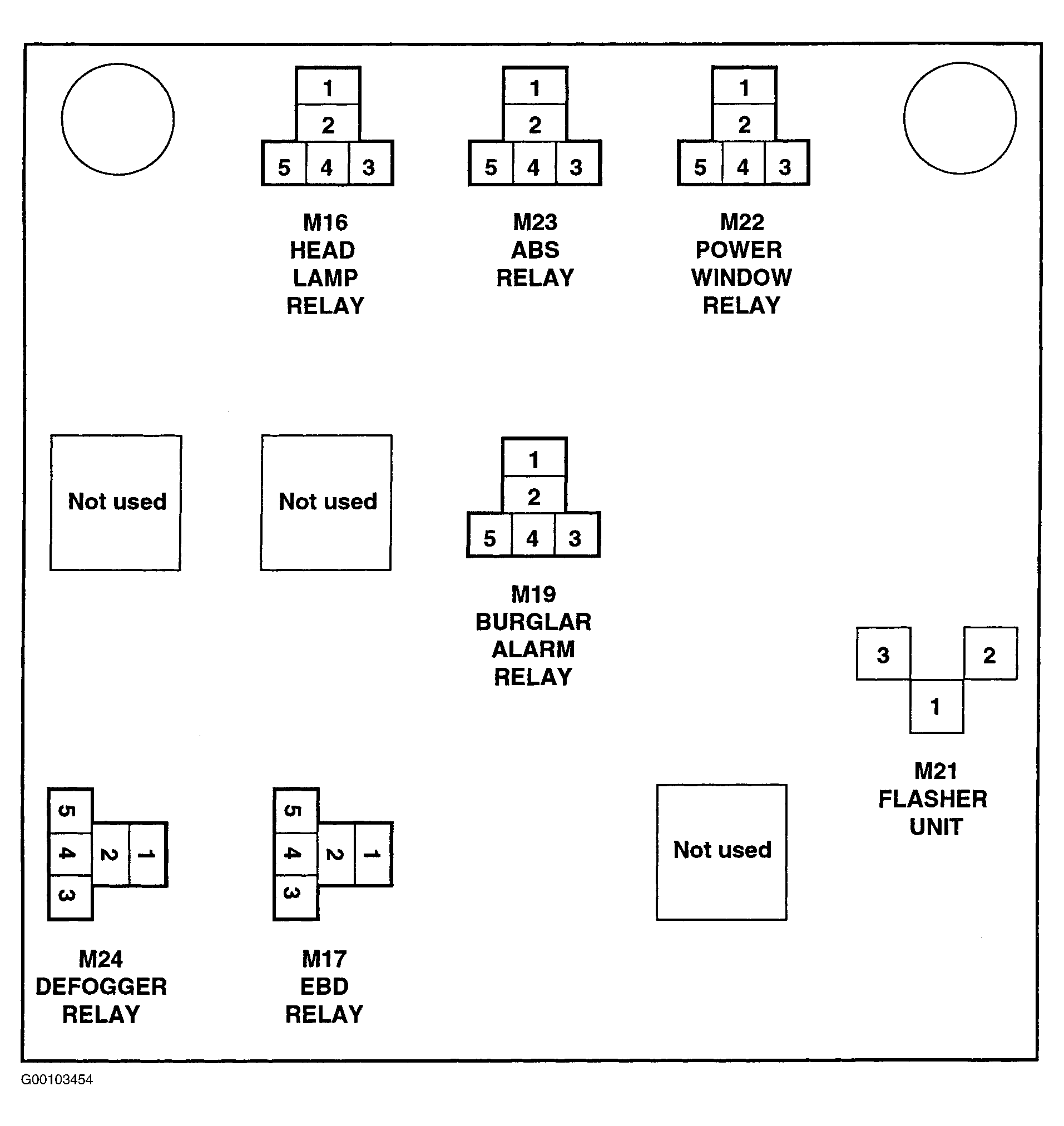

Fig 5: Passenger Compartment Relay Box
G00103454Courtesy of HYUNDAI MOTOR CO.
