Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module | At left rear corner of engine compartment, below master cylinder. |
| A/T Shift & Key Lock Control Module | Behind right kick panel. |
| Diagnosis Module For Tank Leakage | Forward left side of rear bumper. |
| Door Lock Control Module | Behind center of dash. |
| DRL Control Module | At left front corner of engine compartment. |
| Electronic Time & Alarm Control Module (ETACM) | Behind dash, left of steering column. |

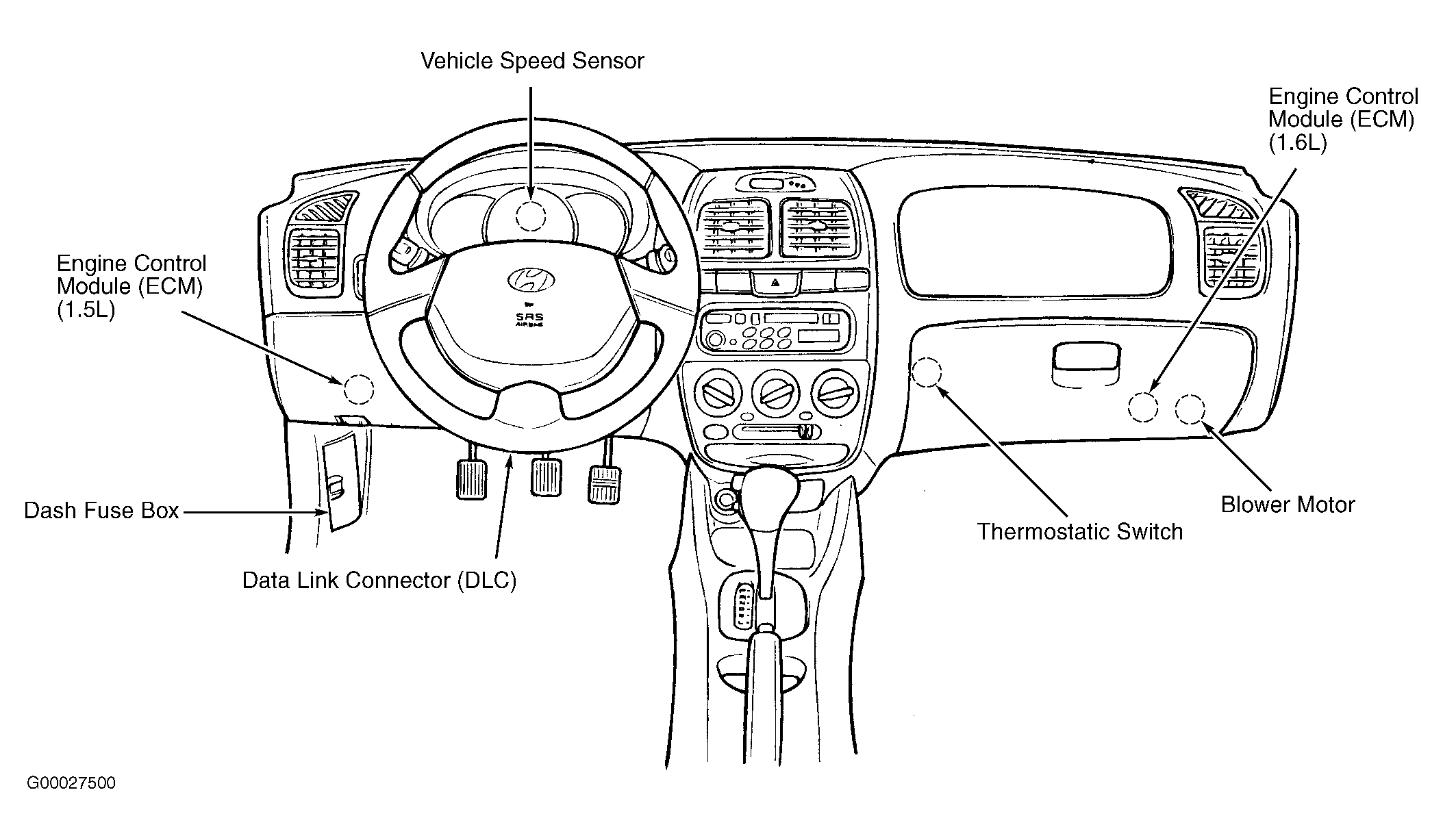

| Engine Control Module (ECM) (1.5L) | Behind left side of dash. See Figure. |
| Engine Control Module (ECM) (1.6L) | Behind right side of dash. See Figure. |
| SRS Control Module | Below center of dash, in front of console. |
| Transaxle Control Module (TCM) | Behind left side of dash. |
