Field Coil Test

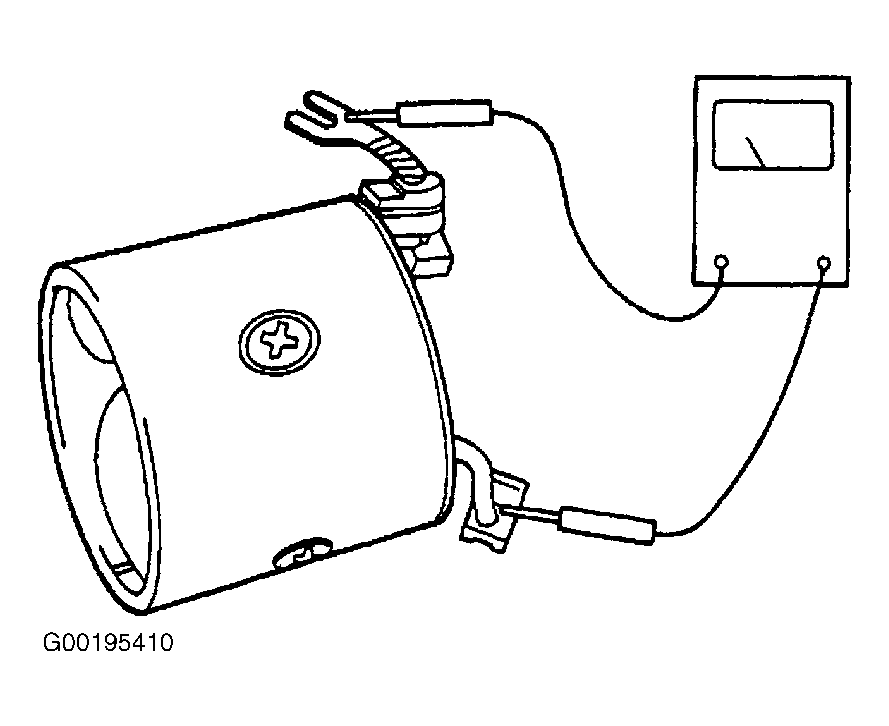

- Check field coil continuity by connecting ohmmeter probes to field coil positive terminal and brush holder. See Fig 1 Replace field coil if continuity does not exist (open circuit).

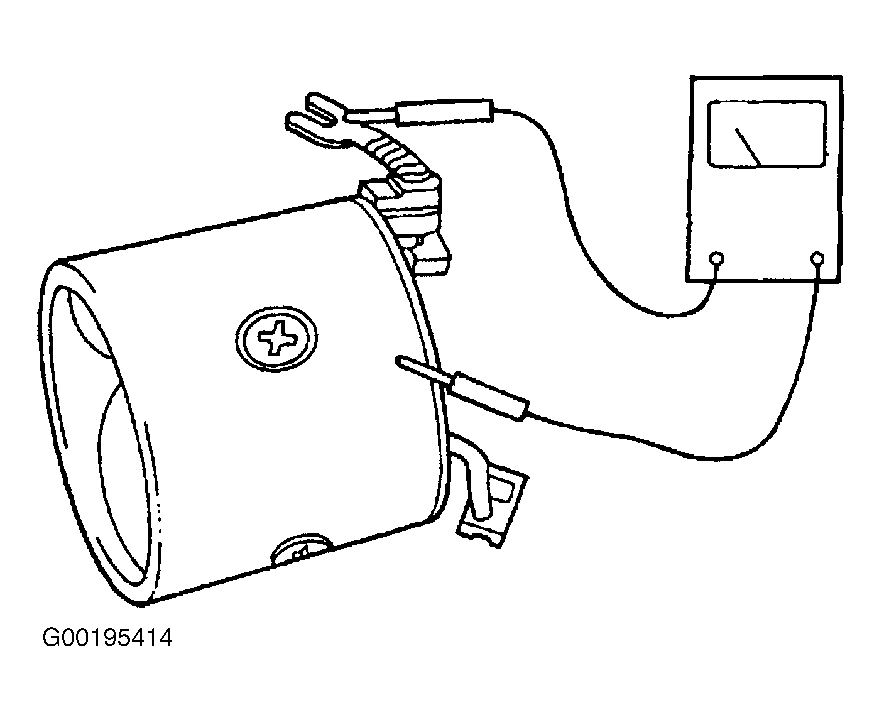

- Check for grounded field coil by placing one ohmmeter probe on starter housing and other probe on field coil positive terminal. See Fig 2 If continuity is present, field coil is grounded and must be replaced.
