Starter Relay Test

  1. Check continuity between relay terminals No. 1 and 3, and between terminals No. 2 and 4. See Fig 1 . Continuity should exist between terminals No. 1 and 3. Continuity should not exist between terminals No. 2 and 4. If continuity is as specified, go to next step. If continuity is not as specified, replace starter relay.
  2. Apply battery voltage and ground between terminals No. 1 and 3. Continuity should now exist between terminals No. 2 and 4. If continuity is not as specified, replace starter relay. If continuity is as specified, starter relay is okay at this time.

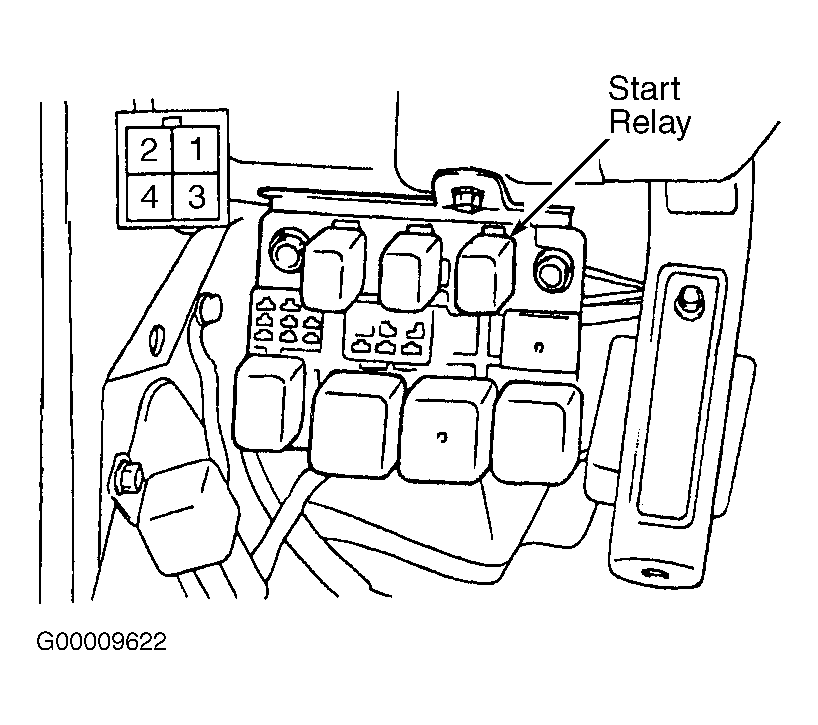

Fig 1: Identifying Starter Relay & Terminals
G00009622Courtesy of HYUNDAI MOTOR CO.
