Fail-Safe Mode: Notes

In the event of an ABS or TCS failure, ABS will enter fail-safe mode. In fail-safe mode HECU disables certain ABS functions while continuing to allow EBD function. See Fig 1 .

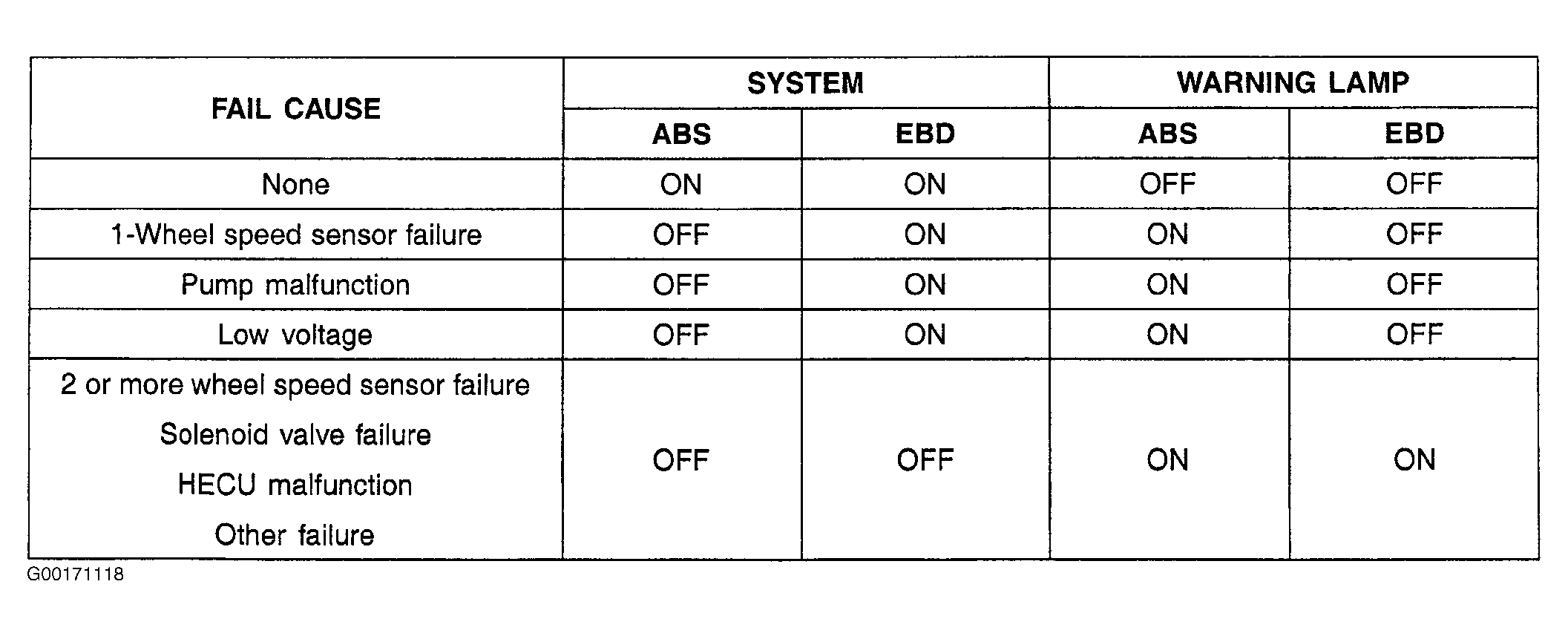

Fig 1: Anti-Lock Brake System Fail-Safe Mode Chart

Courtesy of HYUNDAI MOTOR CO.
