Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

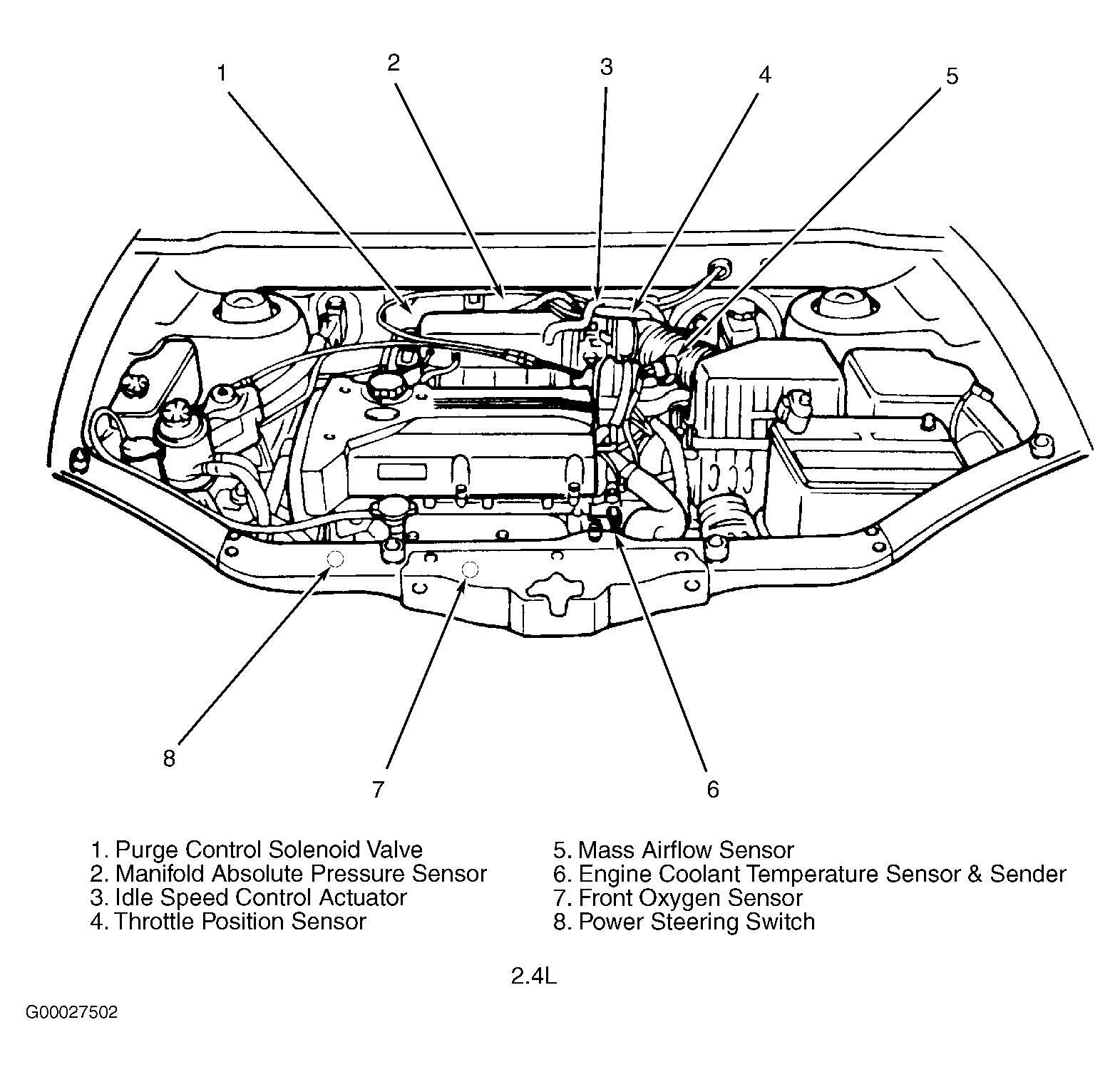

Fig 1: Engine Compartment (2.4L)

Courtesy of HYUNDAI MOTOR CO.

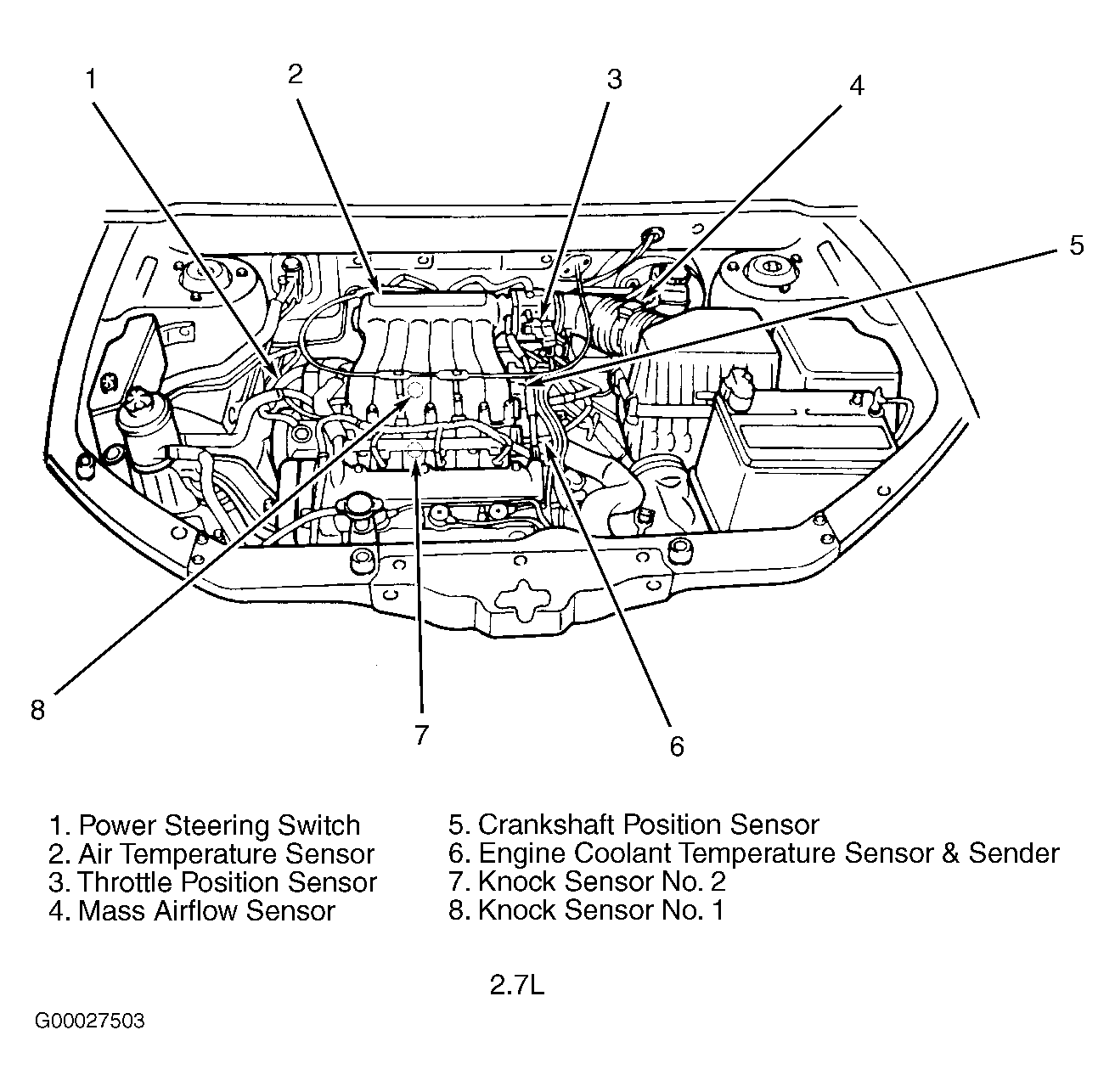

Fig 2: Engine Compartment (2.7L)

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Dash

Courtesy of HYUNDAI MOTOR CO.

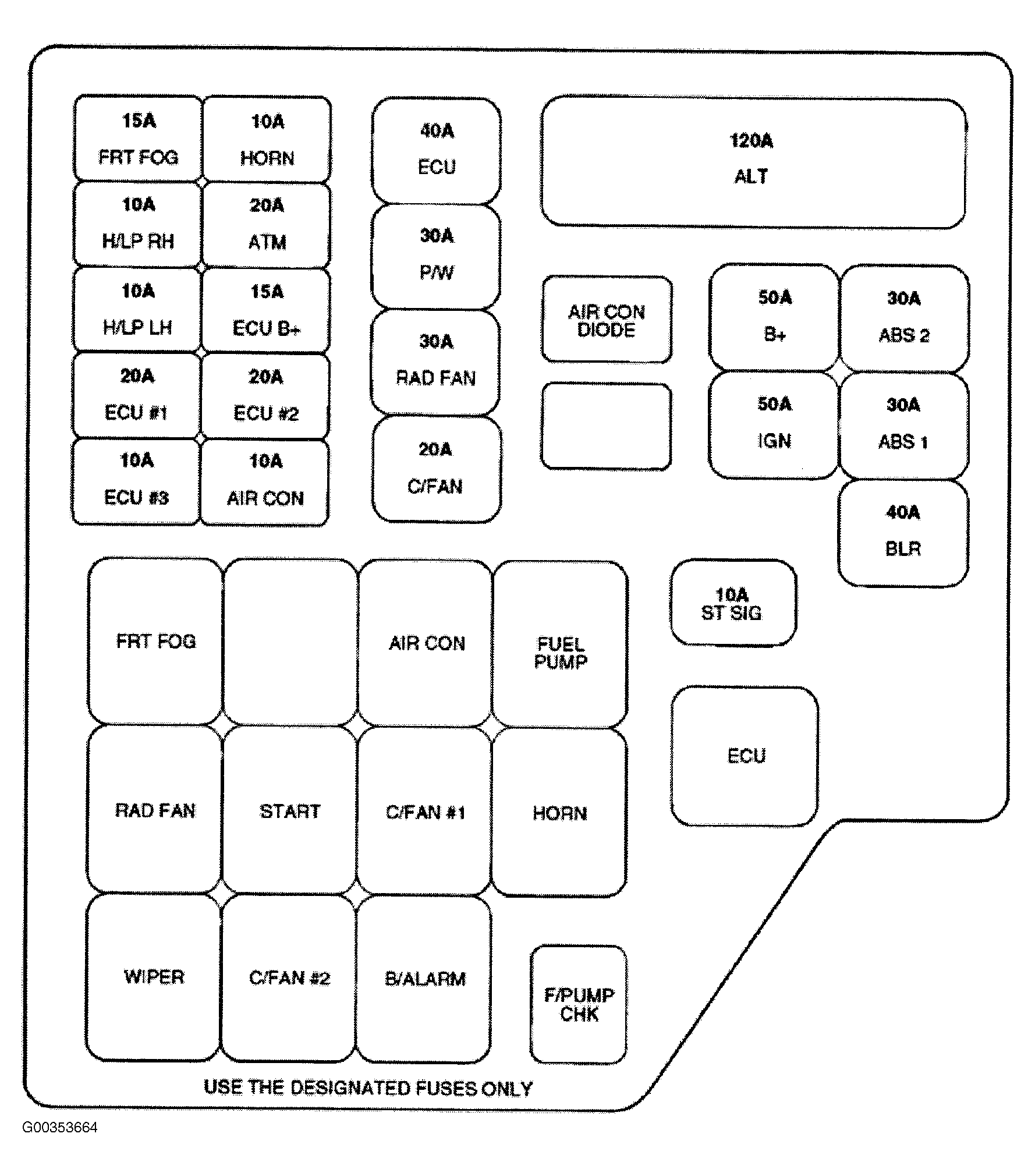

Fig 4: Engine Compartment Junction Box Fuses And Relays

Courtesy of HYUNDAI MOTOR CO.

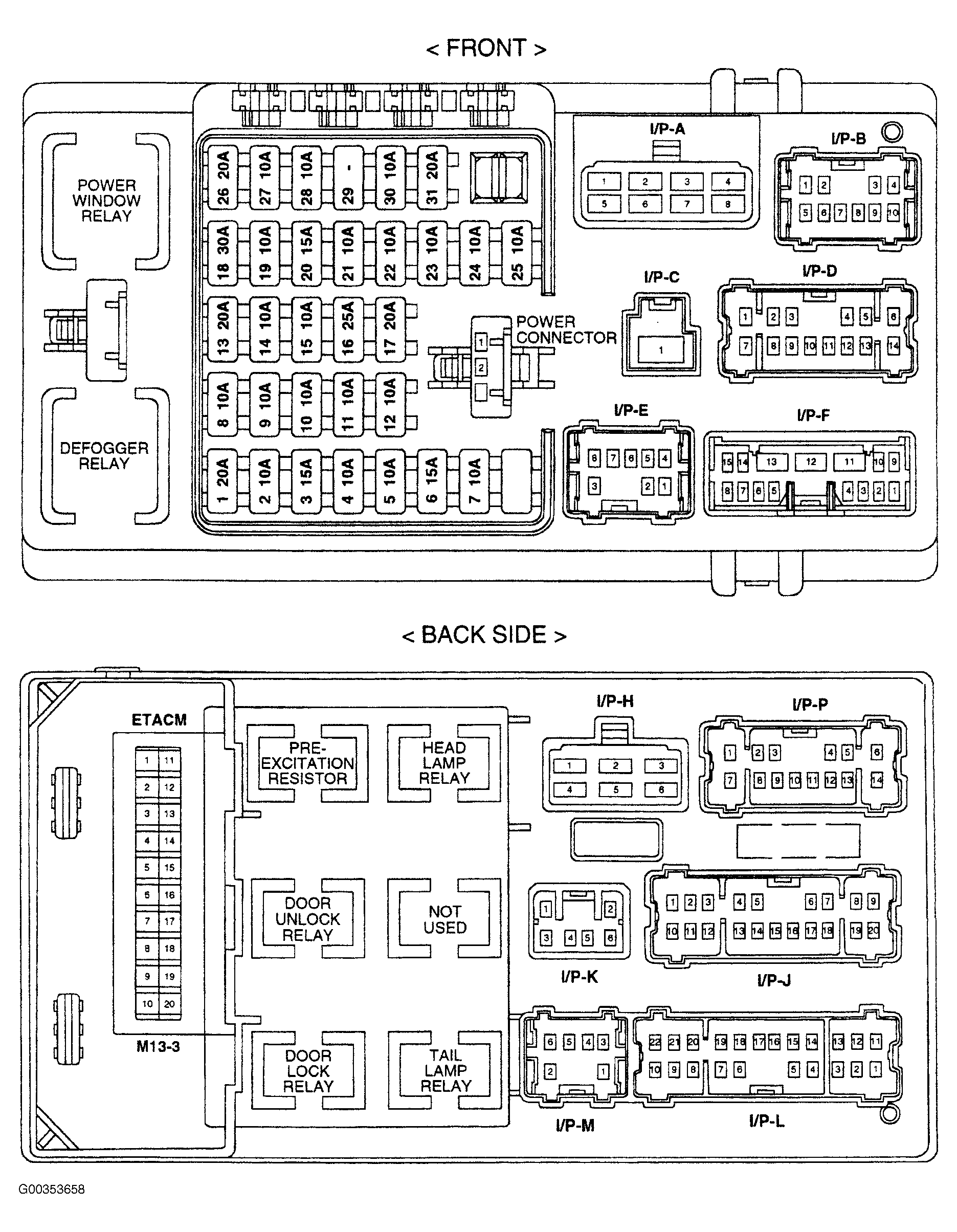

Fig 5: Passenger Compartment Junction Box Relays

Courtesy of HYUNDAI MOTOR CO.
