Bench Testing: Stator

  1. Check continuity between stator coil leads. See Fig 1. If continuity exists, go to next step. If continuity does not exist, replace stator assembly.
  2. Check continuity between each stator coil lead and stator core. See Fig 2. There should be no continuity between any stator coil lead and stator core. If continuity exists, replace stator assembly.

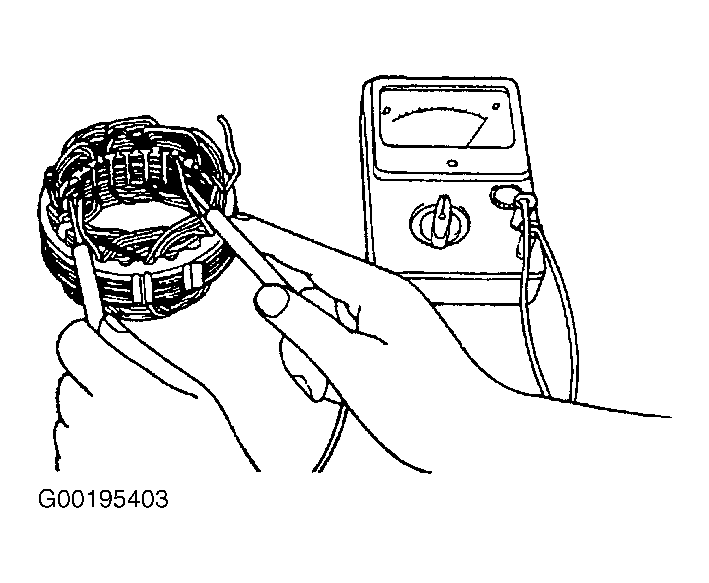

Fig 1: Checking Continuity Between Coil Leads
G00195403Courtesy of HYUNDAI MOTOR CO.

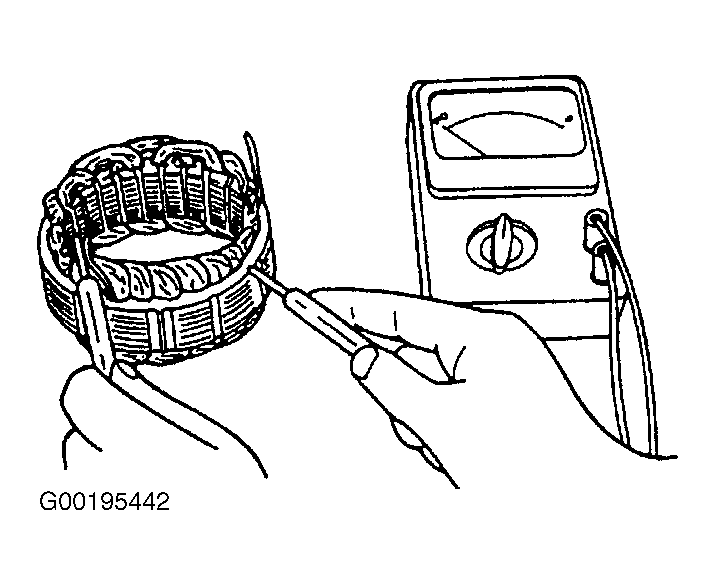

Fig 2: Checking Continuity Between Coil Lead & Core
G00195442Courtesy of HYUNDAI MOTOR CO.
