Central Door Lock Function

T1: 0.2-0.4 sec. See Fig 1 .

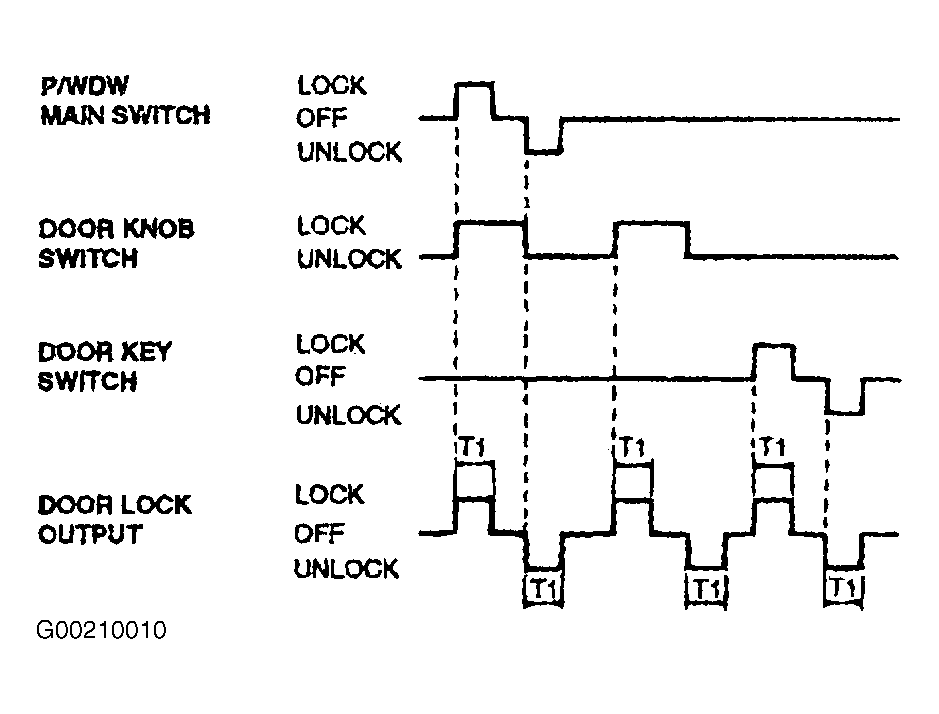

Fig 1: Central Door Lock Function

G00210010

Courtesy of HYUNDAI MOTOR CO.
