Manual Power Window Function

When pressing the window lock switch, all power window switches are disabled except for driver side. See Fig 1 .

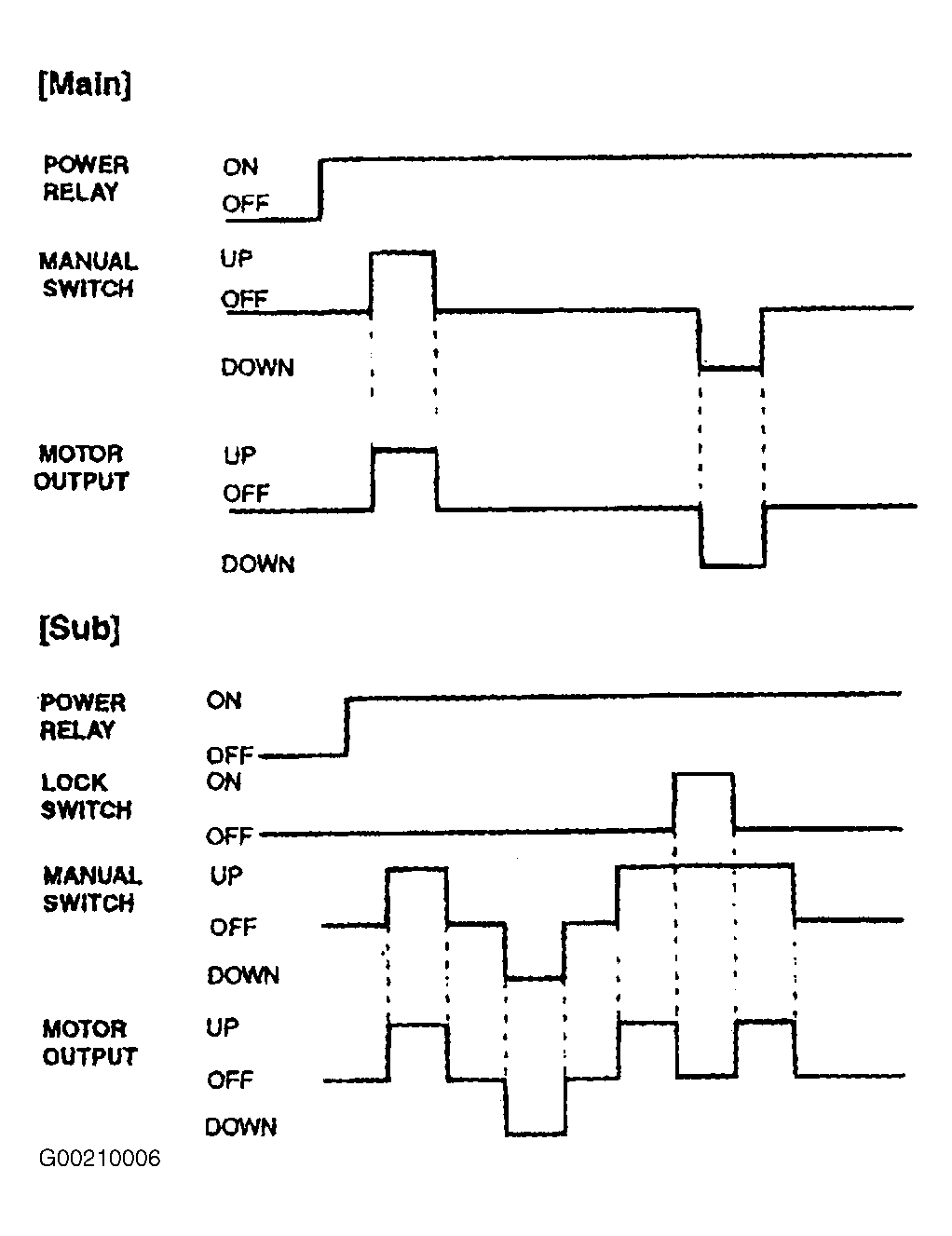

Fig 1: Pressing Window Lock Switches Disabled Except Driver Side
G00210006Courtesy of HYUNDAI MOTOR CO.
