Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module | At lower right rear of engine compartment. |
| A/C Control Module | In center of dash. |

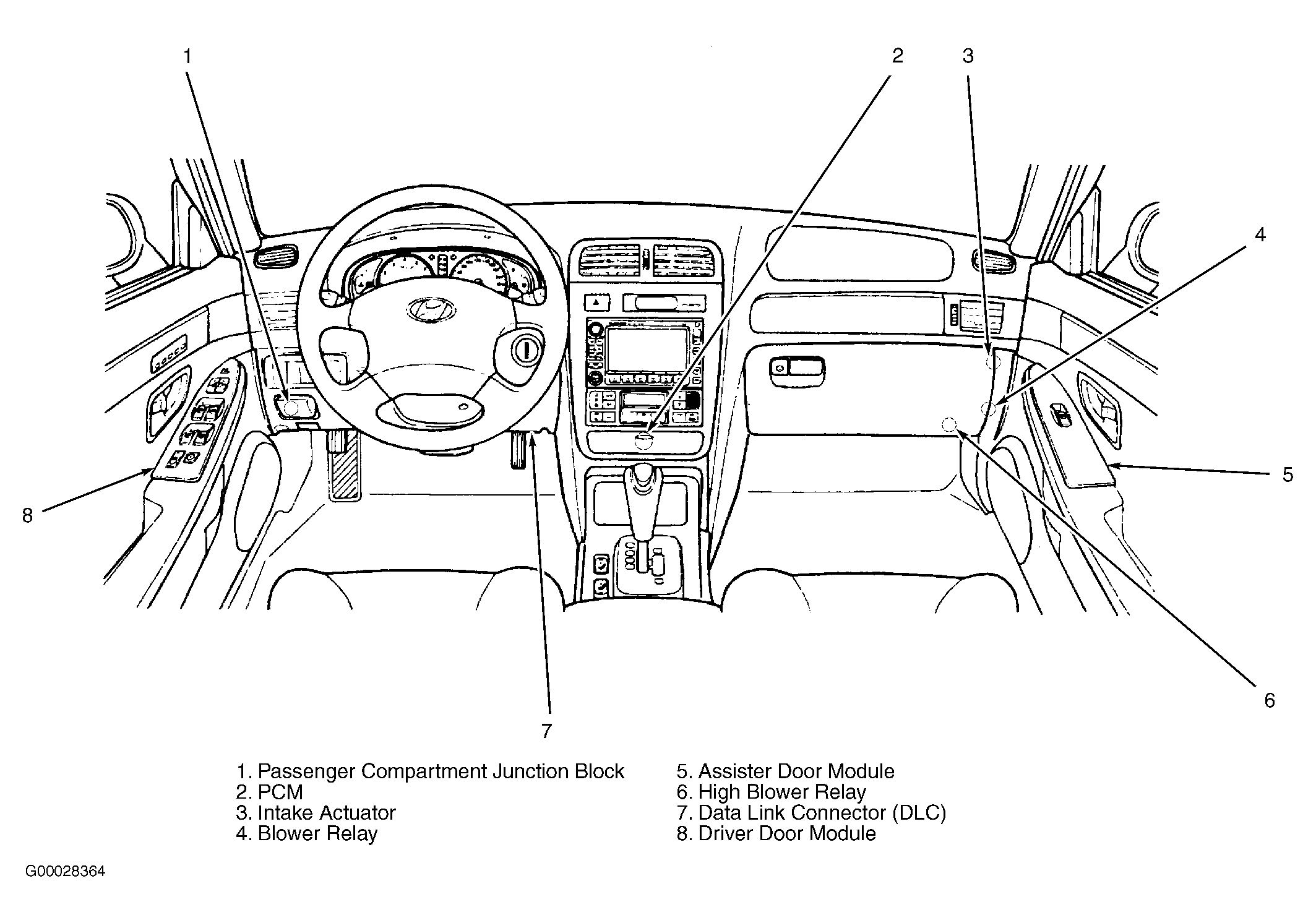

| Assister Door Module | Integral with power window/door switch assembly, on right front door. See Figure. |
| Driver Door Module | Integral with power window/door switch assembly, on left front door. See Figure. |
| DRL Control Module | On right front of engine compartment, near engine mount. |
| Electronic Power Steering Control Module | Behind center of dash, on support bracket. |
| ETACM | On rear of passenger compartment junction block, behind left end of dash. |
| ETS Control Module | Behind center of dash, on support bracket. |
| IMS Control Module | Below driver's seat. |
| PCM | Behind lower center of dash. See Figure. |
| SRS Control Module | Below center console. |
