Vacuum Diagrams: Introduction

This article contains diagrams of vacuum hose routing. Use these vacuum diagrams during the visual inspection in BASIC DIAGNOSTIC PROCEDURES article. This will assist in identifying improperly routed vacuum hoses which cause driveability and/or computer-indicated malfunctions.

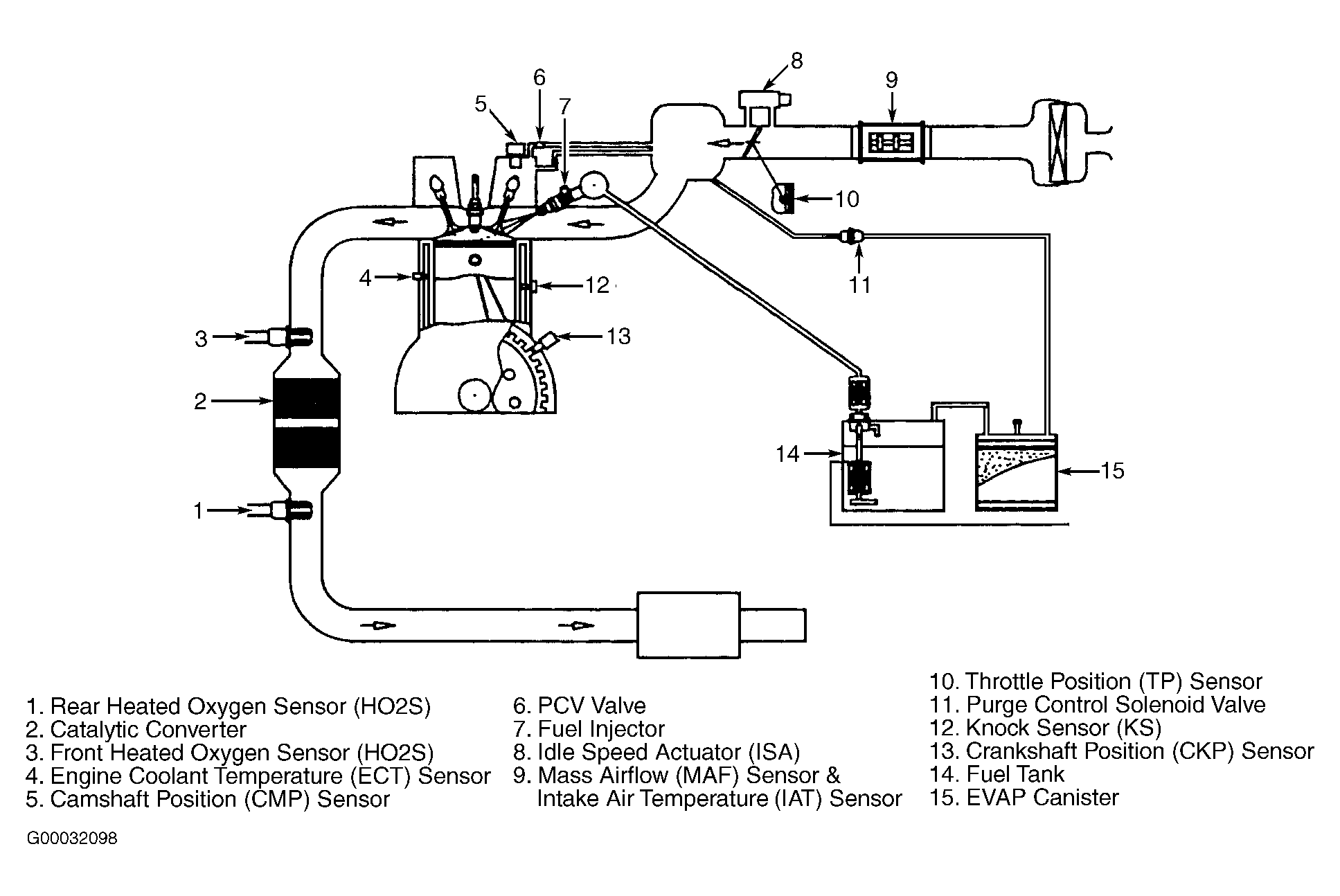

Fig 1: Vacuum Hose Diagram (Accent 1.5L)

G00032098

Courtesy of HYUNDAI MOTOR CO.

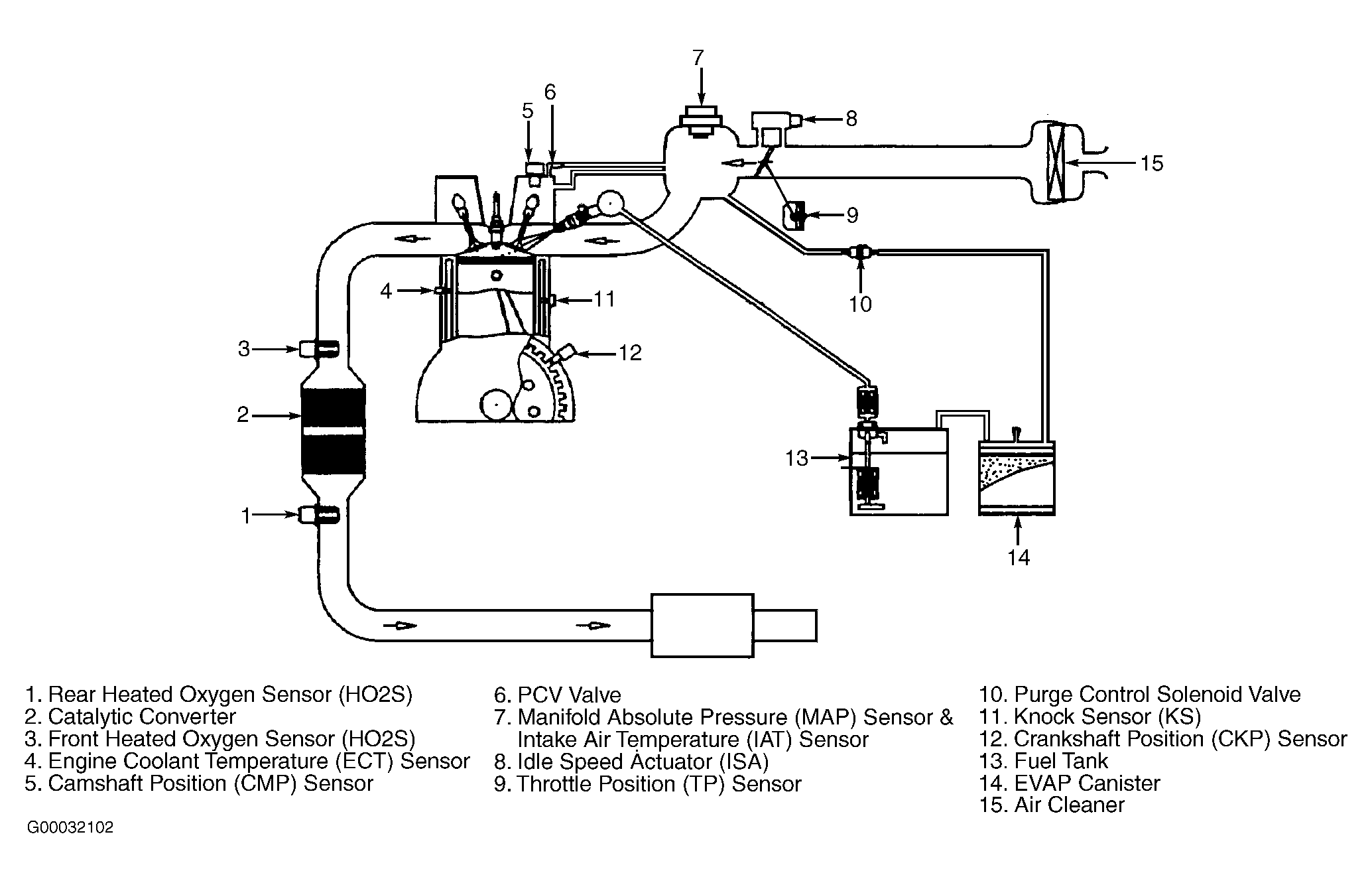

Fig 2: Vacuum Hose Diagram (Accent 1.6L)

G00032102

Courtesy of HYUNDAI MOTOR CO.

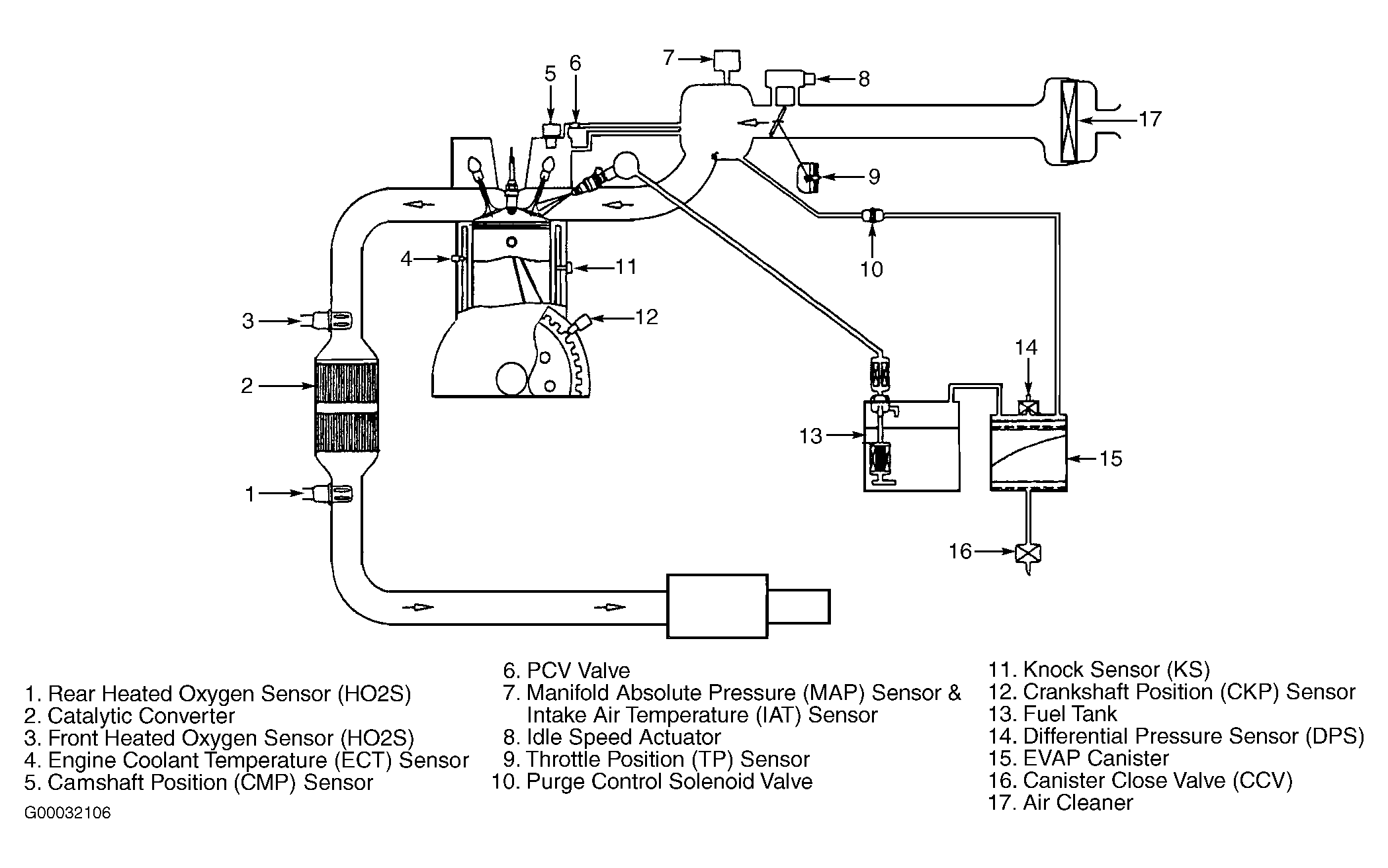

Fig 3: Vacuum Hose Diagram (Elantra)

G00032106

Courtesy of HYUNDAI MOTOR CO.

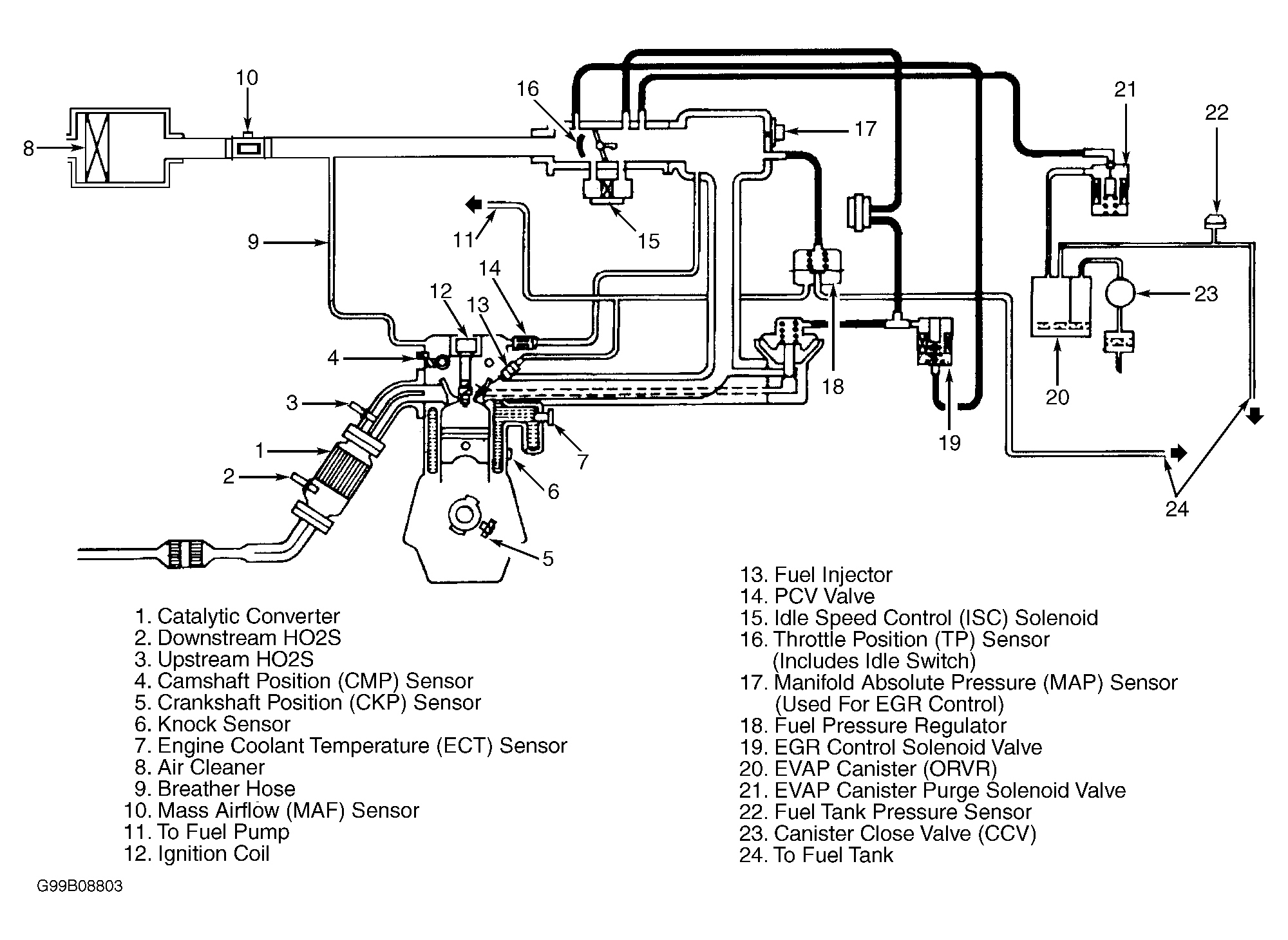

Fig 4: Vacuum Hose Diagram (Santa Fe 2.4L & Sonata 2.4L)

G99B08803

Courtesy of HYUNDAI MOTOR CO.

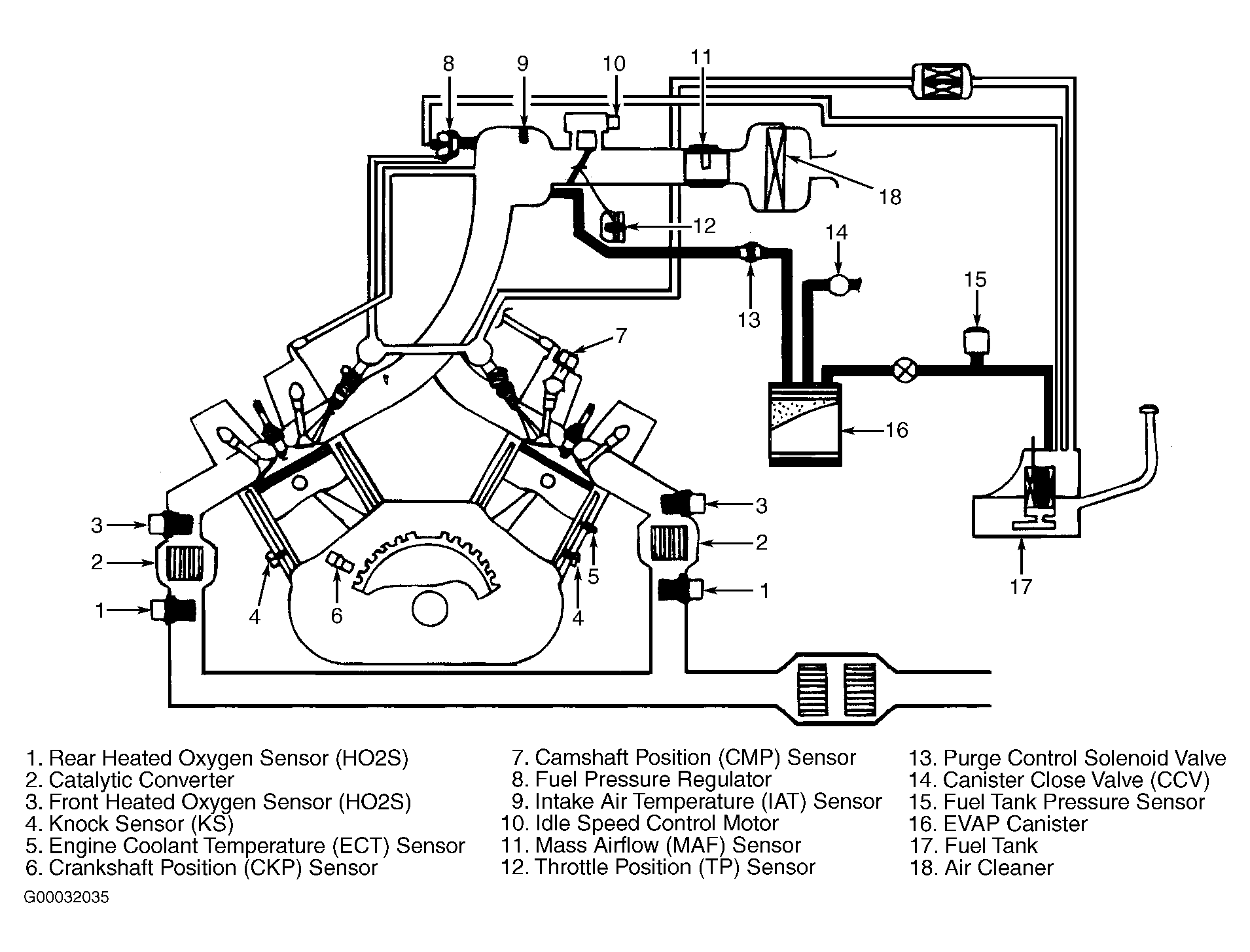

Fig 5: Vacuum Hose Diagram (Santa Fe 2.7L)

G00032035

Courtesy of HYUNDAI MOTOR CO.

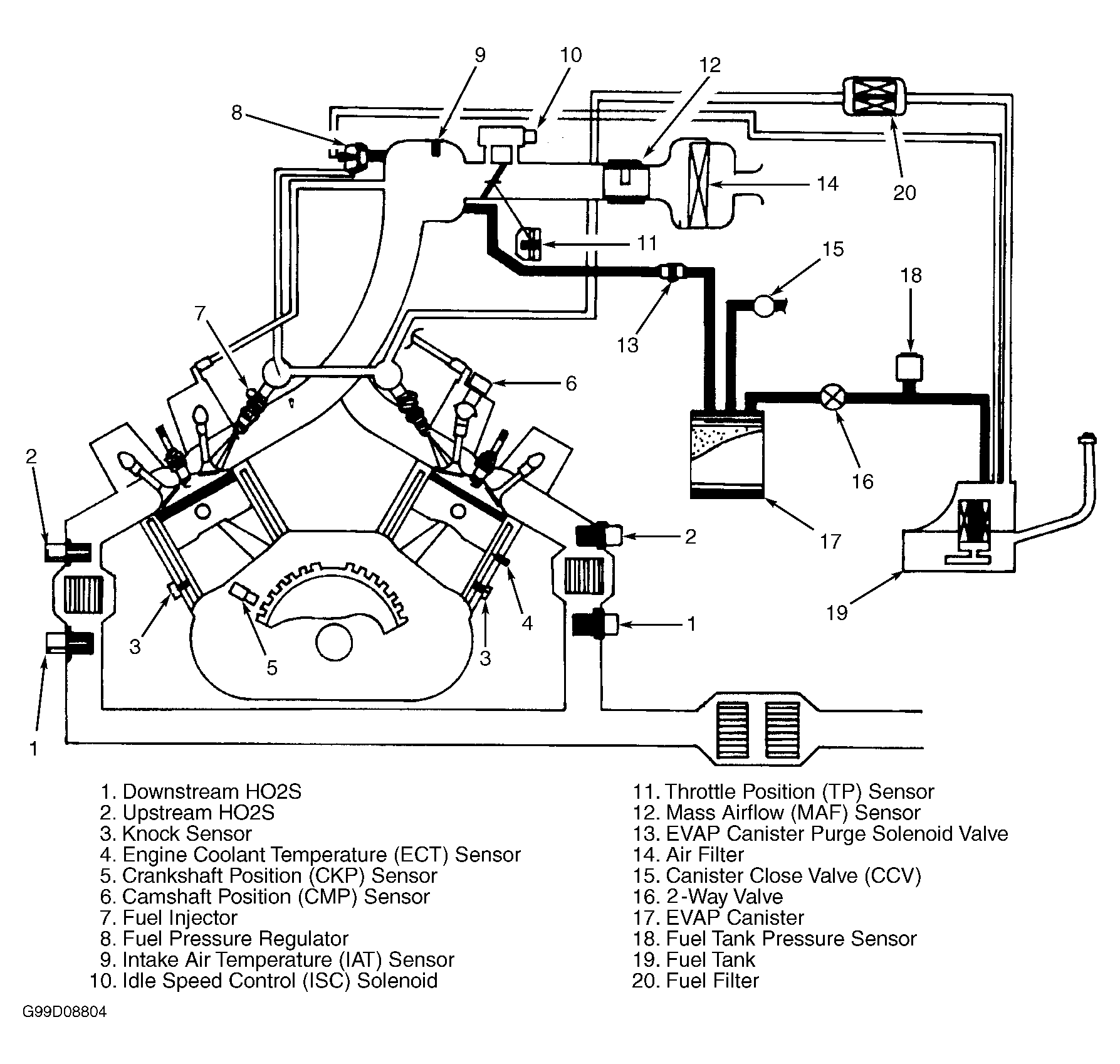

Fig 6: Vacuum Hose Diagram (Sonata 2.7L)

G99D08804

Courtesy of HYUNDAI MOTOR CO.

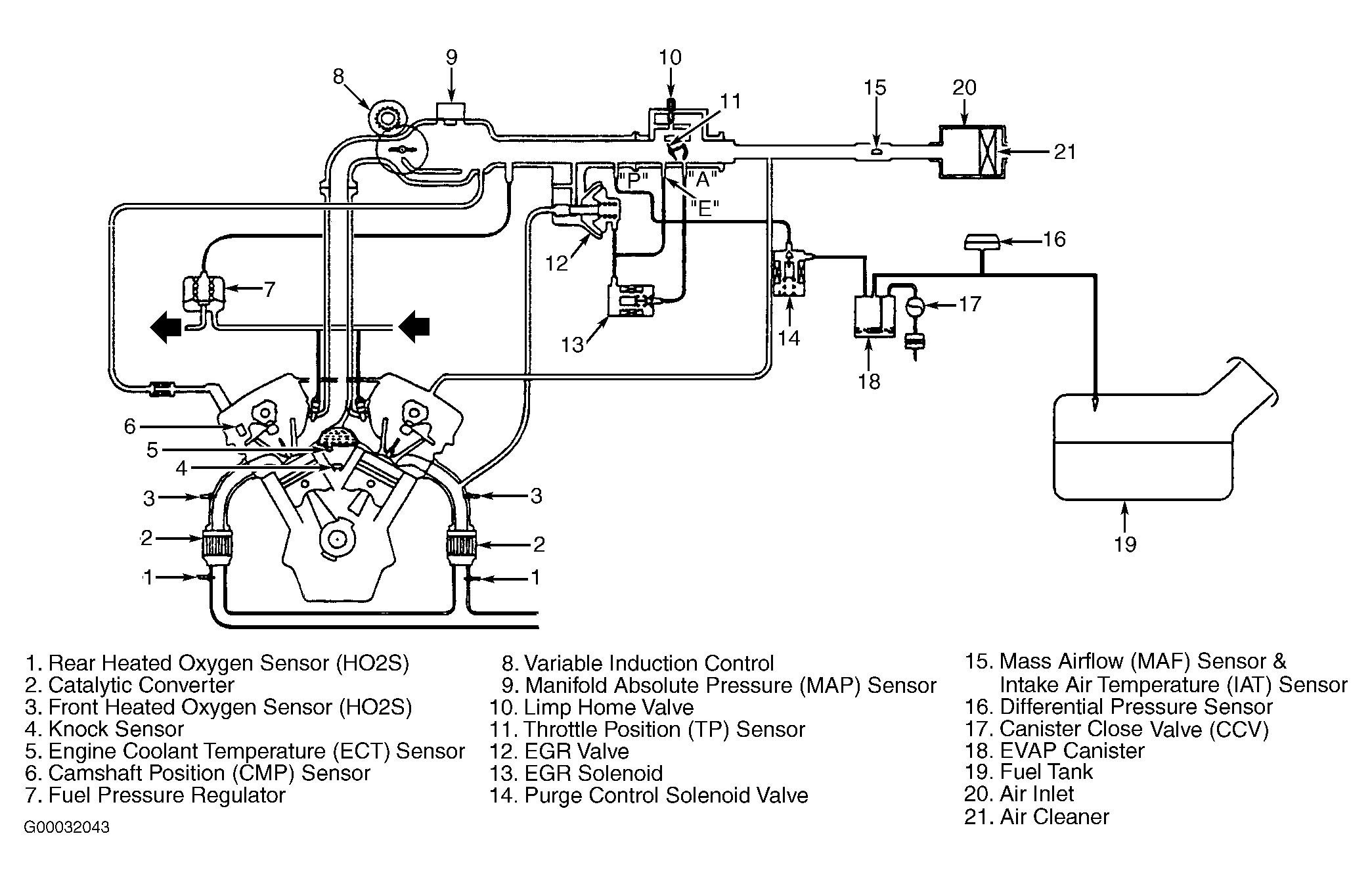

Fig 7: Vacuum Hose Diagram (XG350)

G00032043

Courtesy of HYUNDAI MOTOR CO.

Fig 8: EVAP System Hose Diagram (Accent)

G00009432

Courtesy of HYUNDAI MOTOR CO.

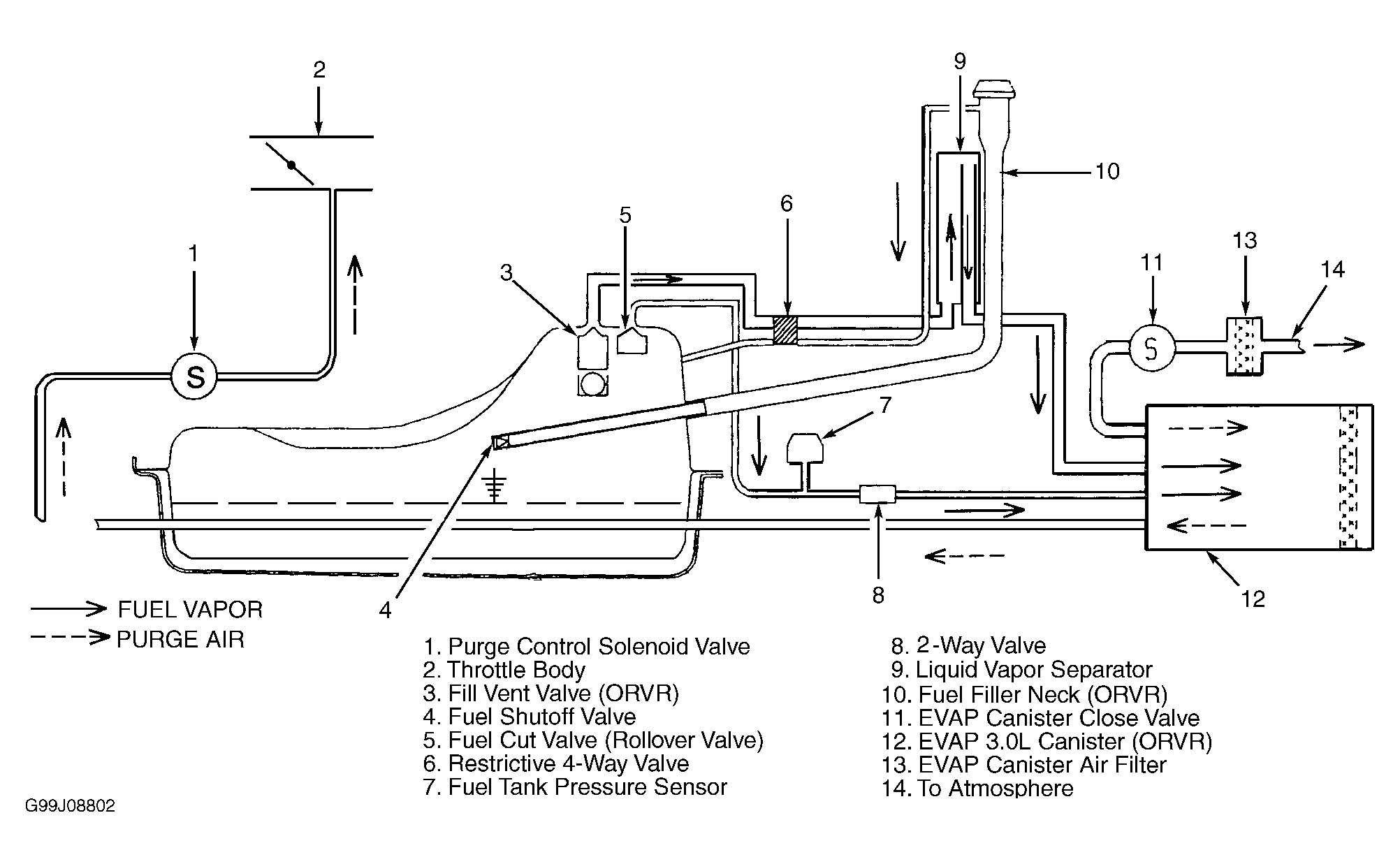

Fig 9: EVAP System Hose Diagram (Elantra, Santa Fe, Sonata & XG350)

G99J08802

Courtesy of HYUNDAI MOTOR CO.

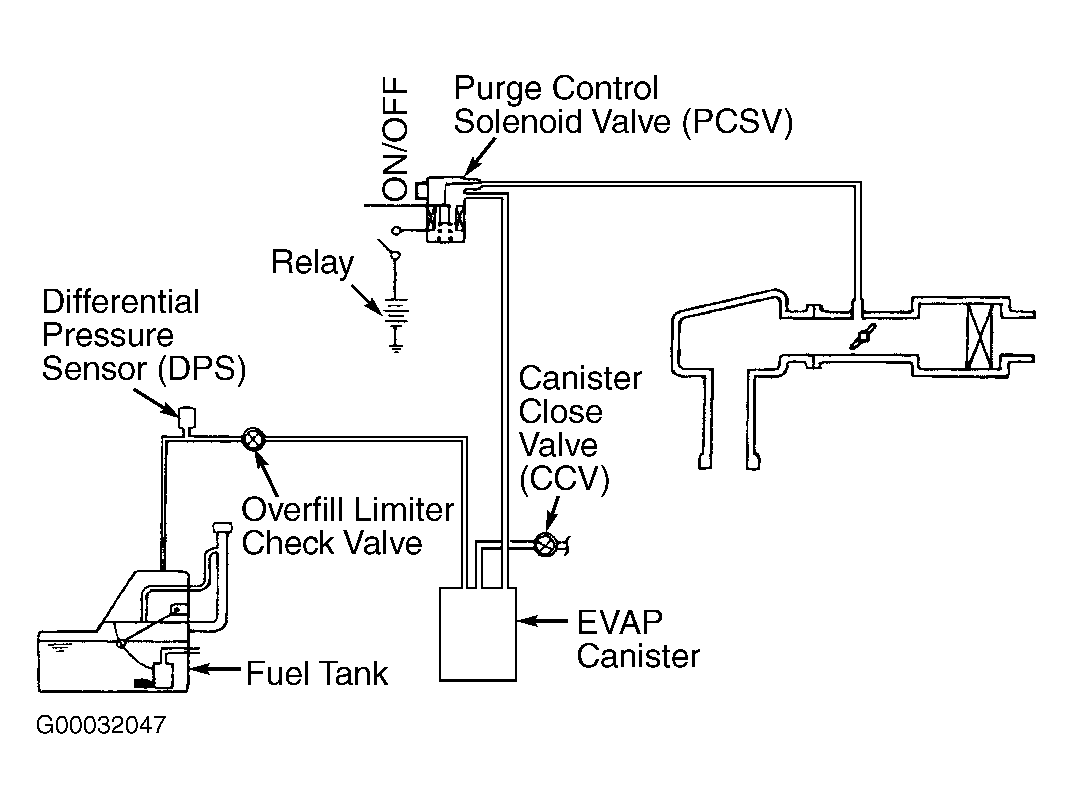

Fig 10: EVAP System Hose Routing (Santa Fe 2.4L)

G00032047

Courtesy of HYUNDAI MOTOR CO.

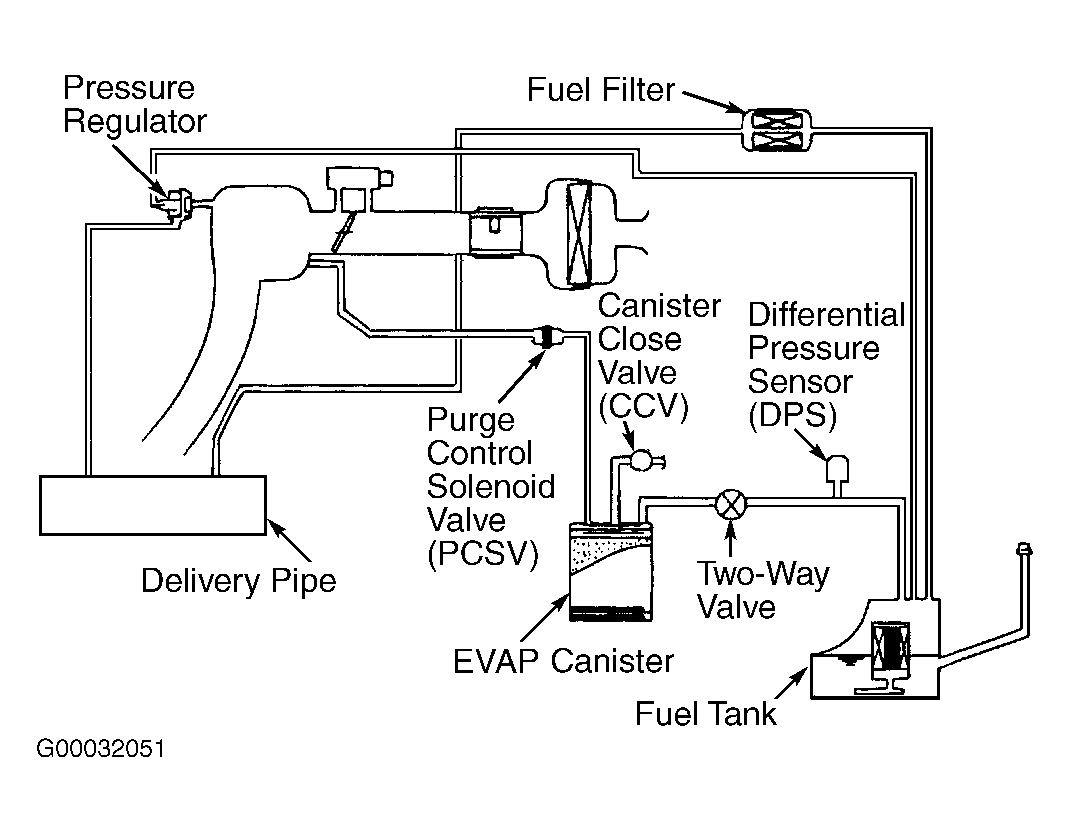

Fig 11: EVAP System Hose Routing (Santa Fe 2.7L)

G00032051

Courtesy of HYUNDAI MOTOR CO.
