Troubleshooting
>>
Chart 1
Chart 1

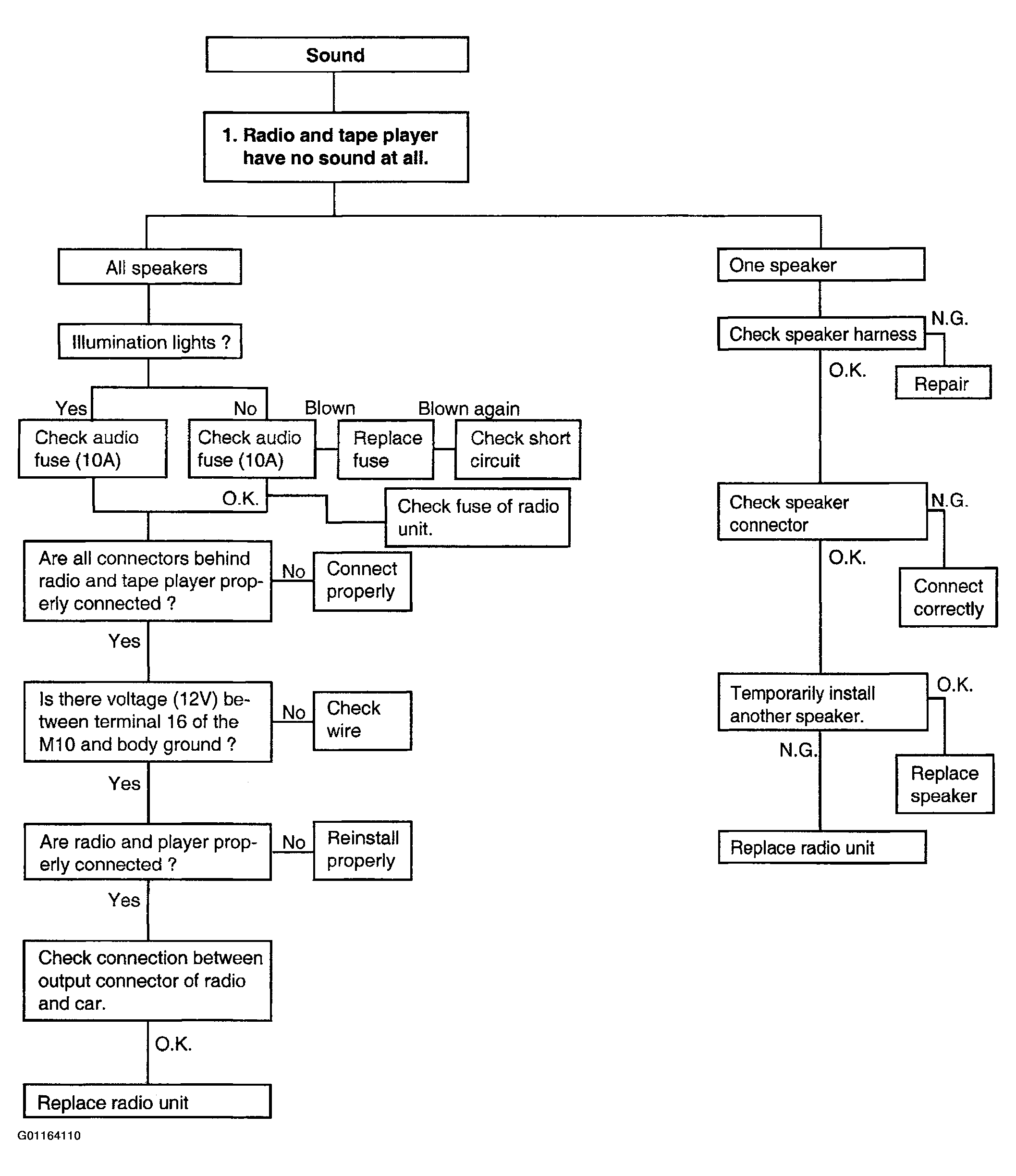

Fig 1: Troubleshooting Flow Chart - Sound
Courtesy of HYUNDAI MOTOR CO.

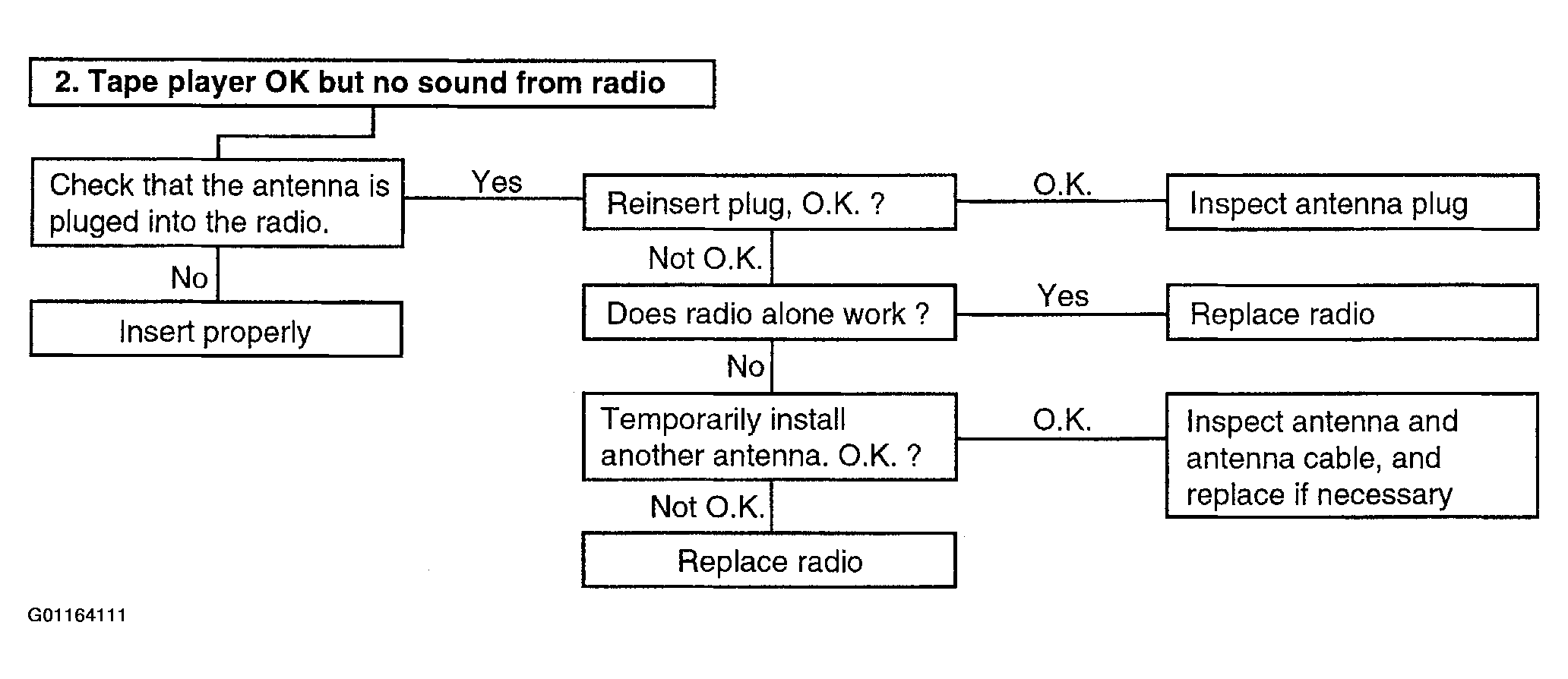

Fig 2: Troubleshooting Flow Chart - Tape Player Ok But No Sound From Radio
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
