ECM Reprogramming For Smoother Feeling Acceleration (02-36-007)

Publication date: 2002-03-01
Reference number: 02-36-007

ECM REPROGRAMMING FOR SMOOTHER FEELING ACCELERATION

ECM REPROGRAMMING FOR SMOOTHER FEELING ACCELERATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): 02-36-007, Date of Issue:  March, 2002
HYUNDAI: 2002 XG350
GROUP: Engine Electrical

DESCRIPTION

2002 XG350 ECM REPROGRAMMING FOR SMOOTHER FEELING ACCELERATION

The acceleration characteristics of some 2002 XG350 vehicles may not feel as smooth as some customers desire. This bulletin describes the procedure for updating the ECM software with new logic to improve the acceleration feel by using the Hi-Scan Pro.

BULLETIN CONTENT

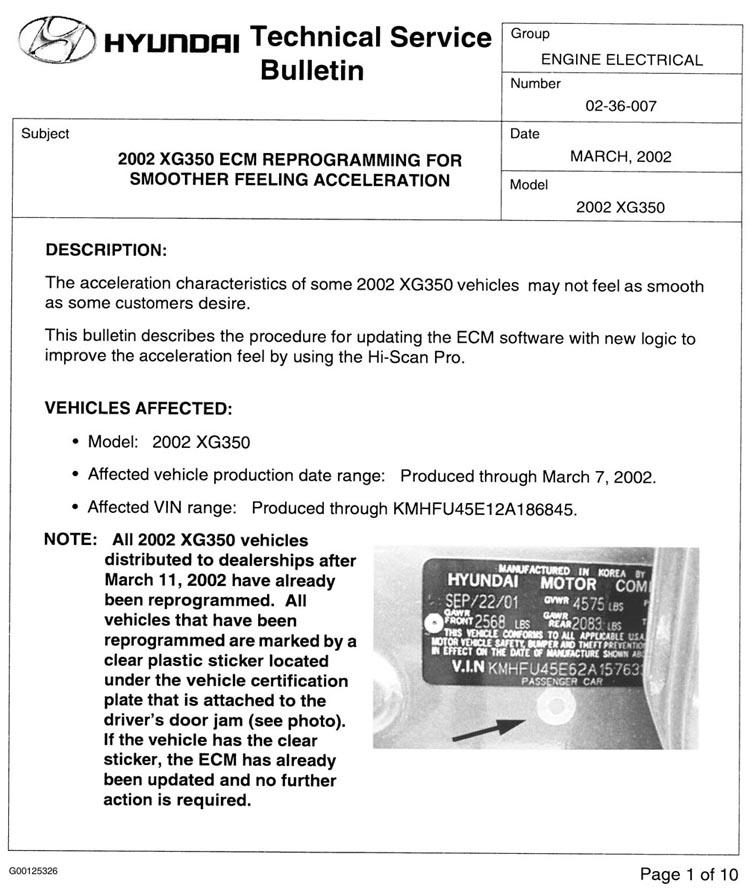

Fig 1: Page 1 of Bulletin
G00125326

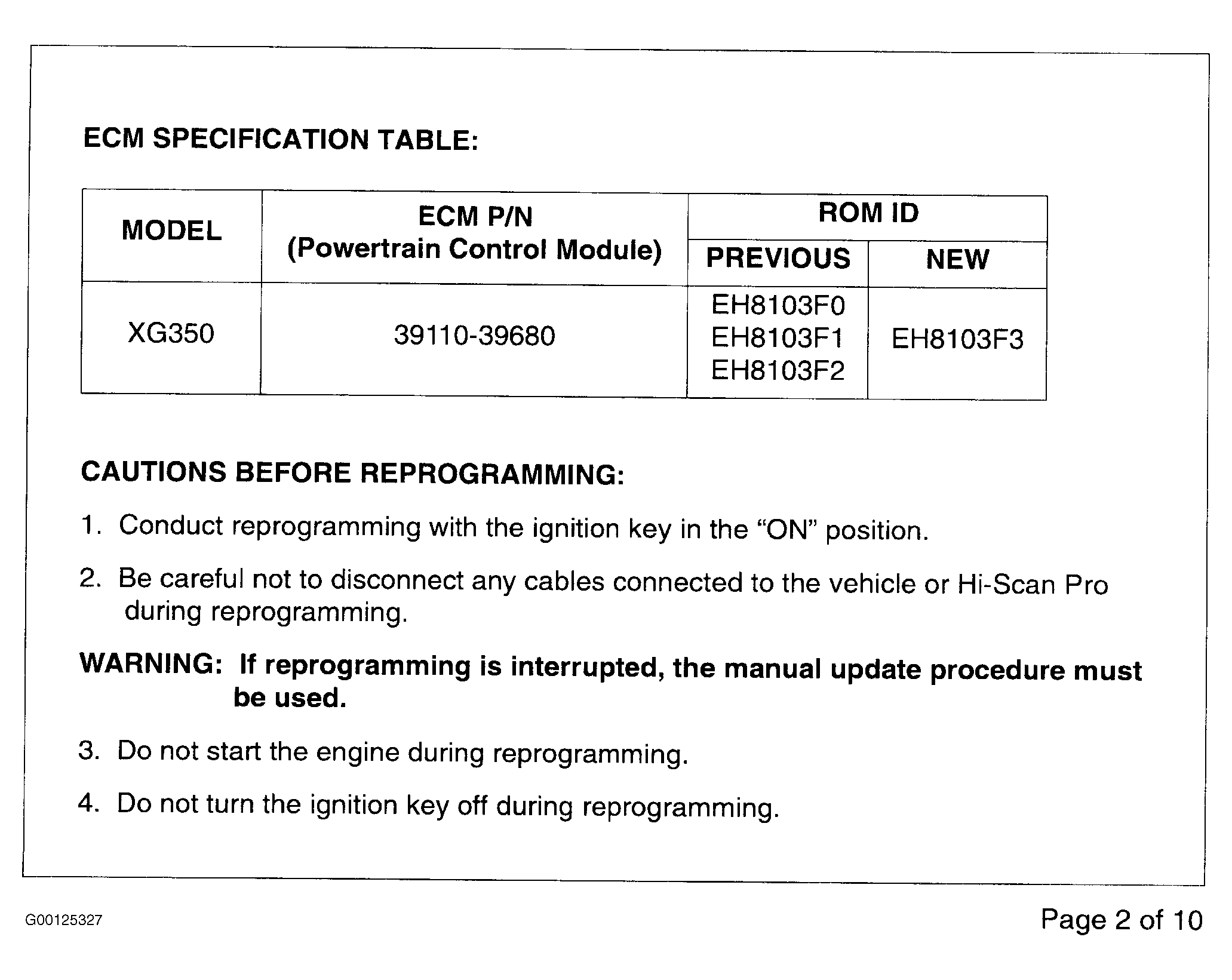

Fig 2: Page 2 of Bulletin
G00125327

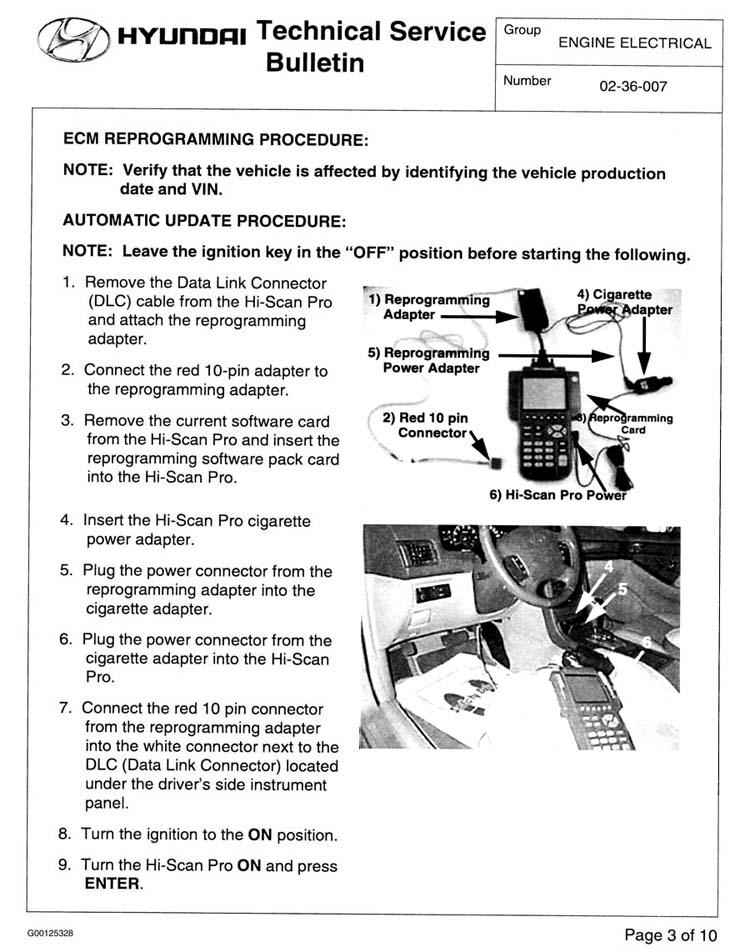

Fig 3: Page 3 of Bulletin
G00125328

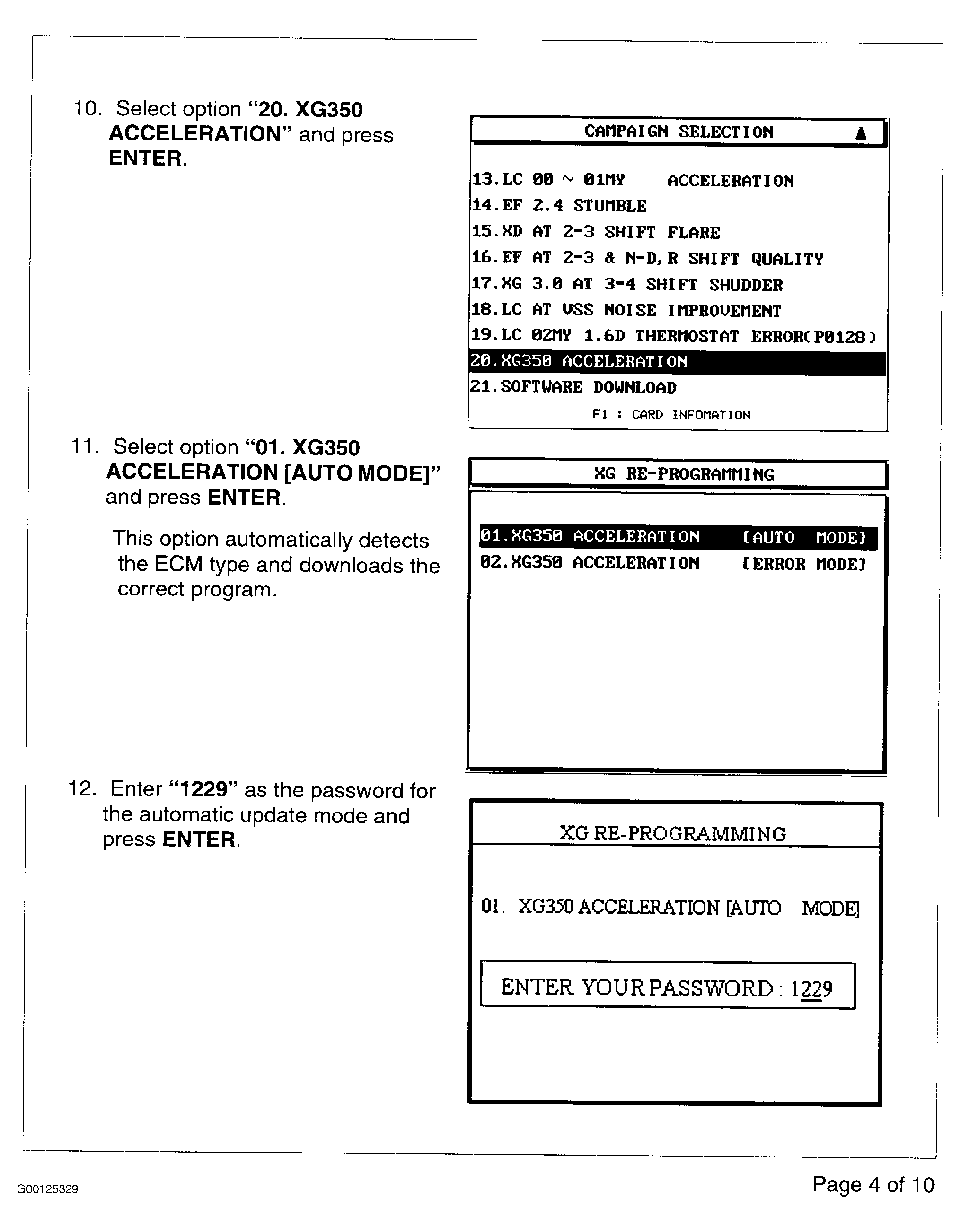

Fig 4: Page 4 of Bulletin
G00125329

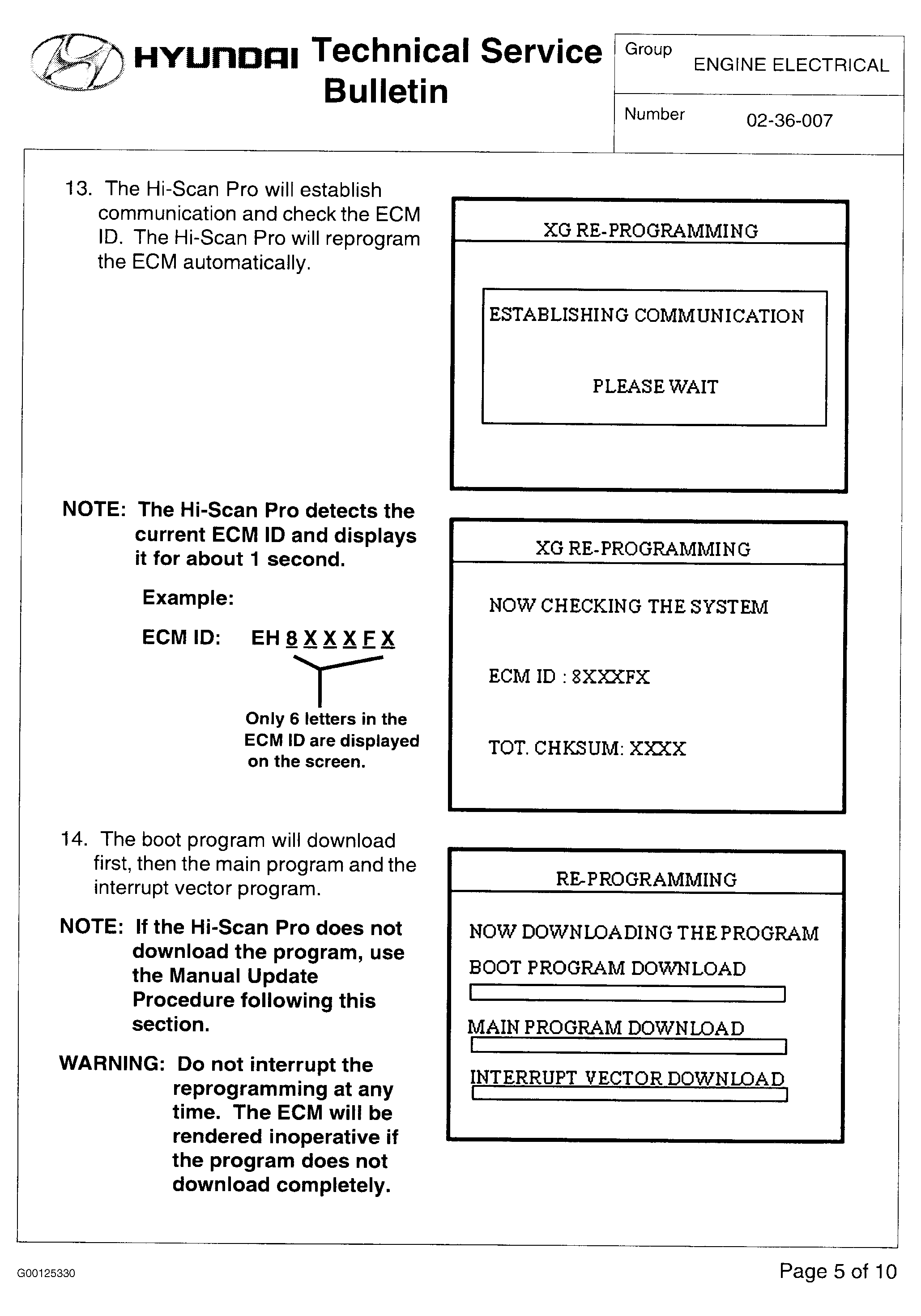

Fig 5: Page 5 of Bulletin
G00125330

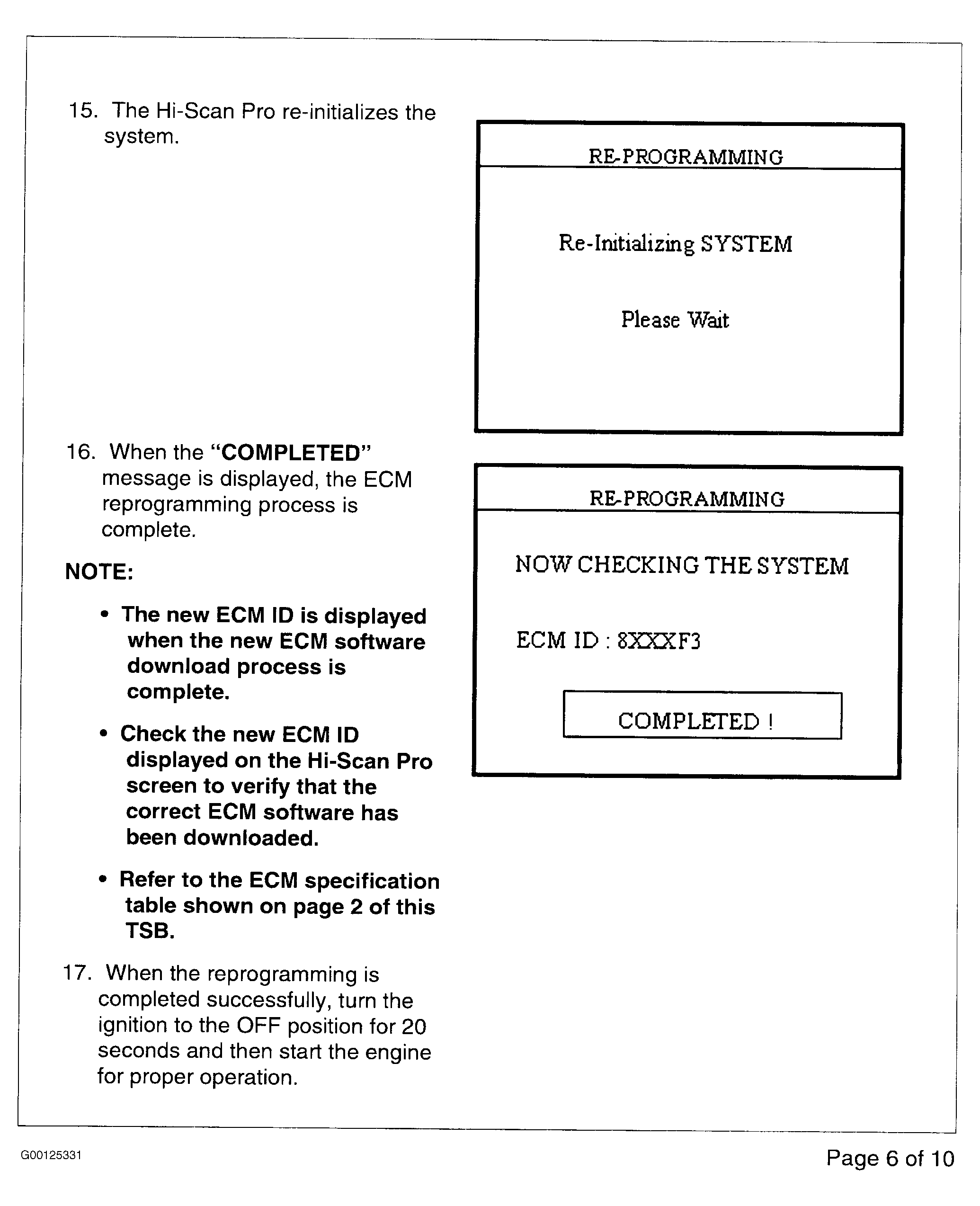

Fig 6: Page 6 of Bulletin
G00125331

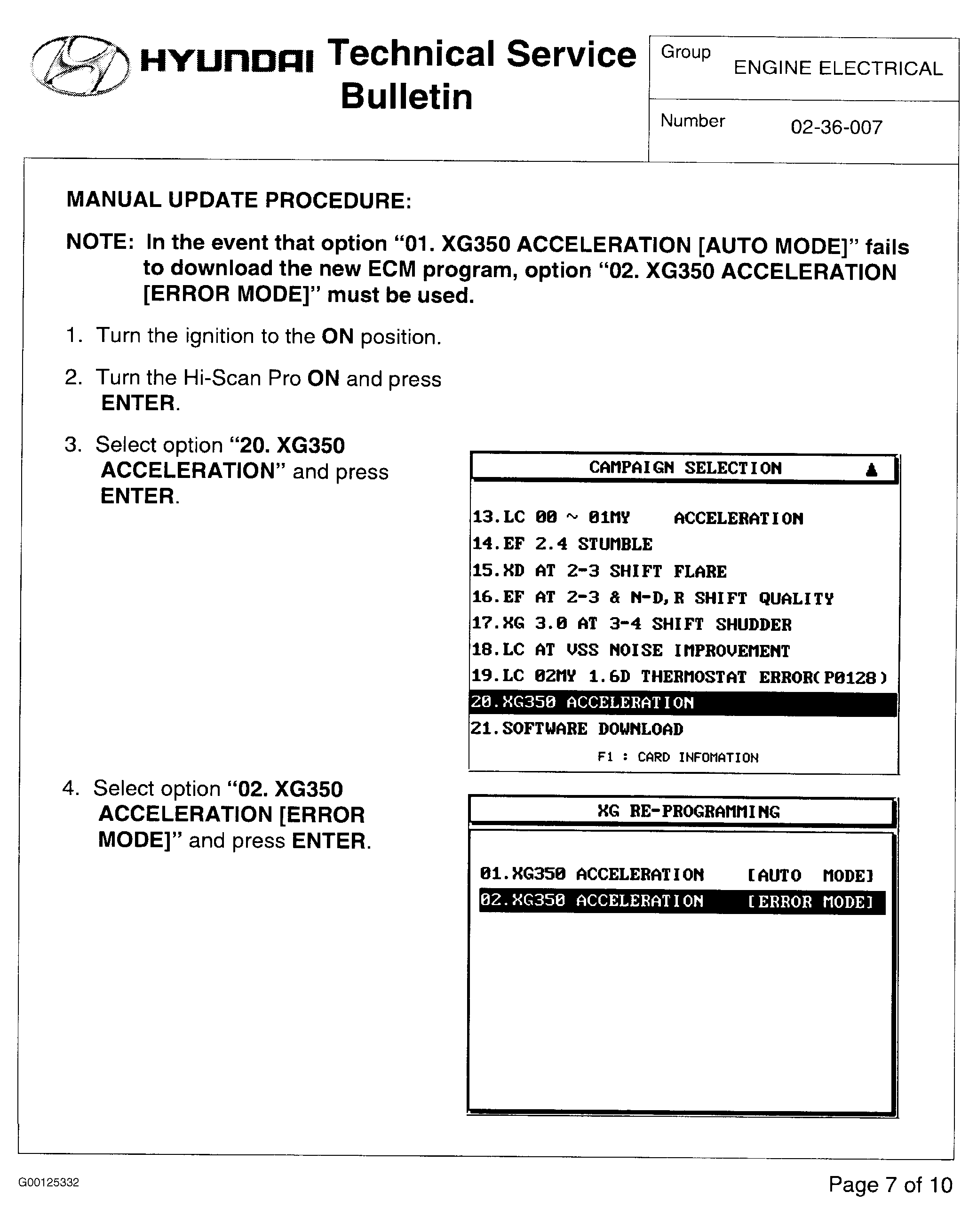

Fig 7: Page 7 of Bulletin
G00125332

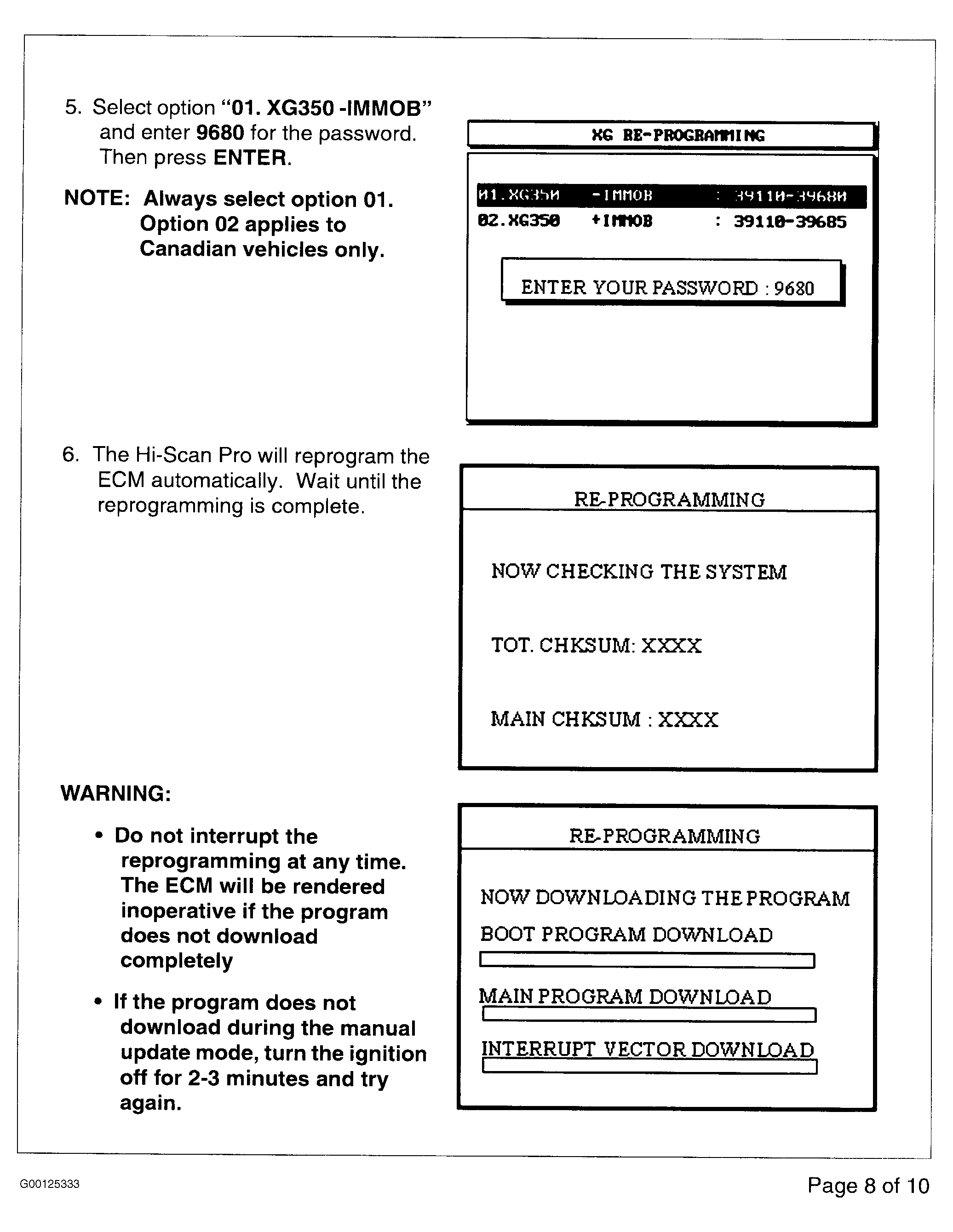

Fig 8: Page 8 of Bulletin
G00125333

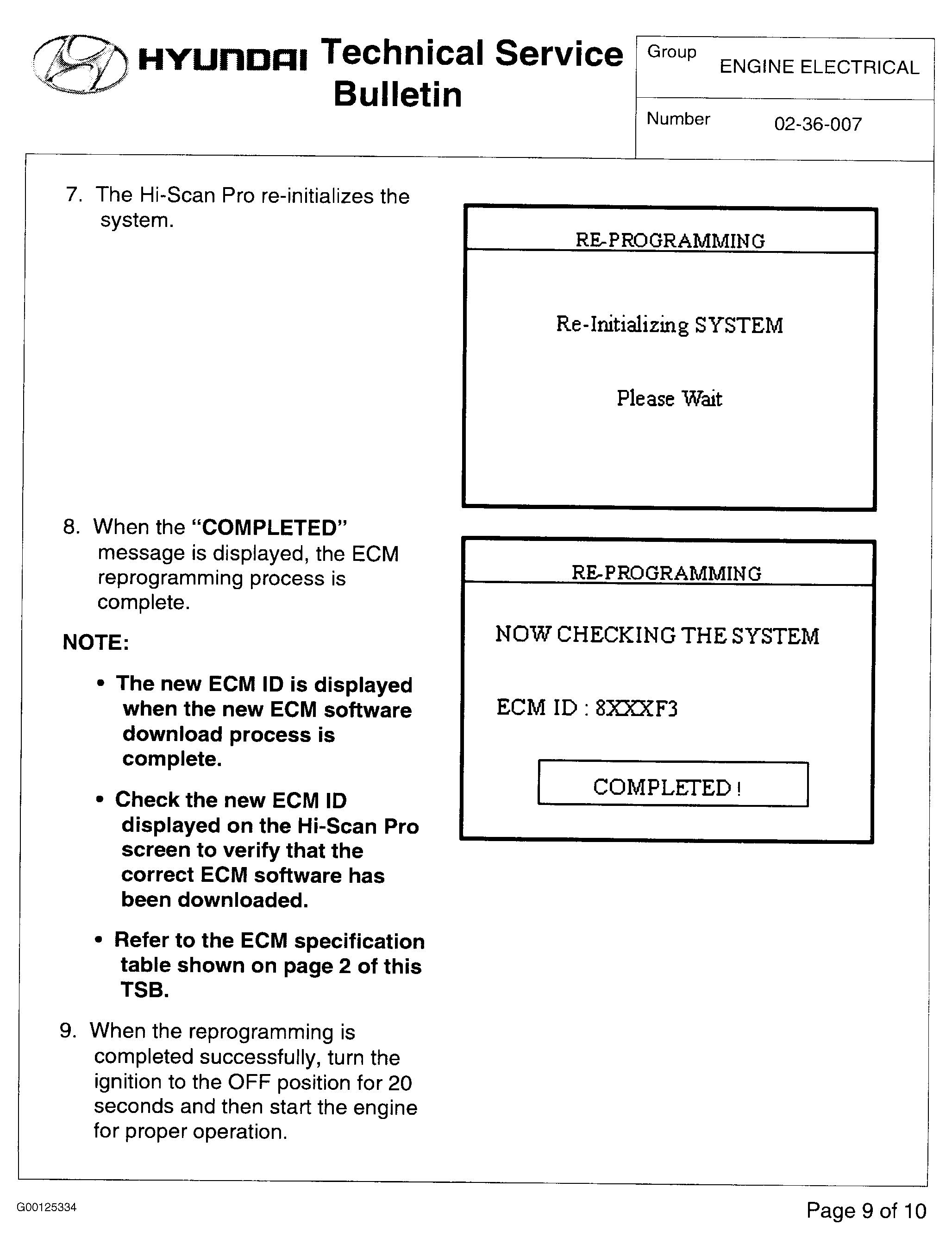

Fig 9: Page 9 of Bulletin
G00125334

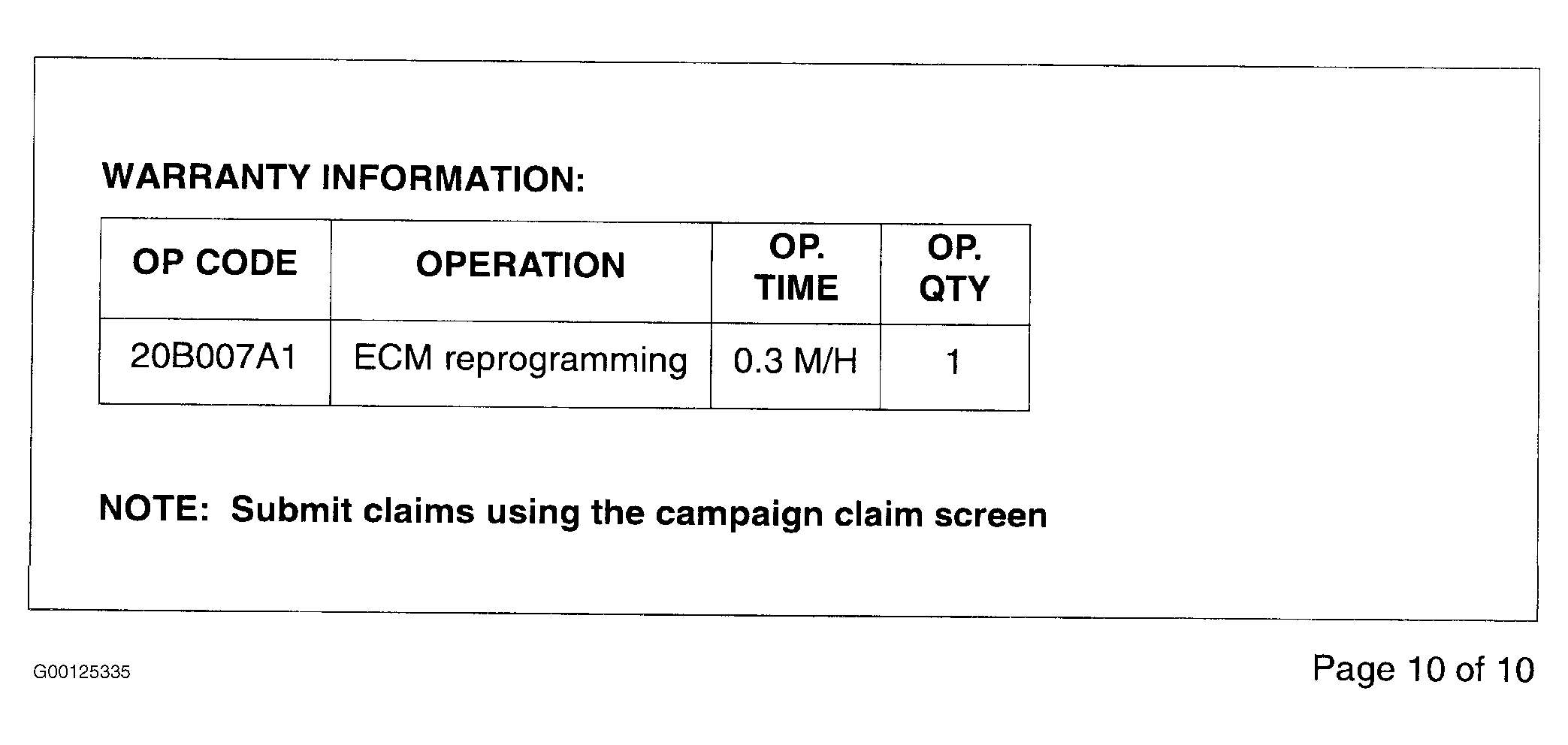

Fig 10: Page 10 of Bulletin
G00125335
