General Guideline For O2 Sensor Connectors (04-00-001)

Publication date: 2004-05-01
Reference number: 04-00-001

GENERAL GUIDELINE FOR O2 SENSOR CONNECTORS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 04-00-001, Date of Issue: May, 2004

HYUNDAI:	All Models
GROUP:	00 - General

Most O2 sensors use the wiring/connector for the "reference air" used in determining the O2 signal.

WARNING: Do not use connector grease on O2 sensor connectors. The grease may cause electrical connection problems.

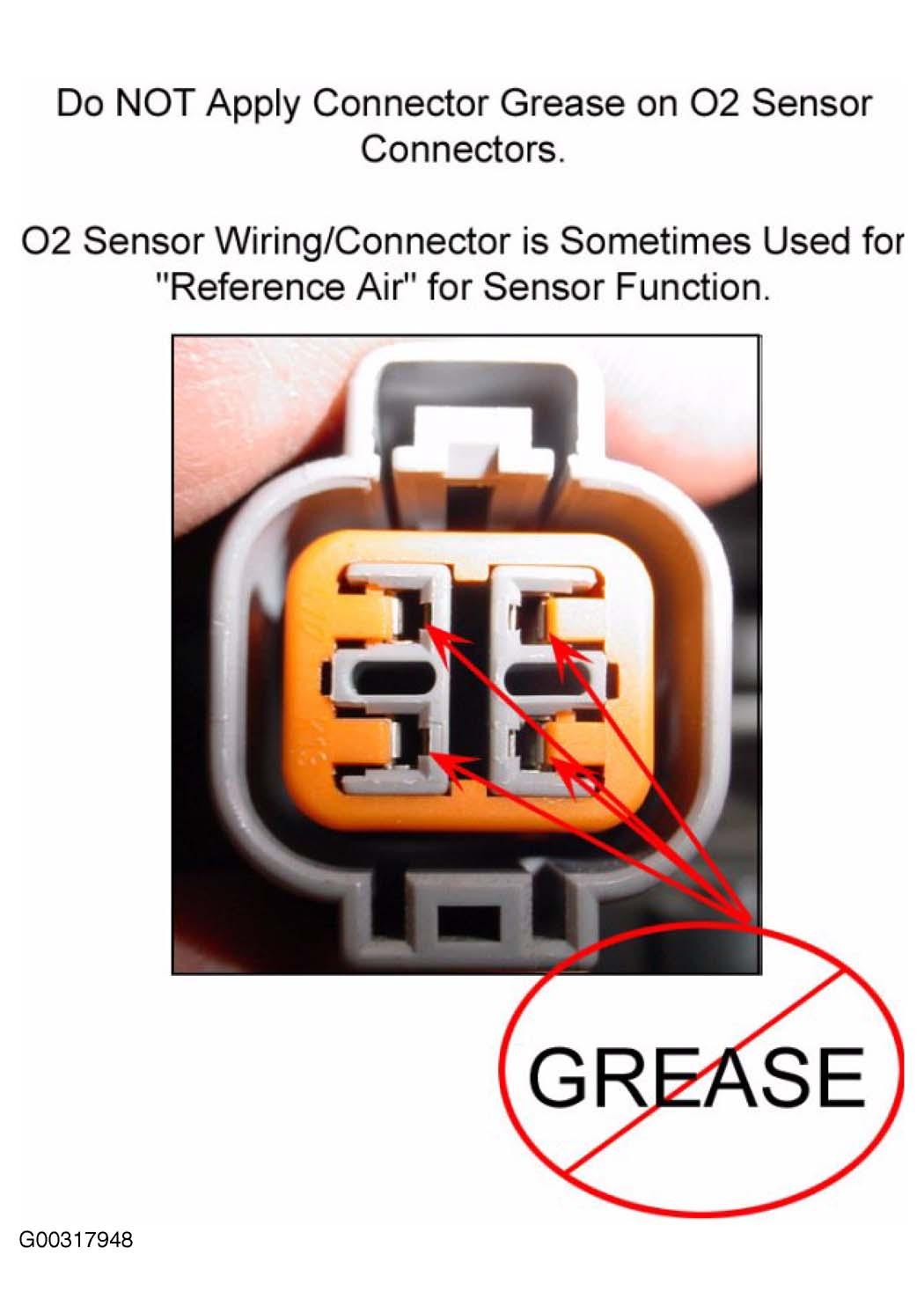

Fig 1: Oxygen Sensor Connector
