Special Tools

NOTE: Use illustrations to identify special tools used during removal and disassembly of or rebuilding of steering rack or pump. See Fig 1 - Fig 3 .

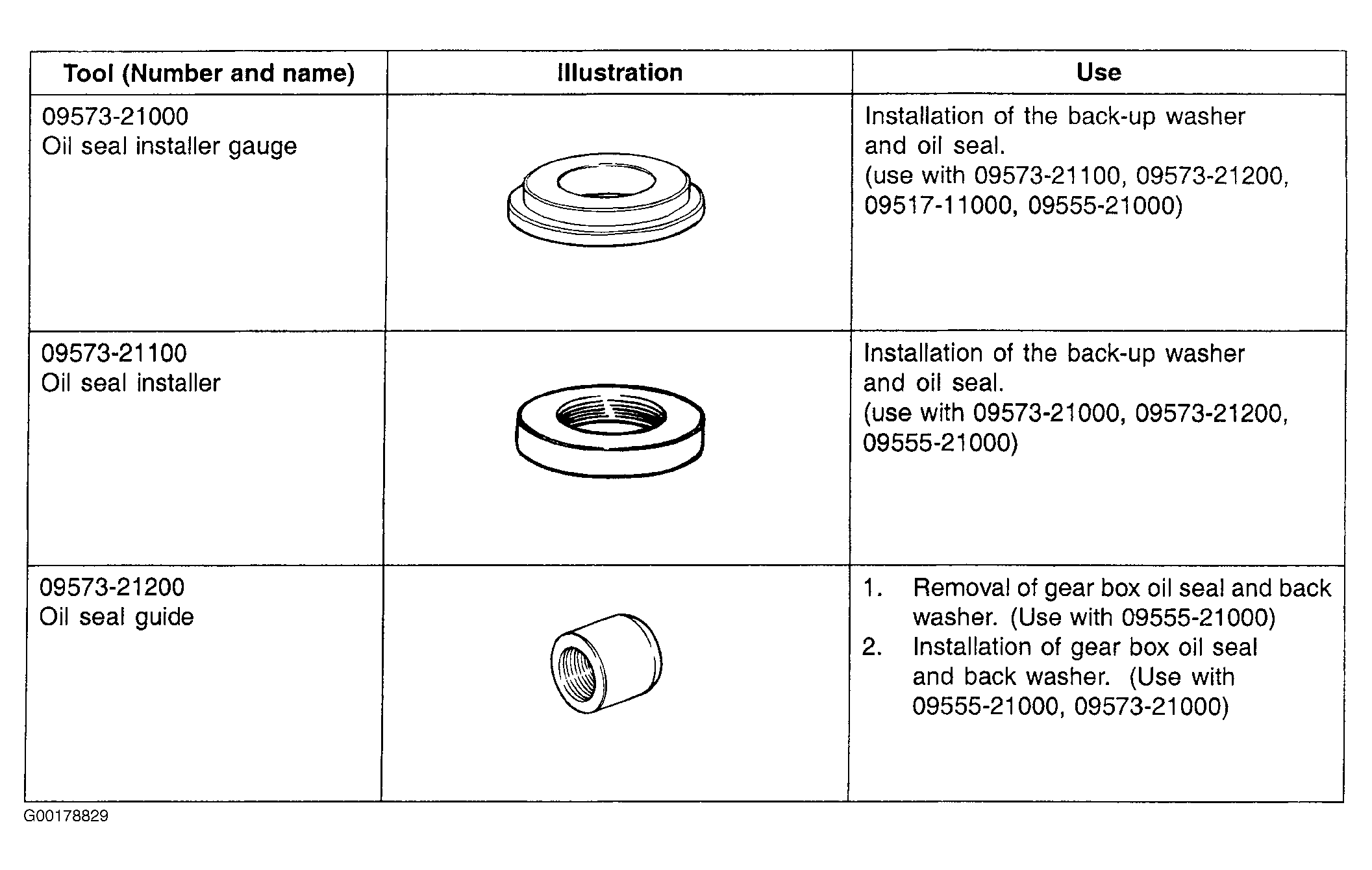

Fig 1: Identifying Special Tools (1 Of 3)

Courtesy of HYUNDAI MOTOR CO.

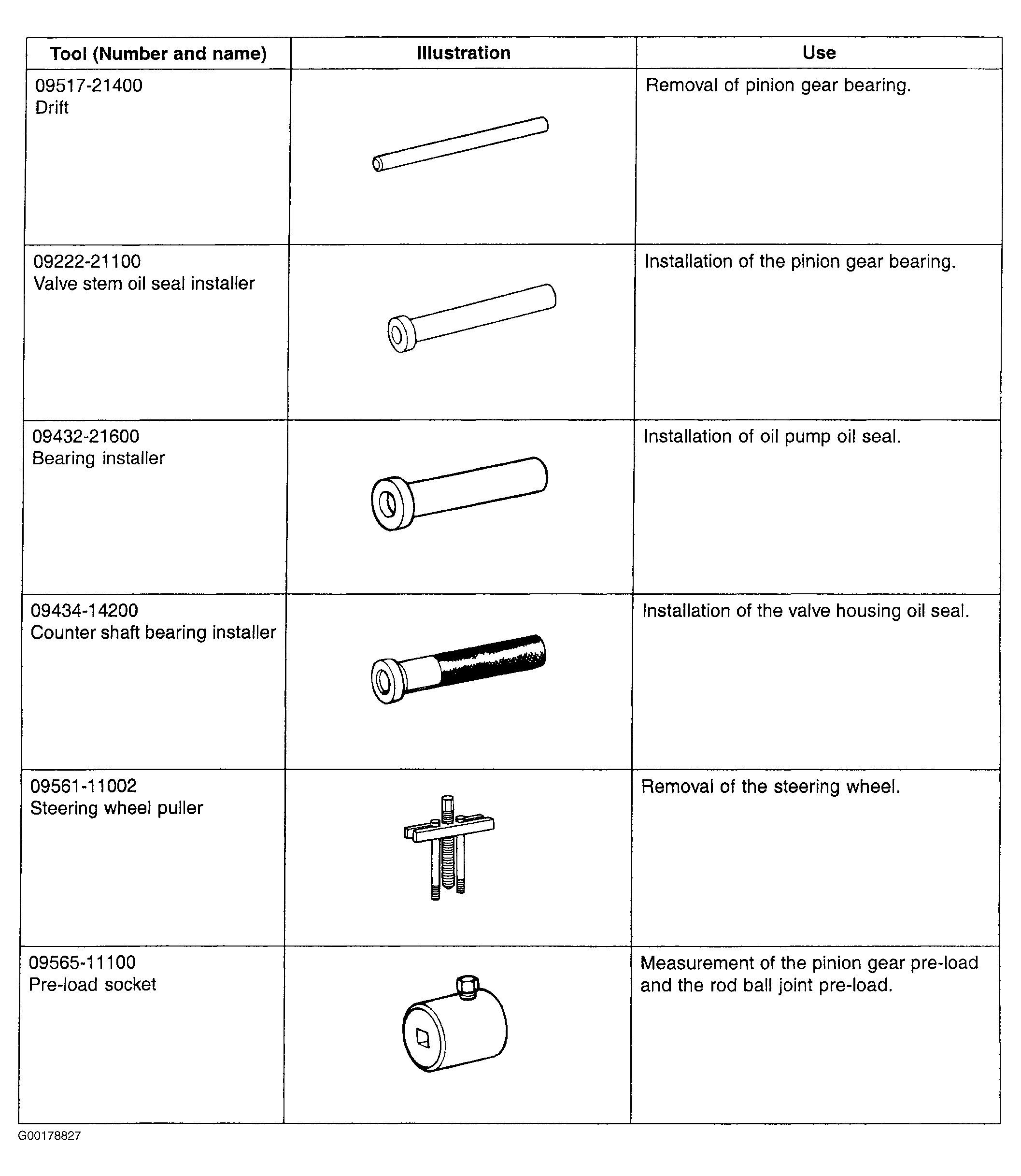

Fig 2: Identifying Special Tools (2 Of 3)

Courtesy of HYUNDAI MOTOR CO.

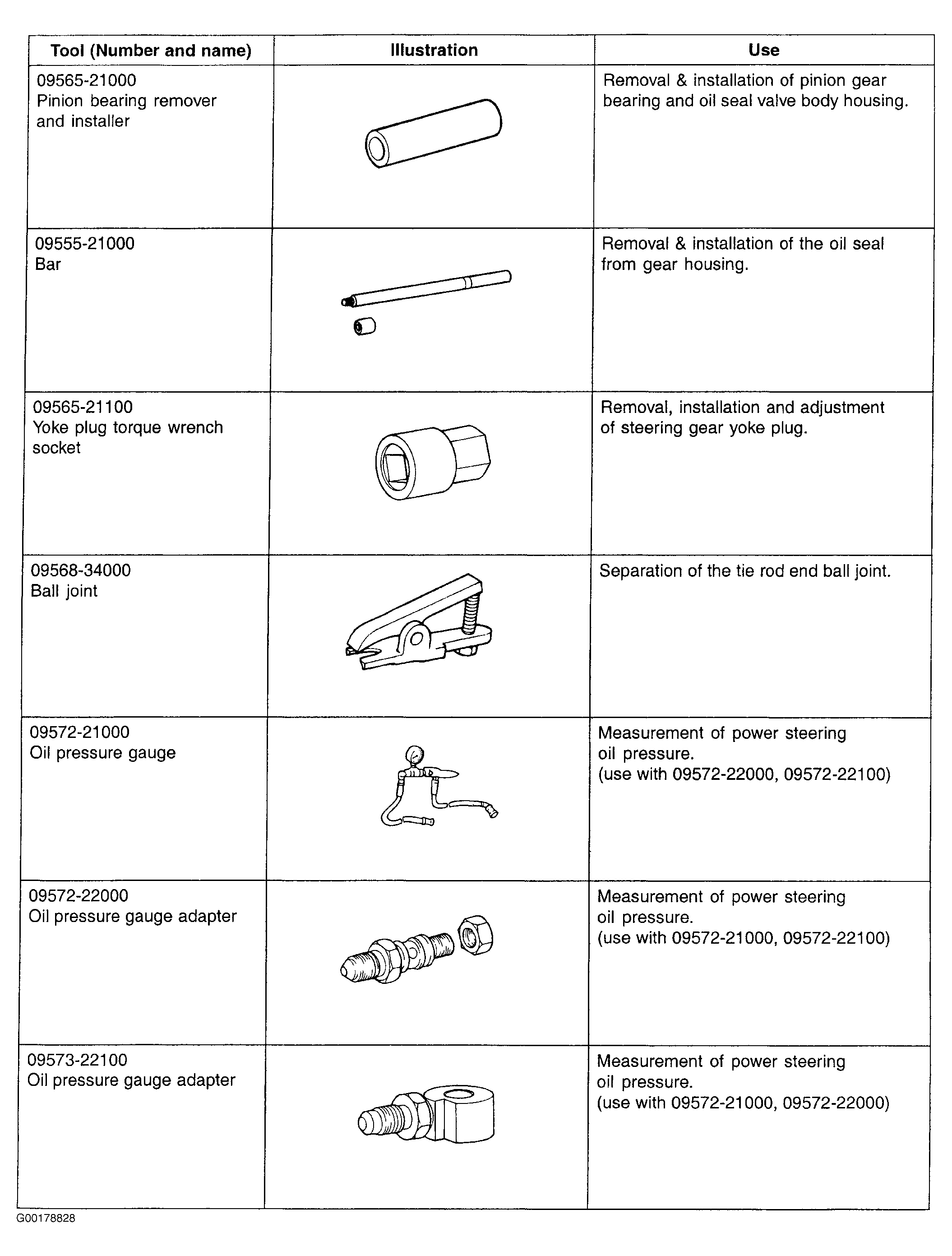

Fig 3: Identifying Special Tools (3 Of 3)

Courtesy of HYUNDAI MOTOR CO.
