HECU Terminals Inspection

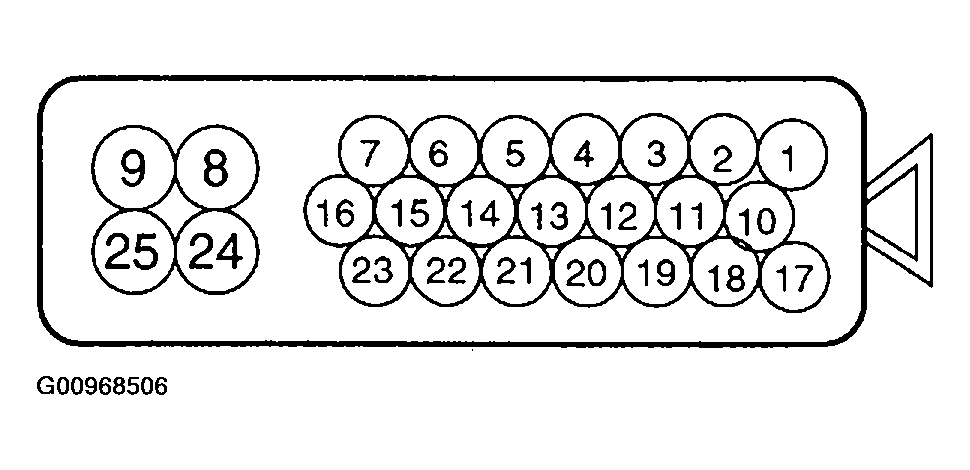

Fig 1: Identifying HECU Terminals
G00968506Courtesy of HYUNDAI MOTOR CO.

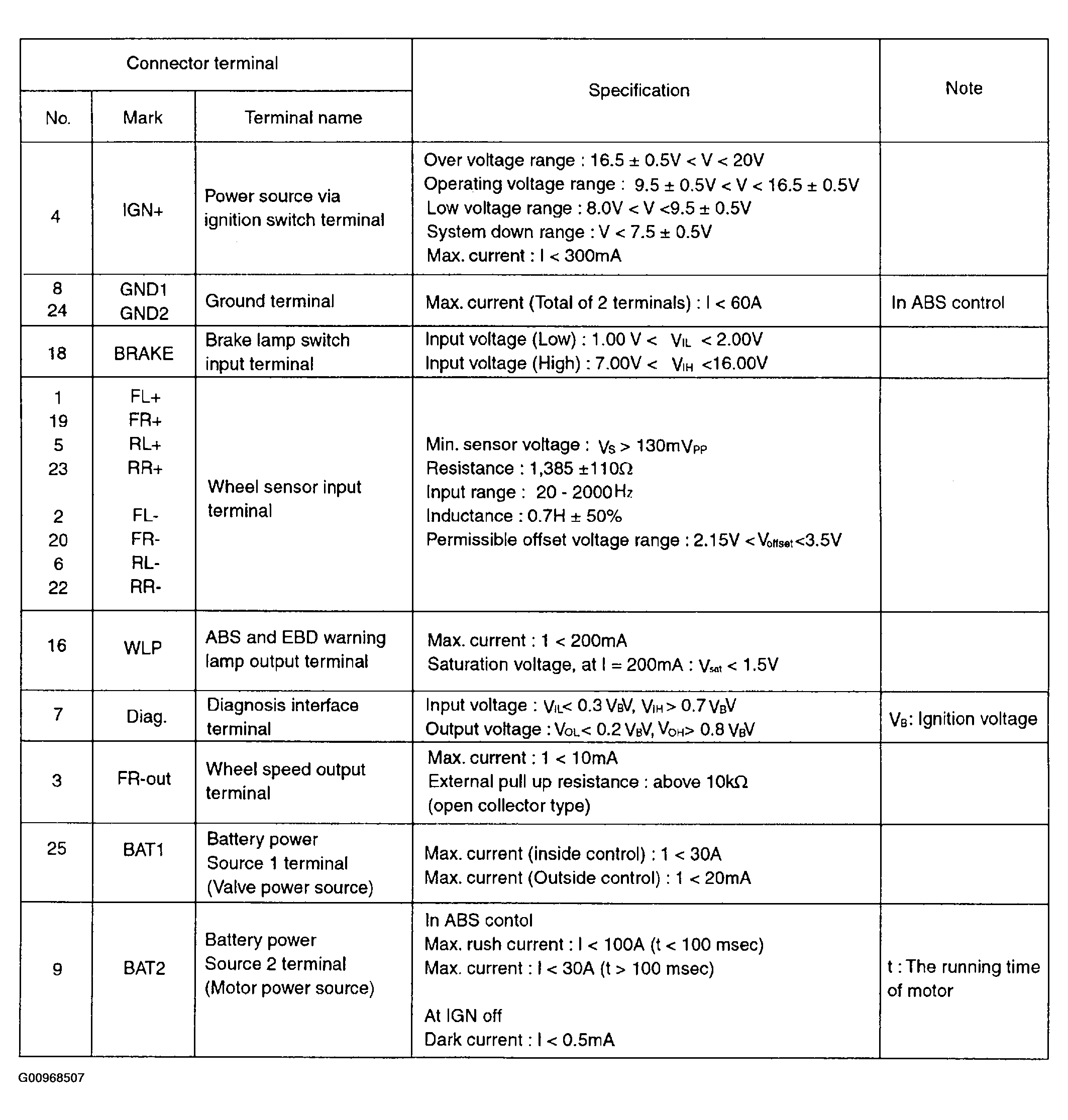

Fig 2: Identifying HECU Terminals & Specifications
G00968507Courtesy of HYUNDAI MOTOR CO.
