Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

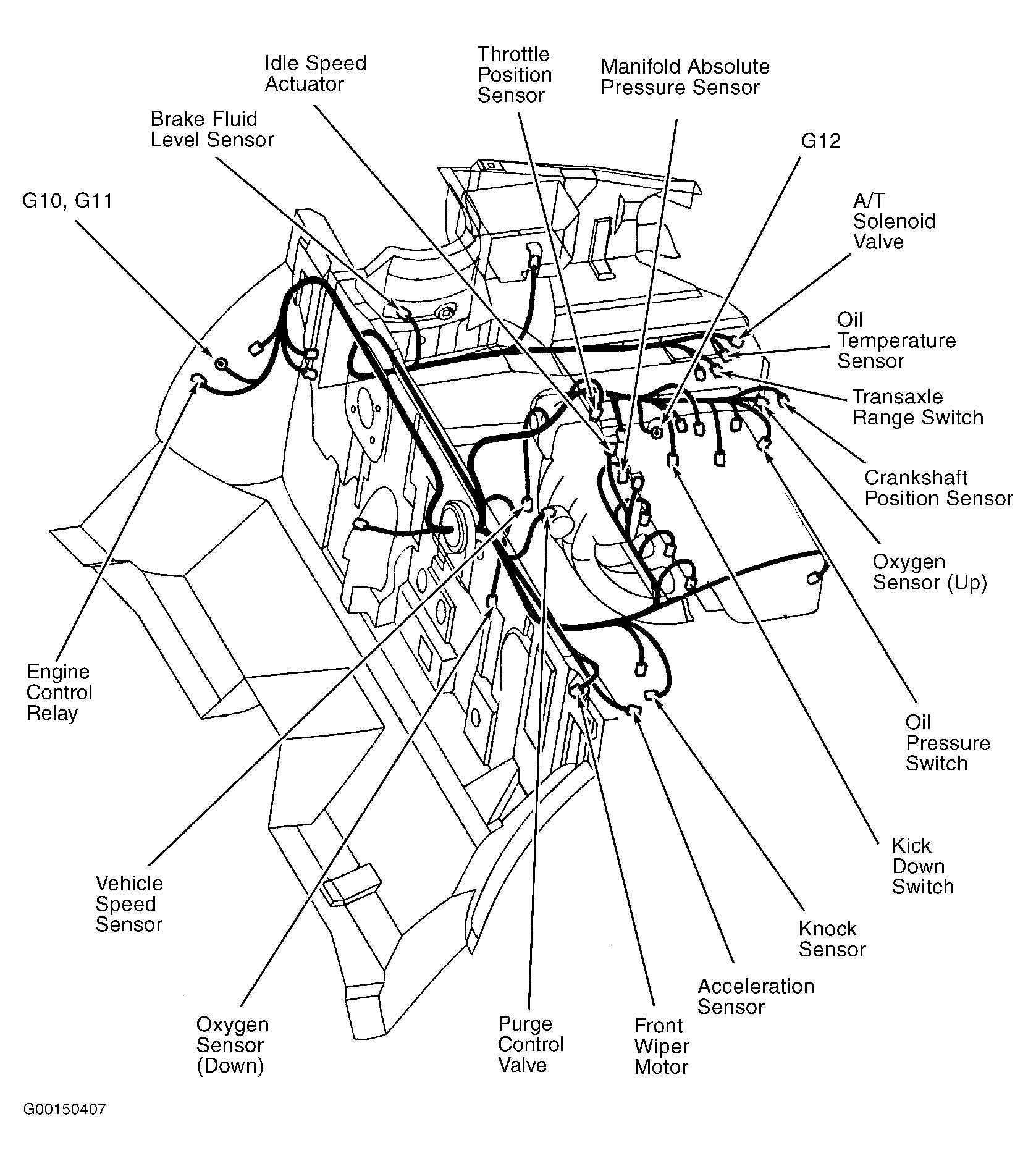

Fig 1: Engine Compartment

Courtesy of HYUNDAI MOTOR CO.

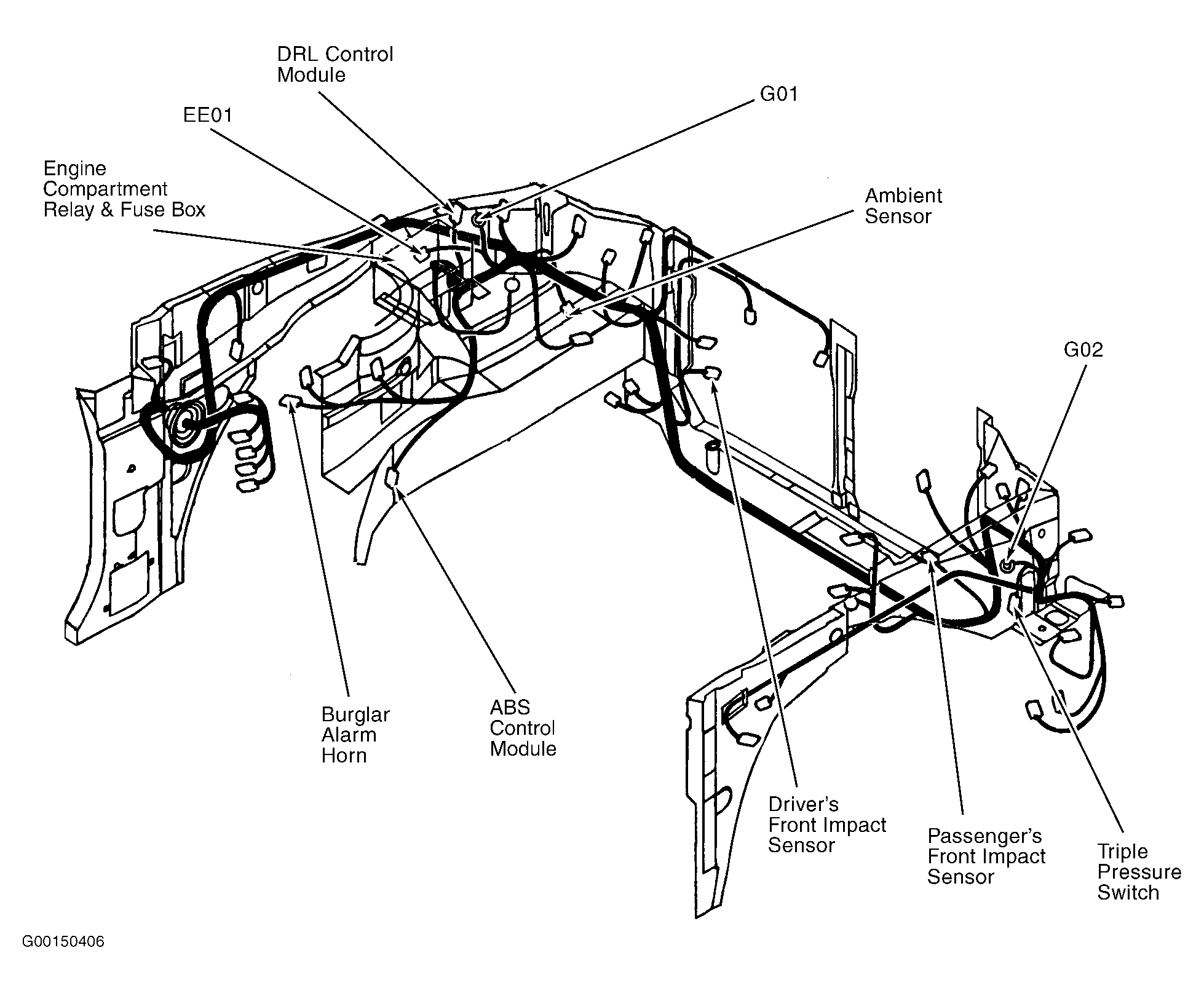

Fig 2: Engine Compartment

Courtesy of HYUNDAI MOTOR CO.

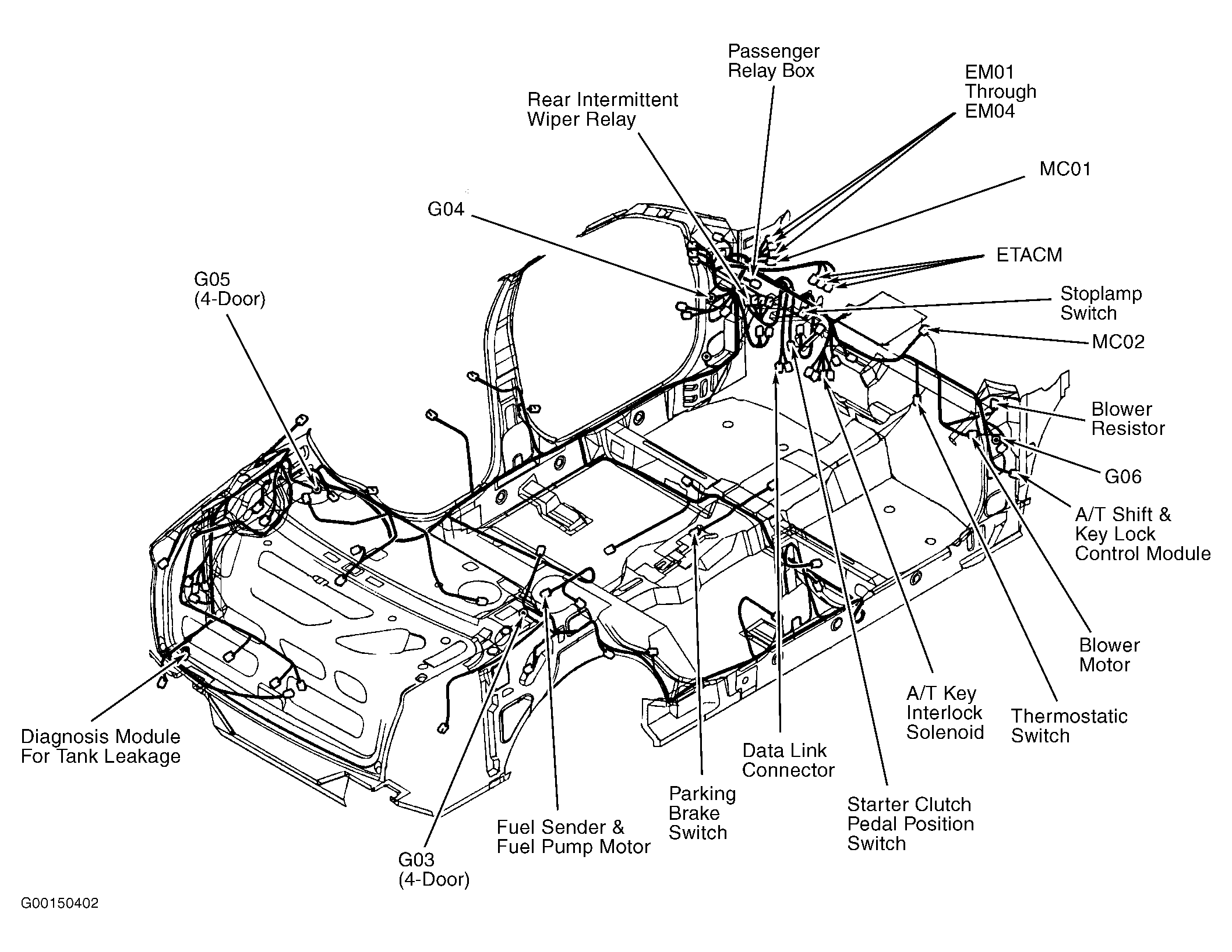

Fig 3: Vehicle Body

Courtesy of HYUNDAI MOTOR CO.

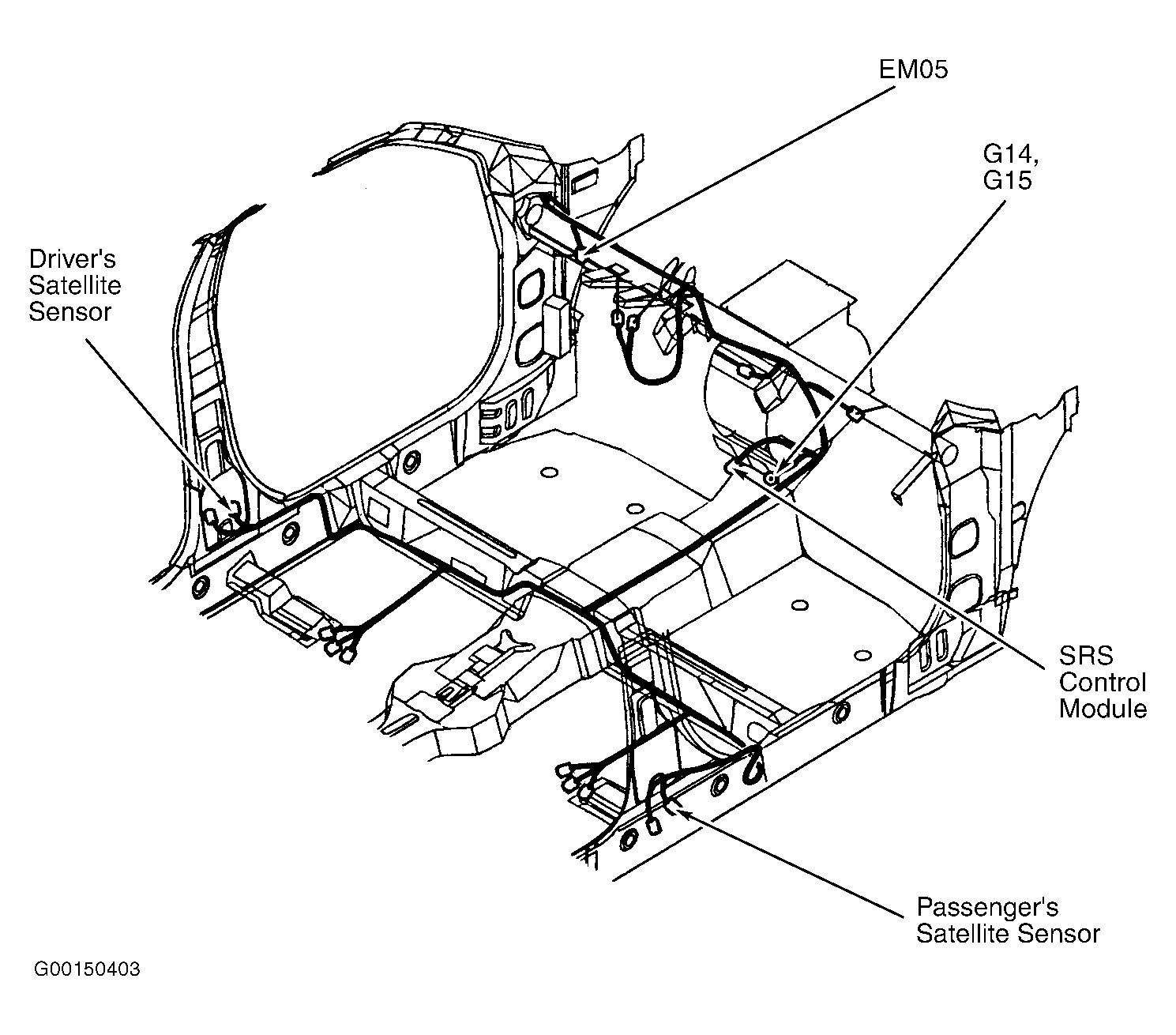

Fig 4: Front Floorpan

Courtesy of HYUNDAI MOTOR CO.

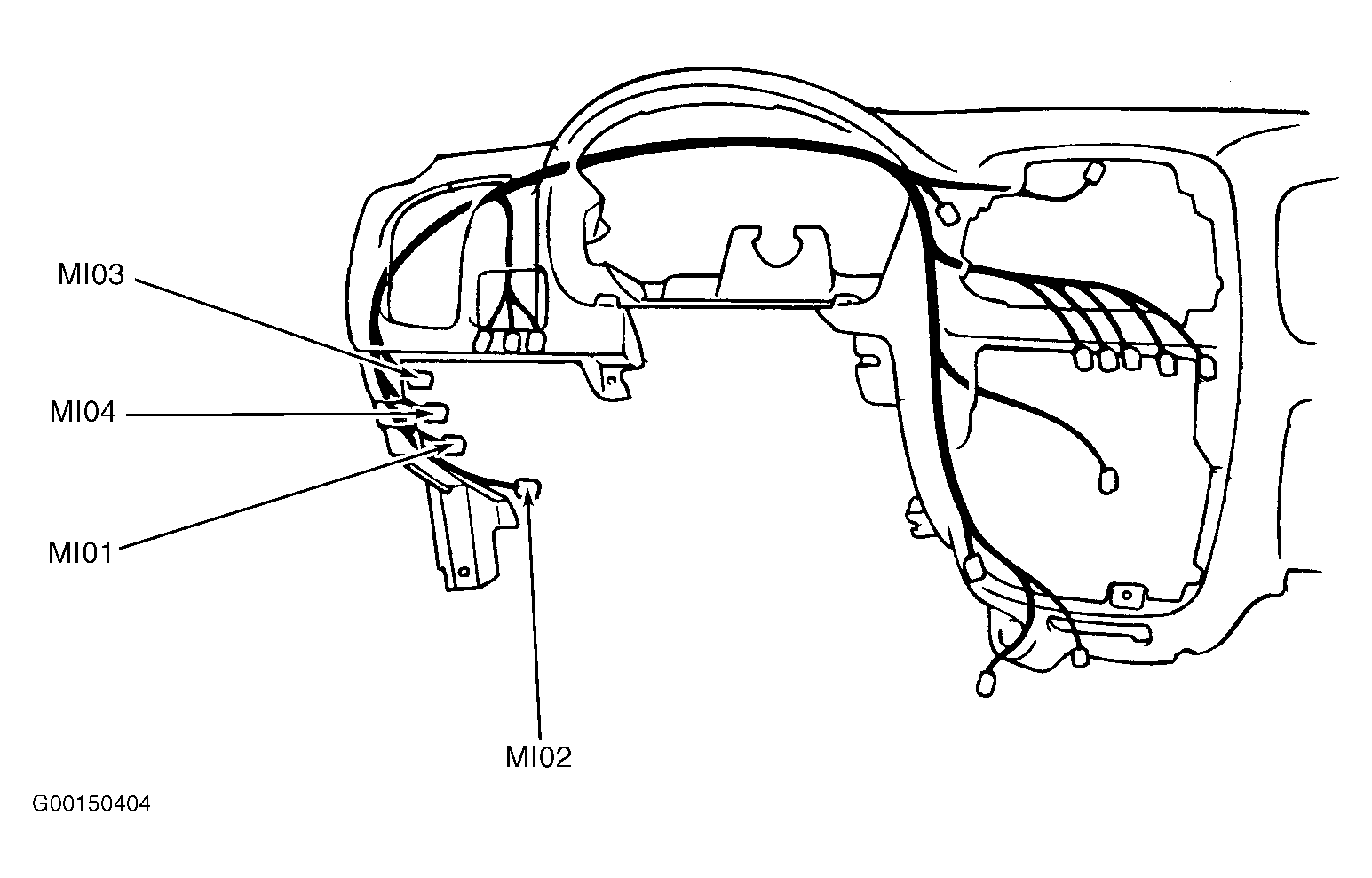

Fig 5: Dash

Courtesy of HYUNDAI MOTOR CO.

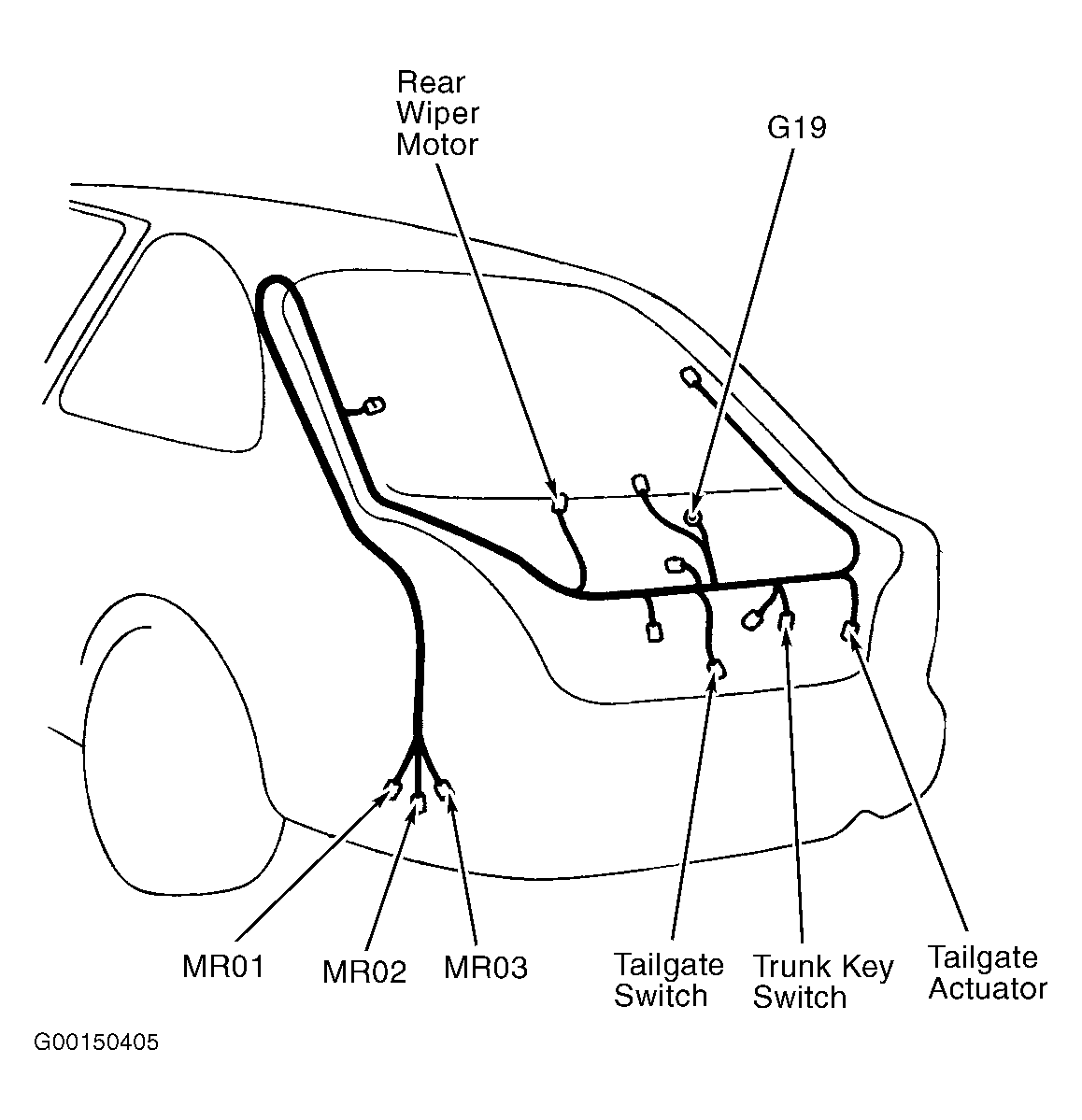

Fig 6: Tailgate

Courtesy of HYUNDAI MOTOR CO.

Fig 7: Engine Compartment Relay And Fuse Box Components

Courtesy of HYUNDAI MOTOR CO.

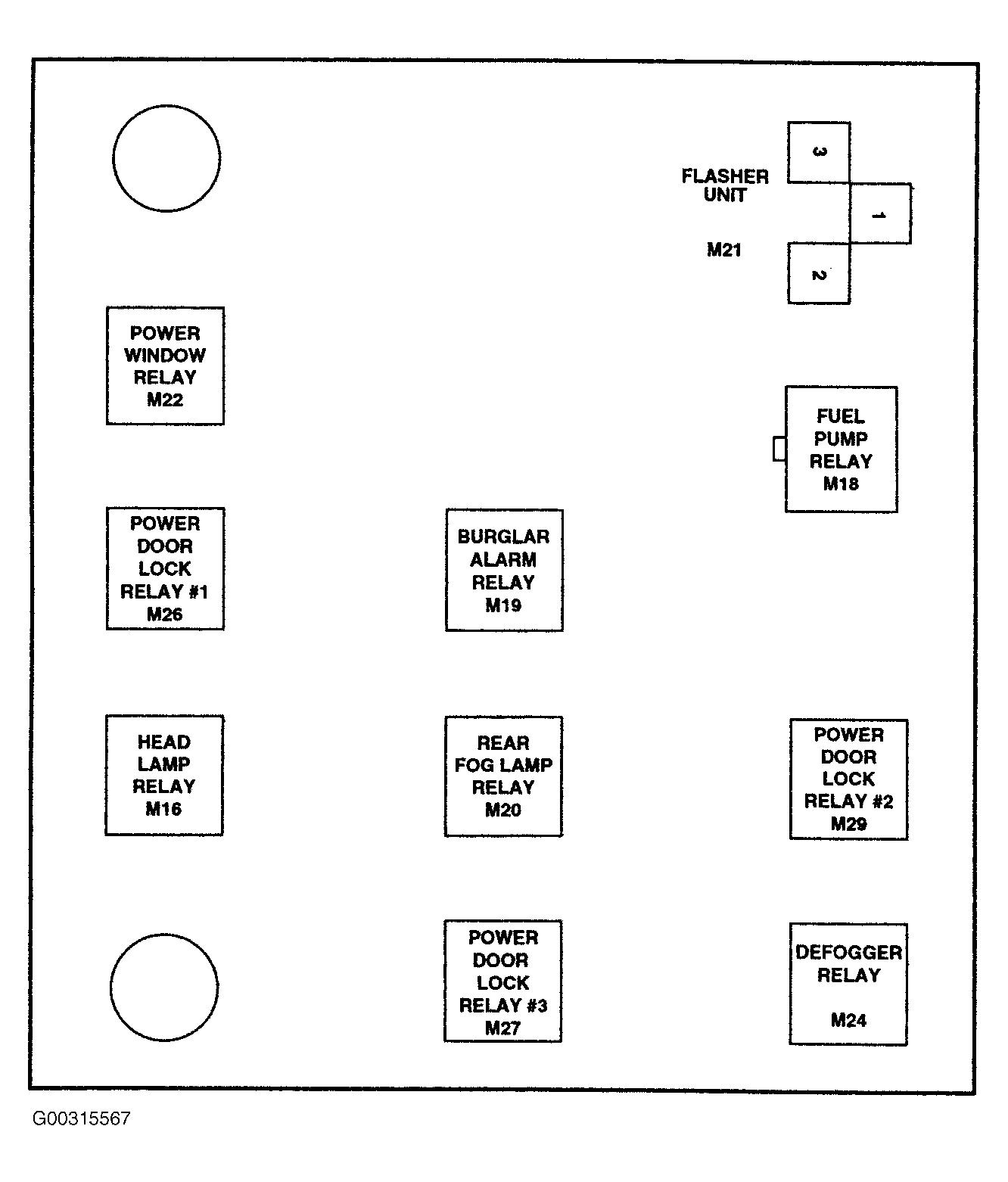

Fig 8: Passenger Compartment Relay Box Components

Courtesy of HYUNDAI MOTOR CO.
