Automatic Transaxle Shift Control: Components

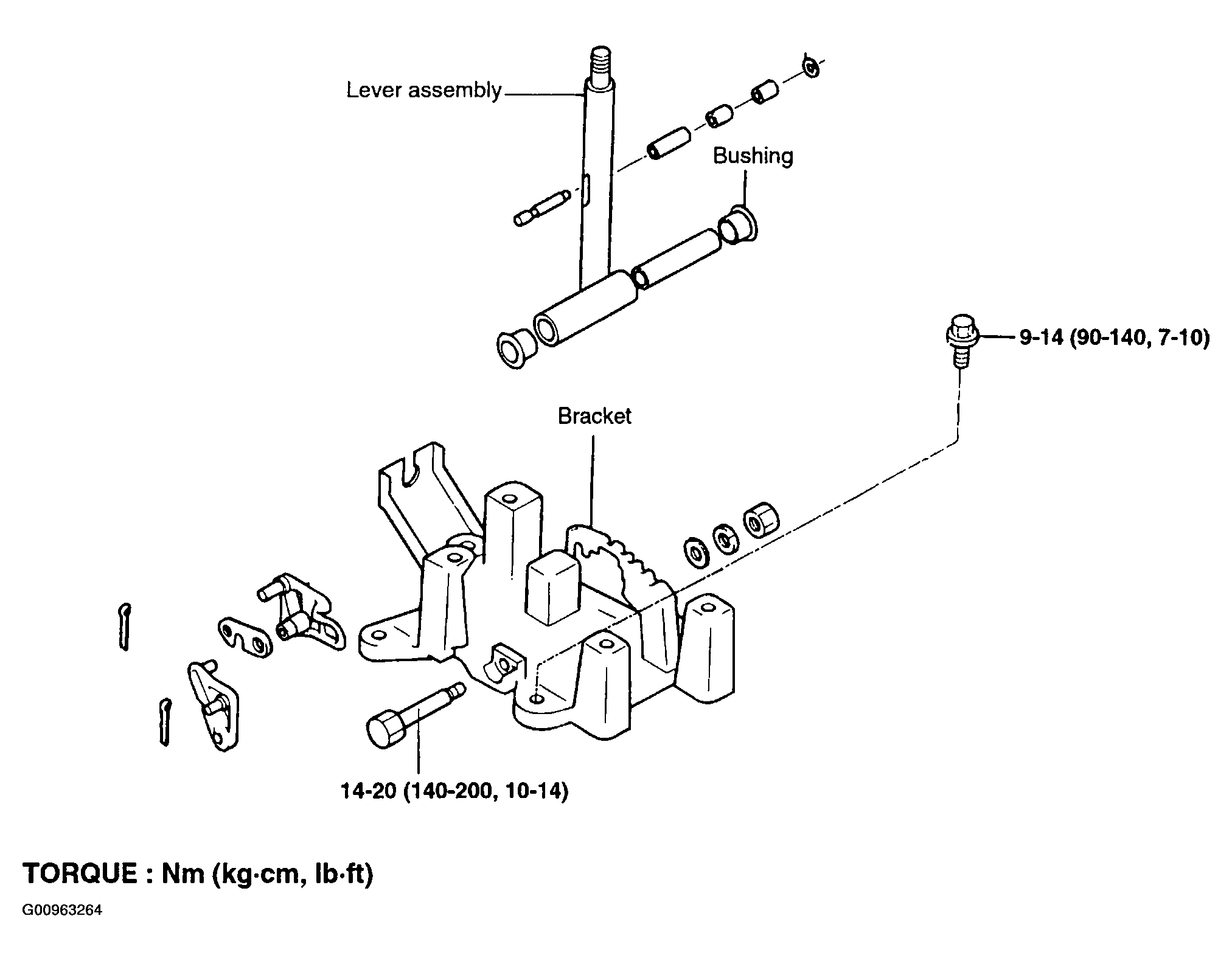

Fig 1: Automatic Transaxle Shift Control Components (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

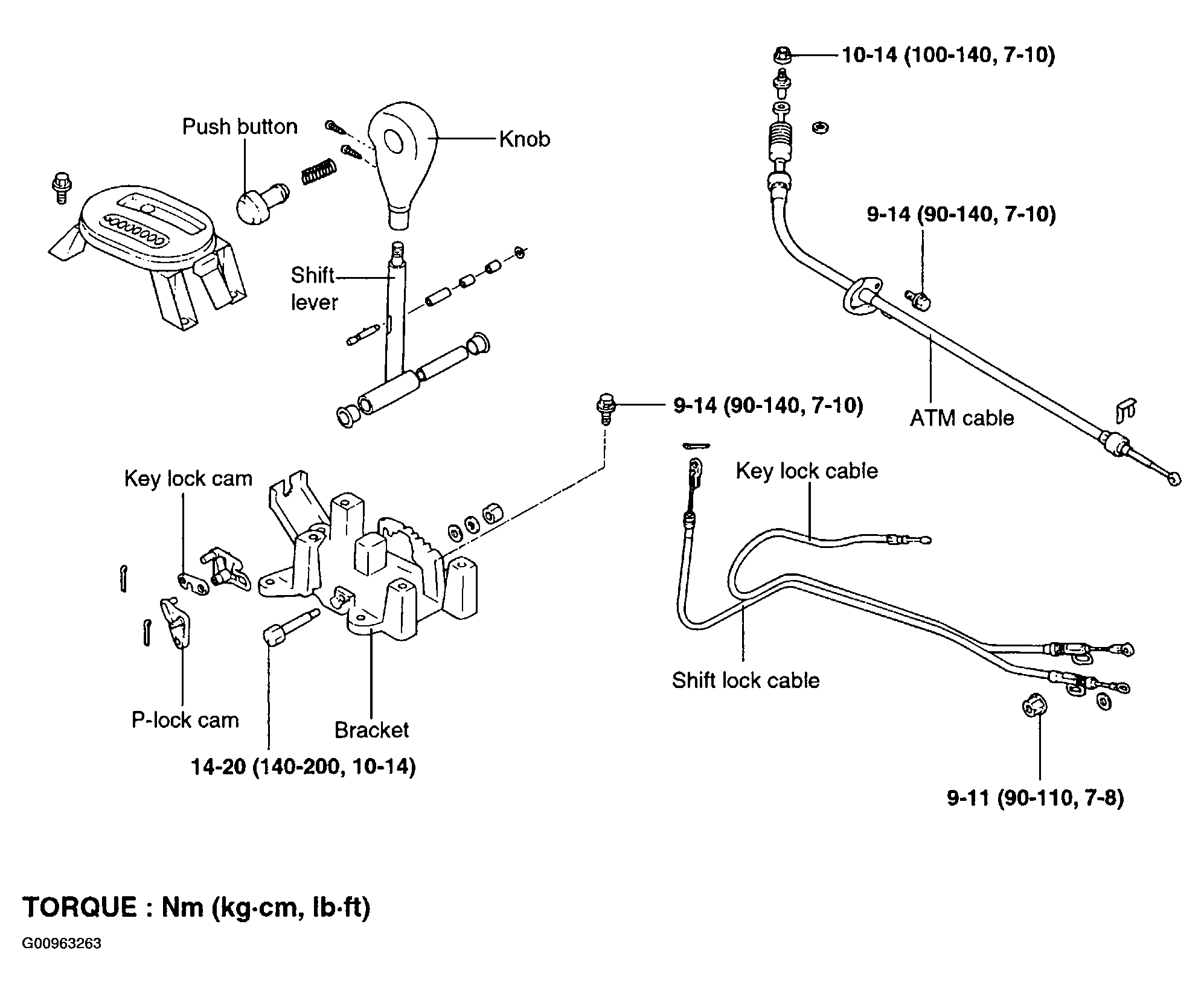

Fig 2: Automatic Transaxle Shift Control Components (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
