Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment (2.4L)

Courtesy of HYUNDAI MOTOR CO.

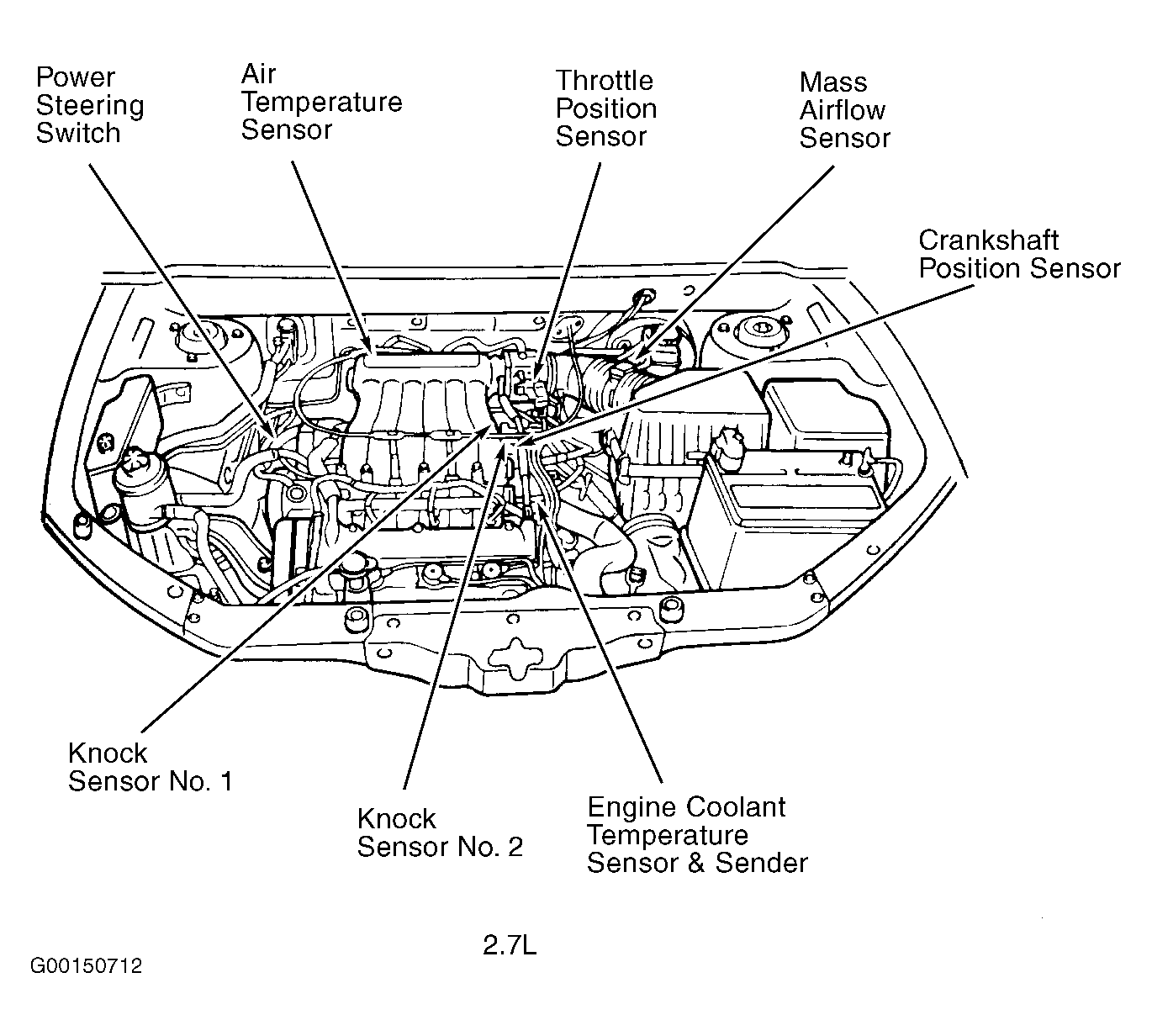

Fig 2: Engine Compartment (2.7L)

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Dash

Courtesy of HYUNDAI MOTOR CO.

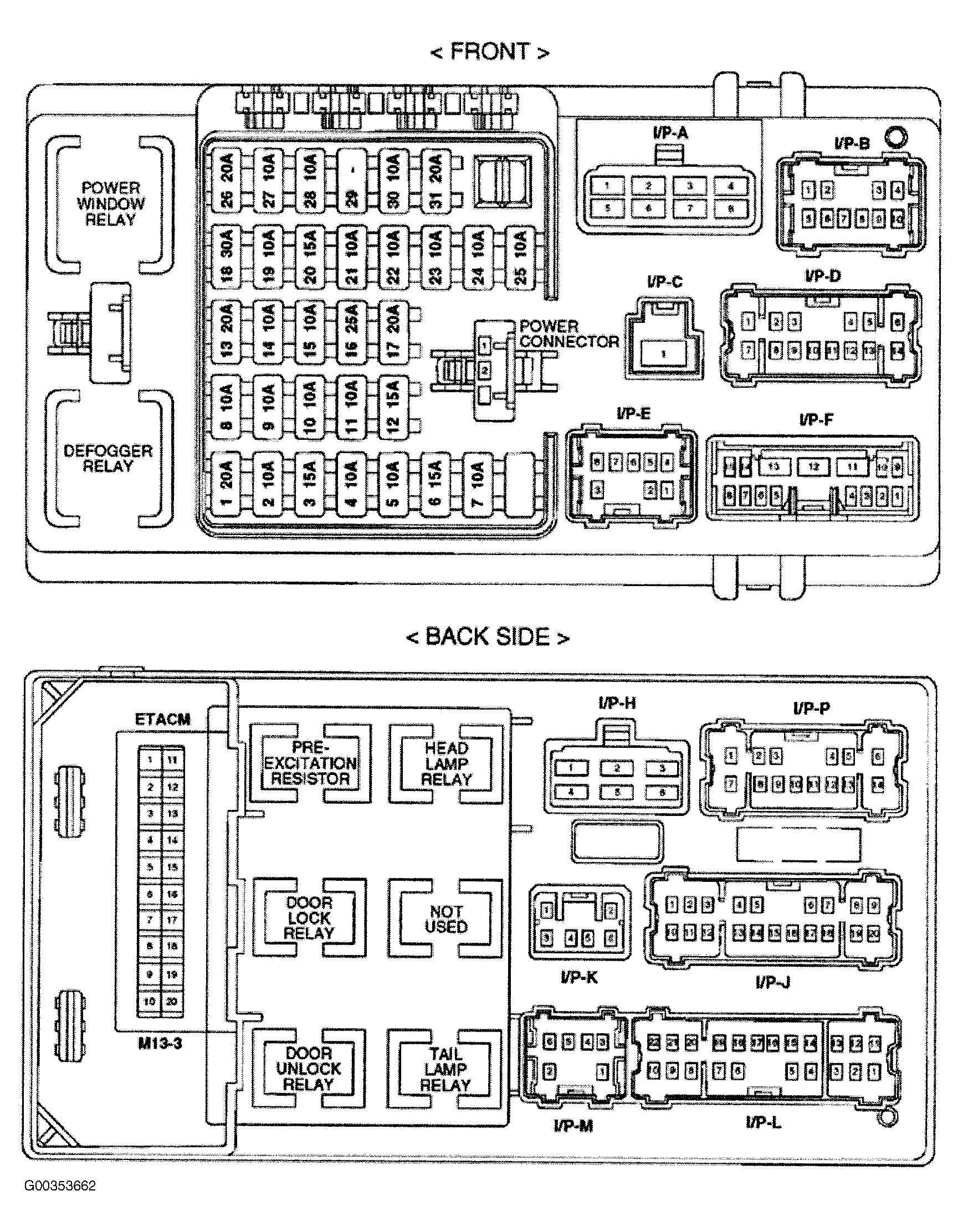

Fig 4: Engine Compartment Junction Block Relays And Fuses

Courtesy of HYUNDAI MOTOR CO.

Fig 5: Passenger Compartment Junction Block Relays

Courtesy of HYUNDAI MOTOR CO.
