Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module | Left rear of engine compartment, below brake master cylinder. |
| Cruise Control Module | On right side of engine compartment. |
| Daytime Running Lights Control Module | At left front corner of engine compartment. |
| Engine Control Module | Below center of dash. |
| ETACM | On rear of passenger compartment junction block. |
| Immobilizer Control Module | Behind center of dash. |
| Powertrain Control Module | Below center of dash. |
| Rear Wiper Motor Control Module | Inside lower center of tailgate, behind trim panel. |

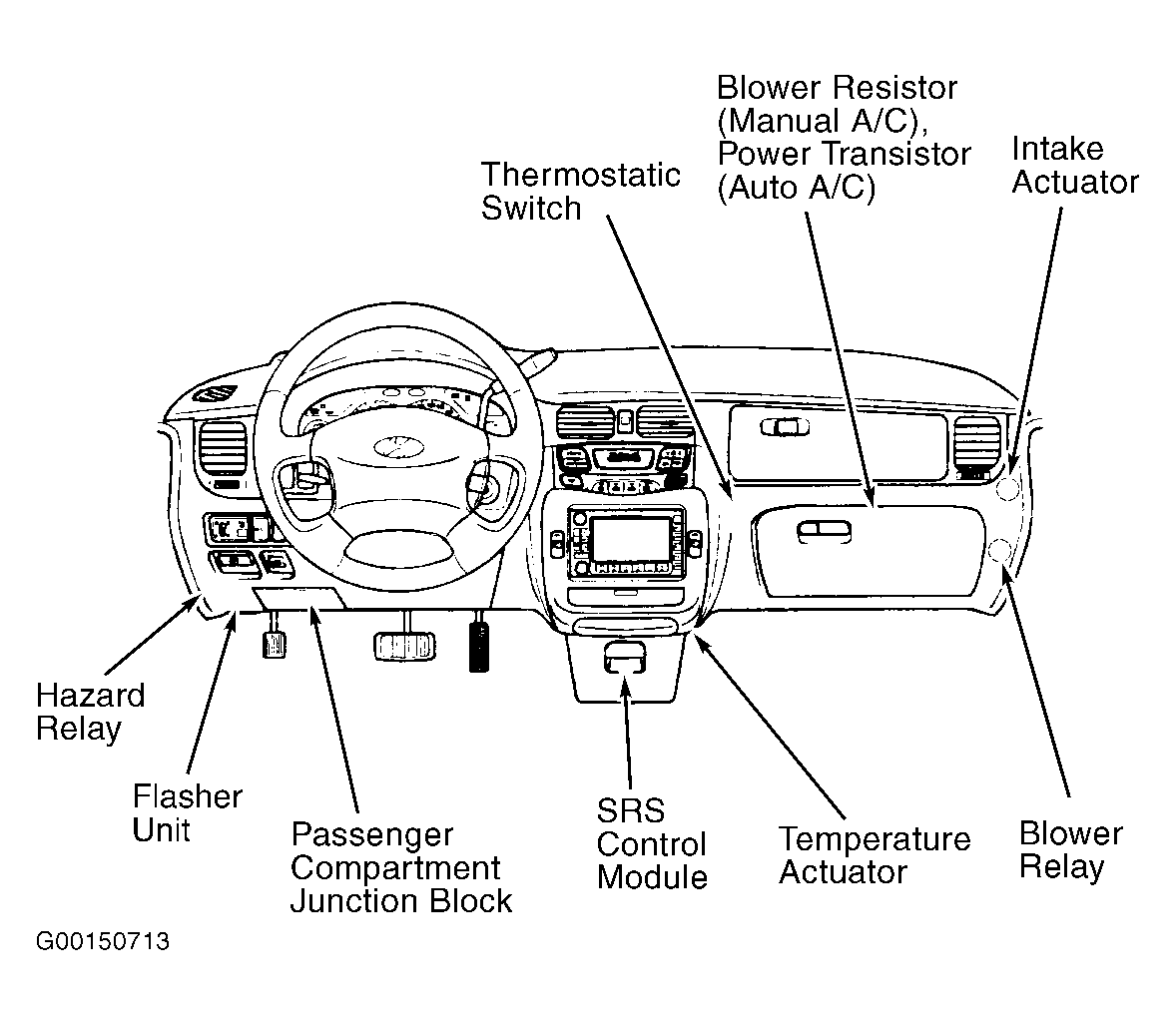

| SRS Control Module | Beneath center of dash. See Figure. |
| Transmission Control Module | Below center of dash. |
