Hyundai
>>
2003
>>
Santa Fe Base, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case Assembly
>>
General
>>
Special Tools
Special Tools

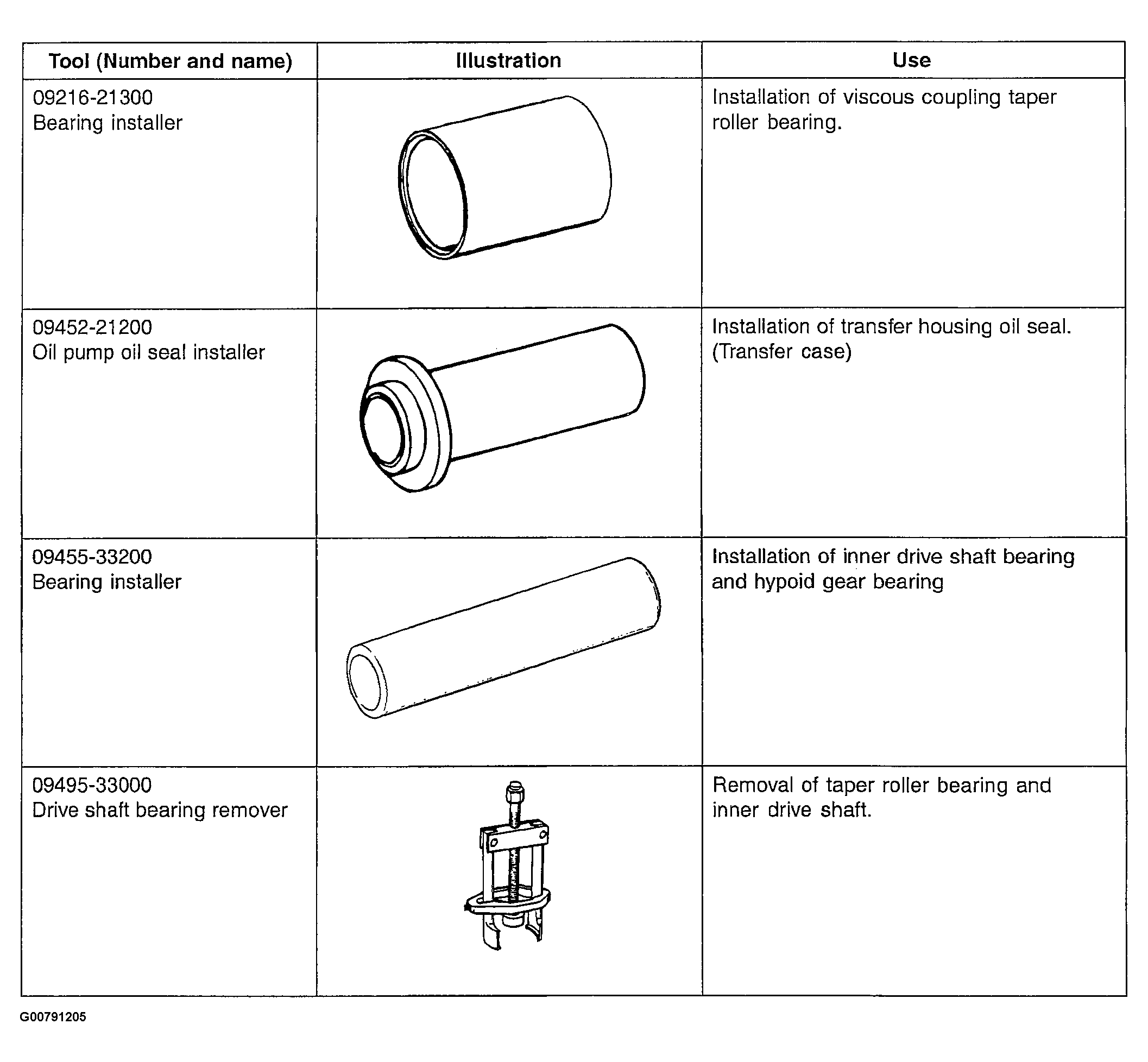

Fig 1: Special Tools
Courtesy of HYUNDAI MOTOR CO.

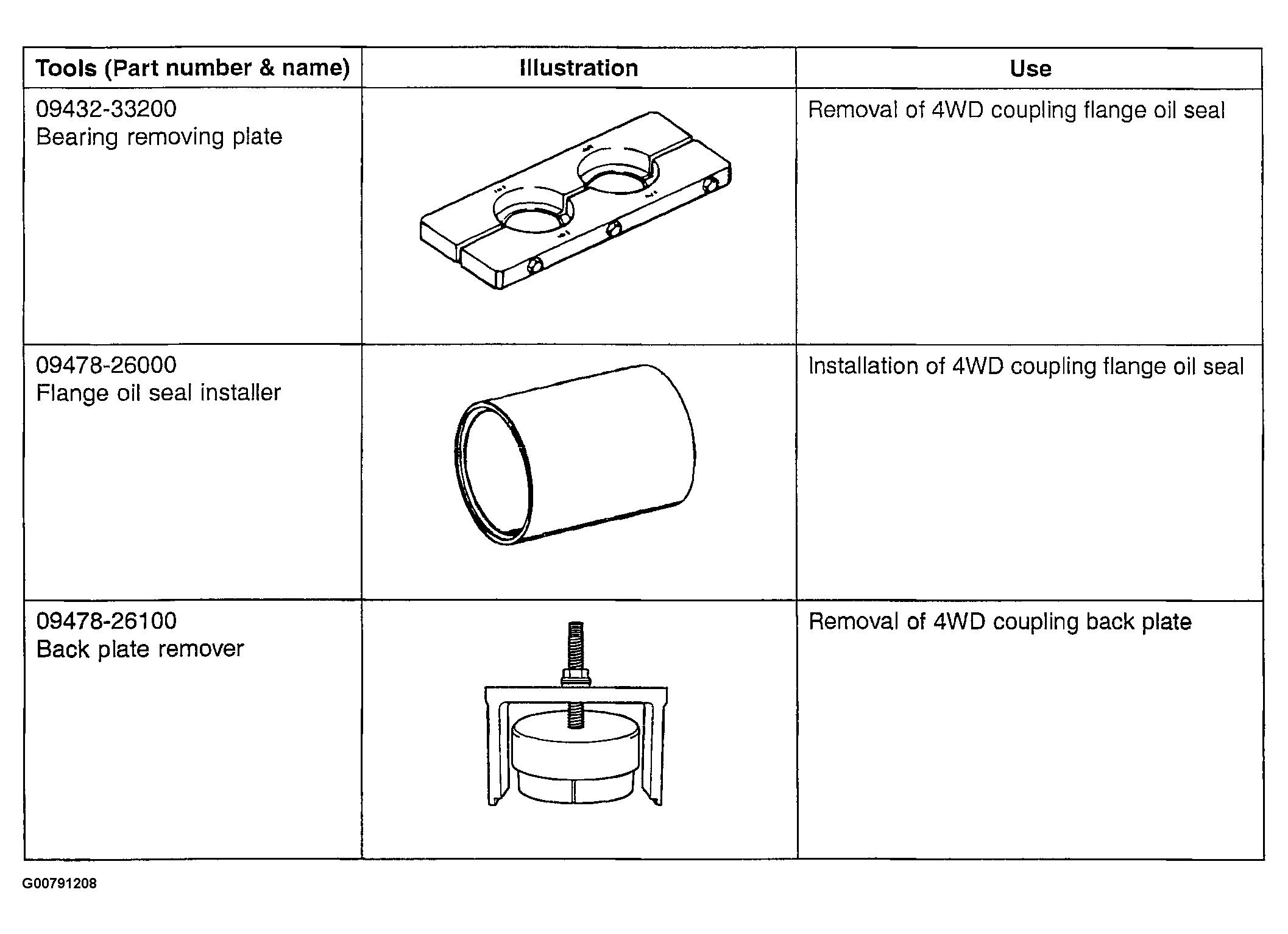

Fig 2: Coupling Special Tools
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
