Home >> Hyundai >> 2003 >> Santa Fe Base, Automatic >> Repair and Diagnosis >> Transmission >> Transfer Case Assembly >> General >> Specifications

Transfer Case Assembly: General: Specifications

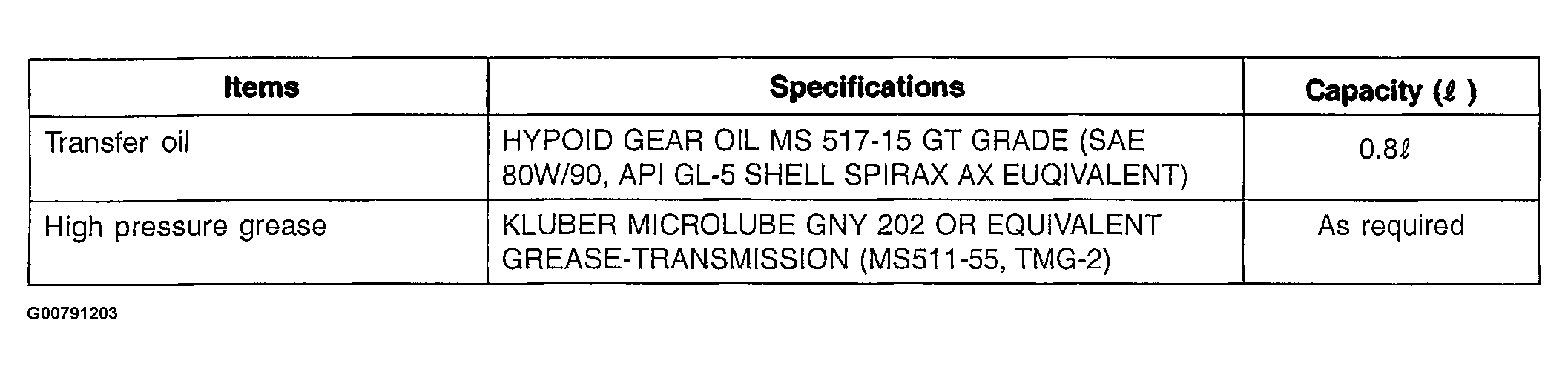

Fig 1: Lubrication Specifications

G00791203

Courtesy of HYUNDAI MOTOR CO.

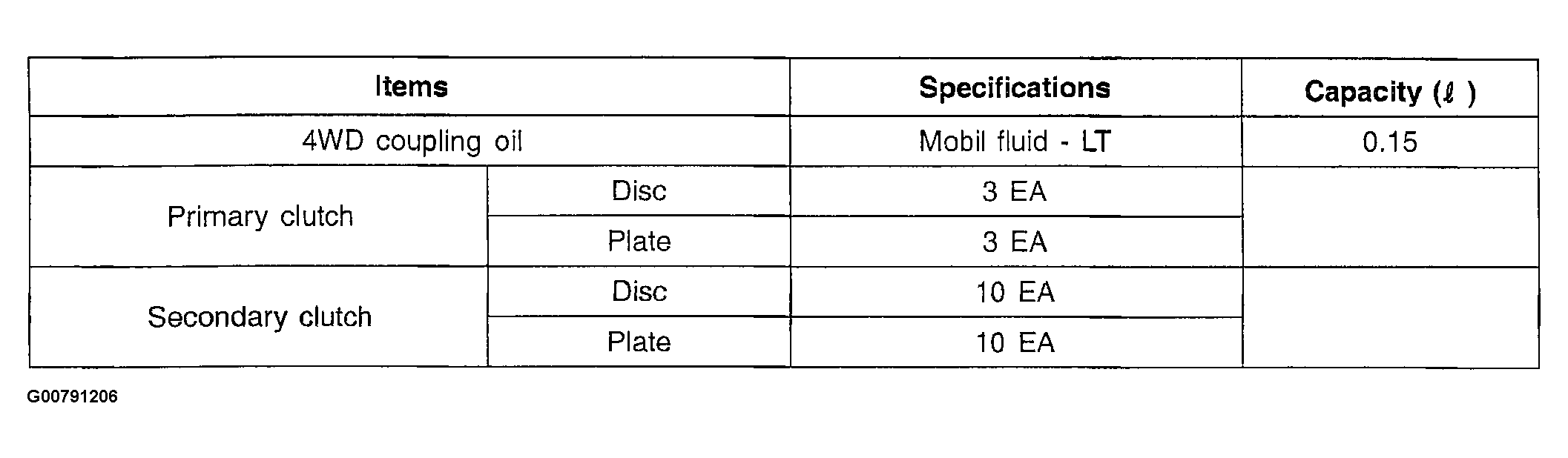

Fig 2: Coupling Fluid Specifications

G00791206

Courtesy of HYUNDAI MOTOR CO.
